Technical Data Sheet
●	Center Frequency(F0)	2065MHz
●	Pass Band Frequency	2061 ~ 2069MHz
●	Pass Band Insertion Loss	≤1.3dB
●	Pass Band Ripple	≤0.2dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥40dB @ DC ~ 2046MHz	≥40dB @ 2084 ~ 6000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

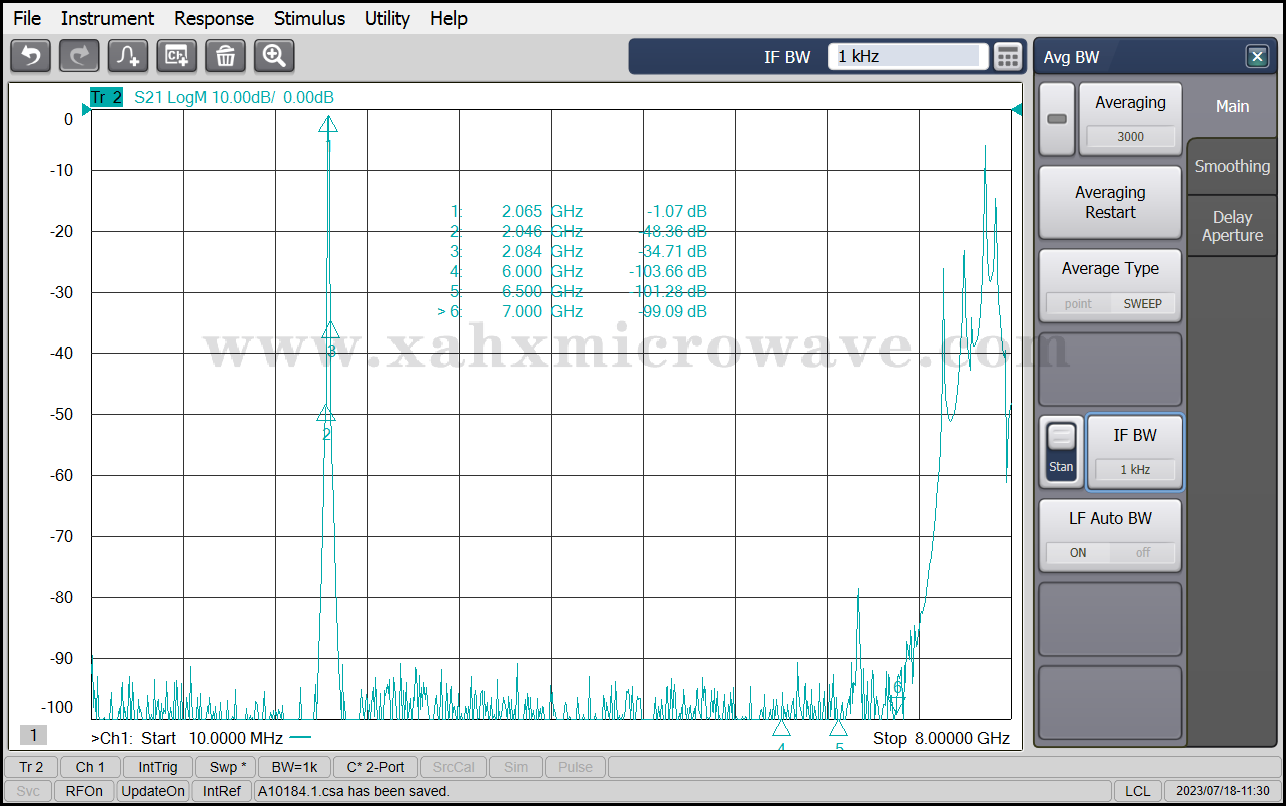

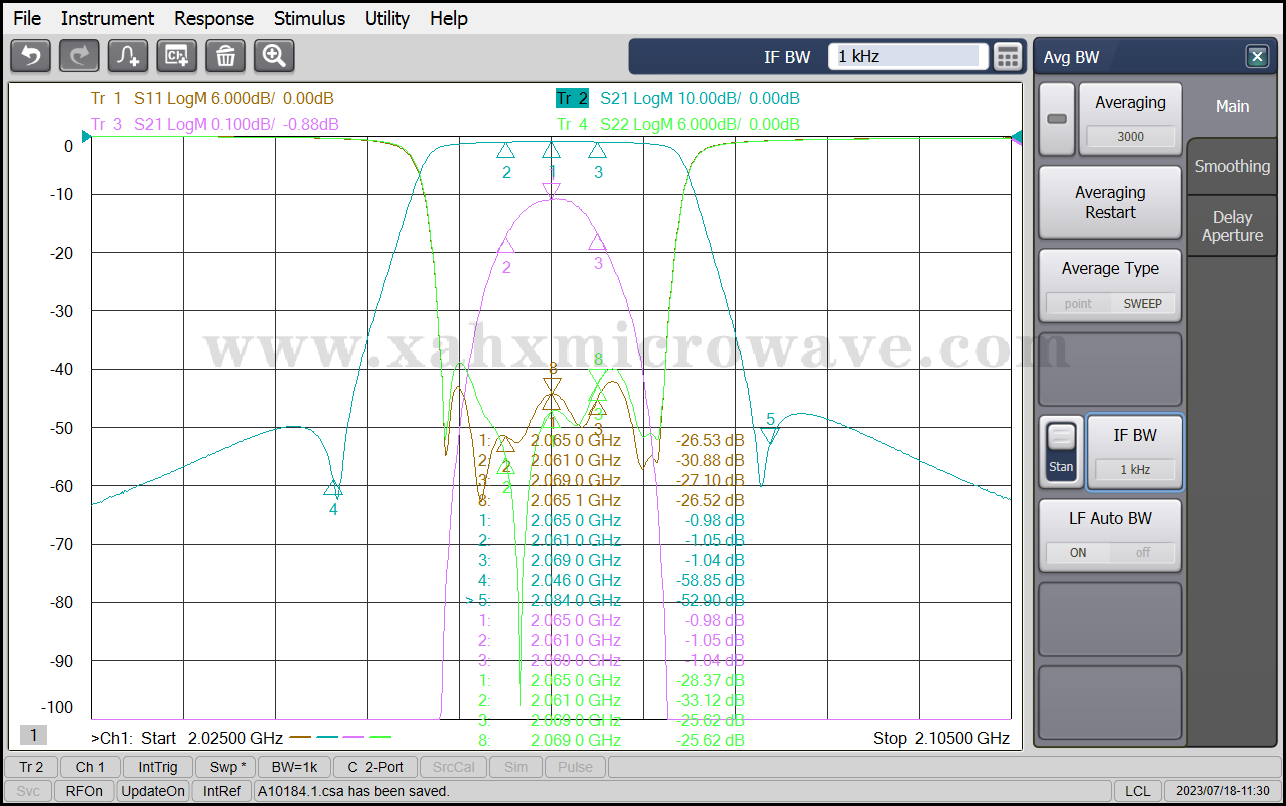

Test Curve
