Technical Data Sheet
●	Center Frequency(F0)	1330MHz
●	Pass Band Frequency	1300 ~ 1360MHz
●	Pass Band Insertion Loss	≤0.8dB
●	Pass Band Ripple	≤0.4dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥40dB @ DC ~ 1260MHz	≥40dB @ 1400 ~ 3000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

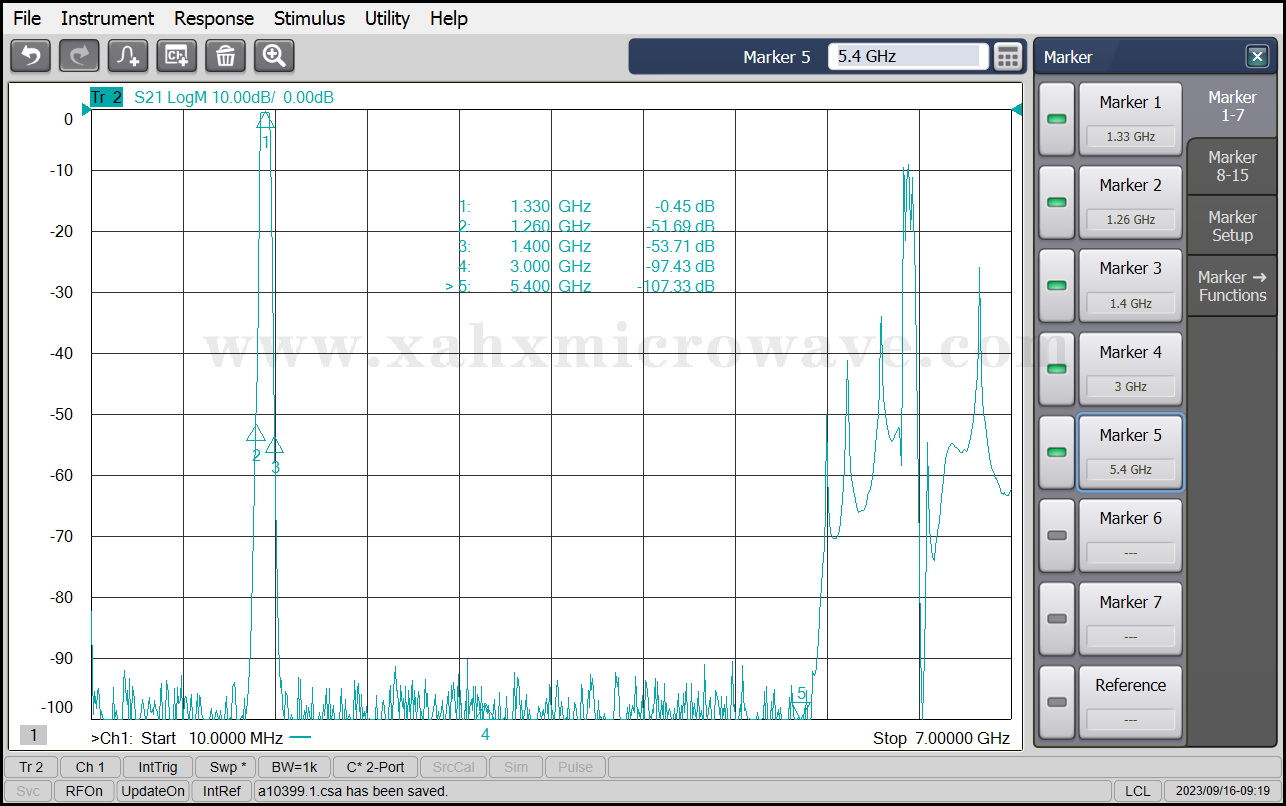

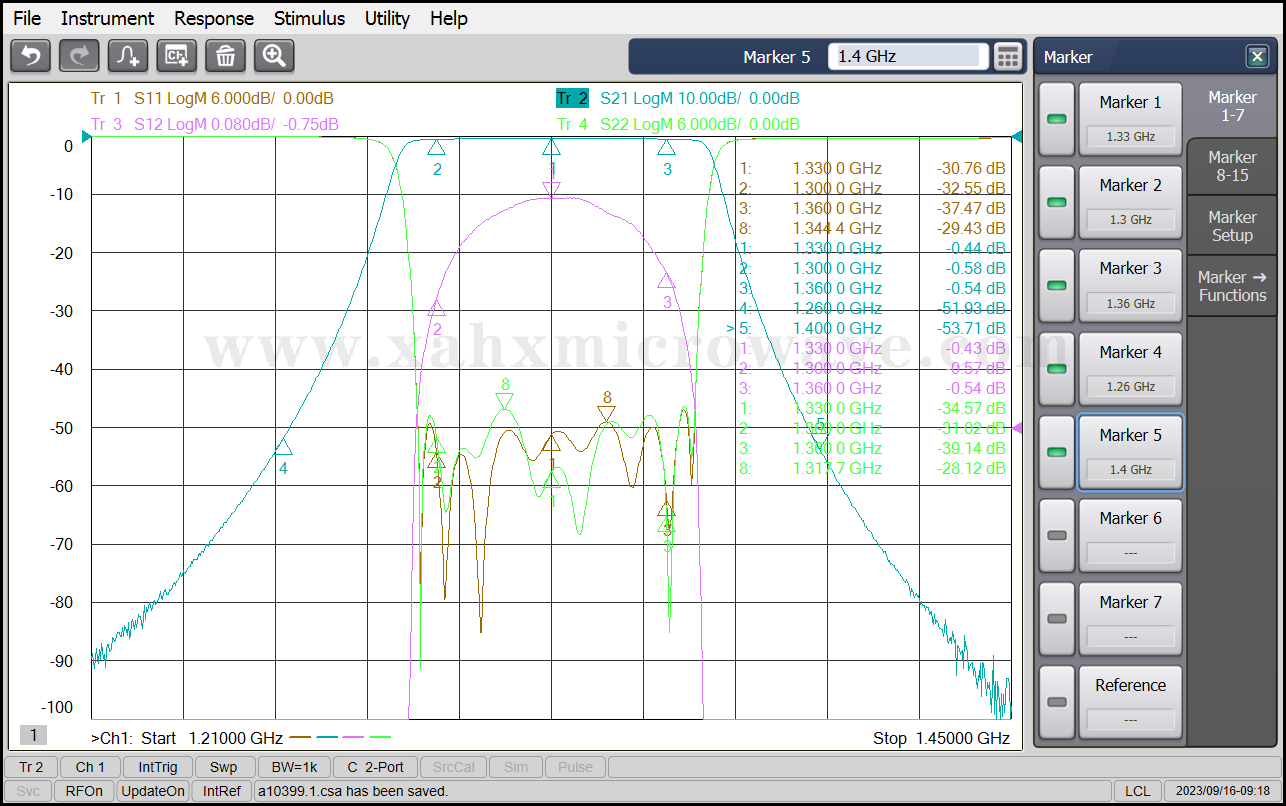

Test Curve
