Technical Data Sheet
●	Center Frequency(F0)	9.5GHz
●	Pass Band Frequency	9.0 ~ 10GHz
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band Ripple	≤0.25dB
●	Pass Band VSWR	≤1.15:1
●	Stop Band Rejection	≥45dB @ DC ~ 8.5GHz	≥45dB @ 10.5 ~ 23.5GHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

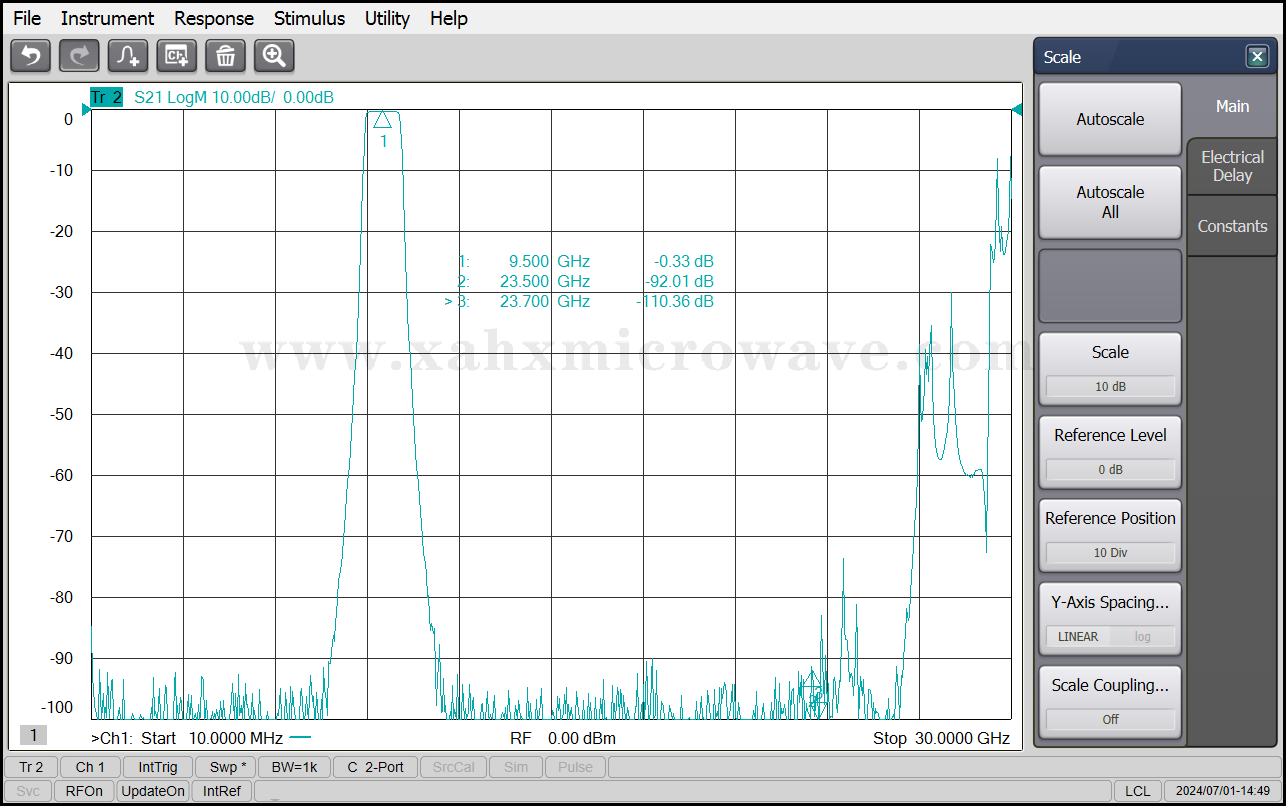

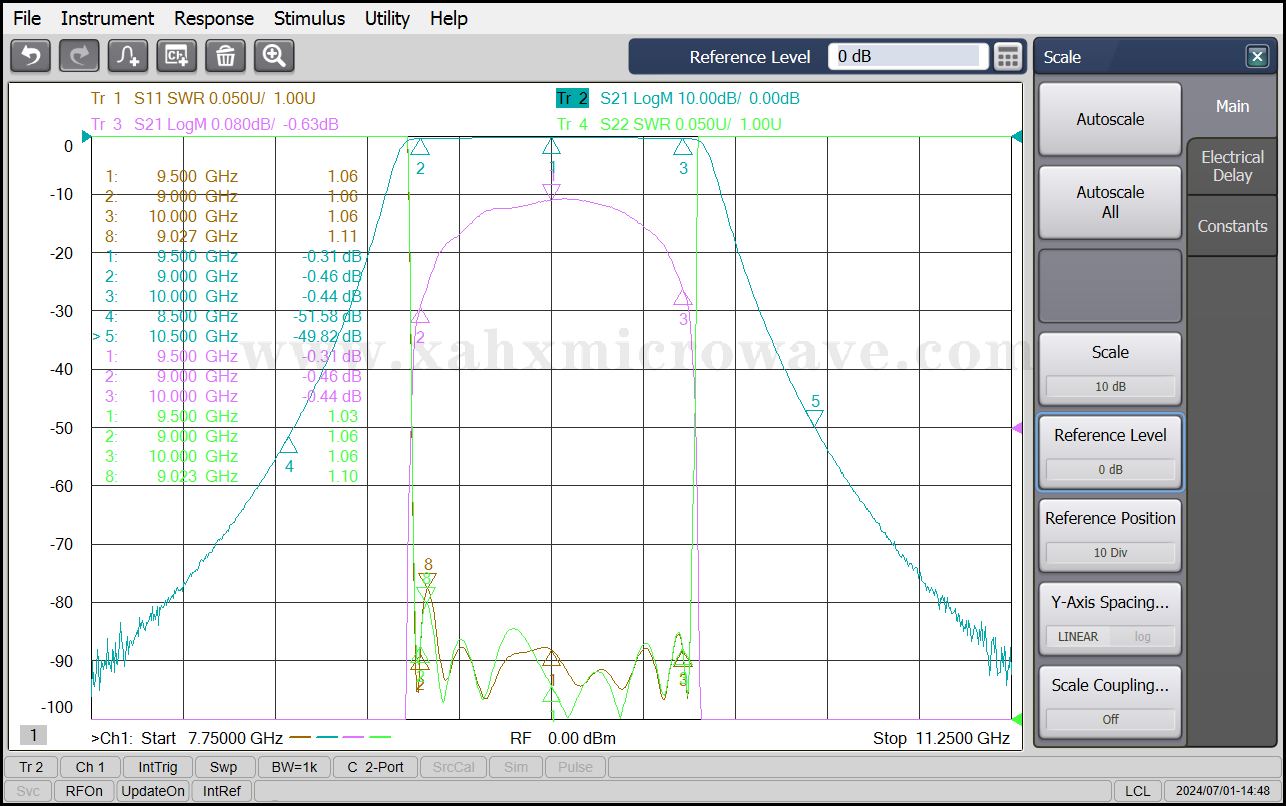

Test Curve
