Technical Data Sheet
●	Model	HXLBQ-DTA813	HXLBQ-DTA812	HXLBQ-DTA811	HXLBQ-DTA810
●	Center Frequency(F0)	4900MHz	4800MHz	4700MHz	4600MHz
●	Pass Band Frequency	4884 ~ 4916MHz	4784 ~ 4816MHz	4684 ~ 4716MHz	4584 ~ 4616MHz
●	Pass Band Insertion Loss	≤1.5dB	≤1.5dB	≤1.5dB	≤1.5dB
●	Pass Band Ripple	≤0.5dB	≤0.5dB	≤0.5dB	≤0.5dB
●	Pass Band Return Loss	≥23dB	≥23dB	≥23dB	≥23dB
●	Stop Band Rejection	≥50dB@ DC-4838MHz	≥50dB@ DC-4738MHz	≥50dB@ DC-4638MHz	≥50dB@ DC-4538MHz
		≥35dB@4838-4850MHz	≥35dB@ 4738 -4750MHz	≥35dB@ 4638-4650MHz	≥35dB@ 4538-4550MHz
		≥35dB@4950-4962MHz	≥35dB@ 4850-4862MHz	≥35dB@ 4750-4762MHz	≥35dB@ 4650-4662MHz
		≥50dB@4962-10000MHz	≥50dB@4862-10000MHz	≥50dB@4762- 10000MHz	≥50dB@4662-10000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

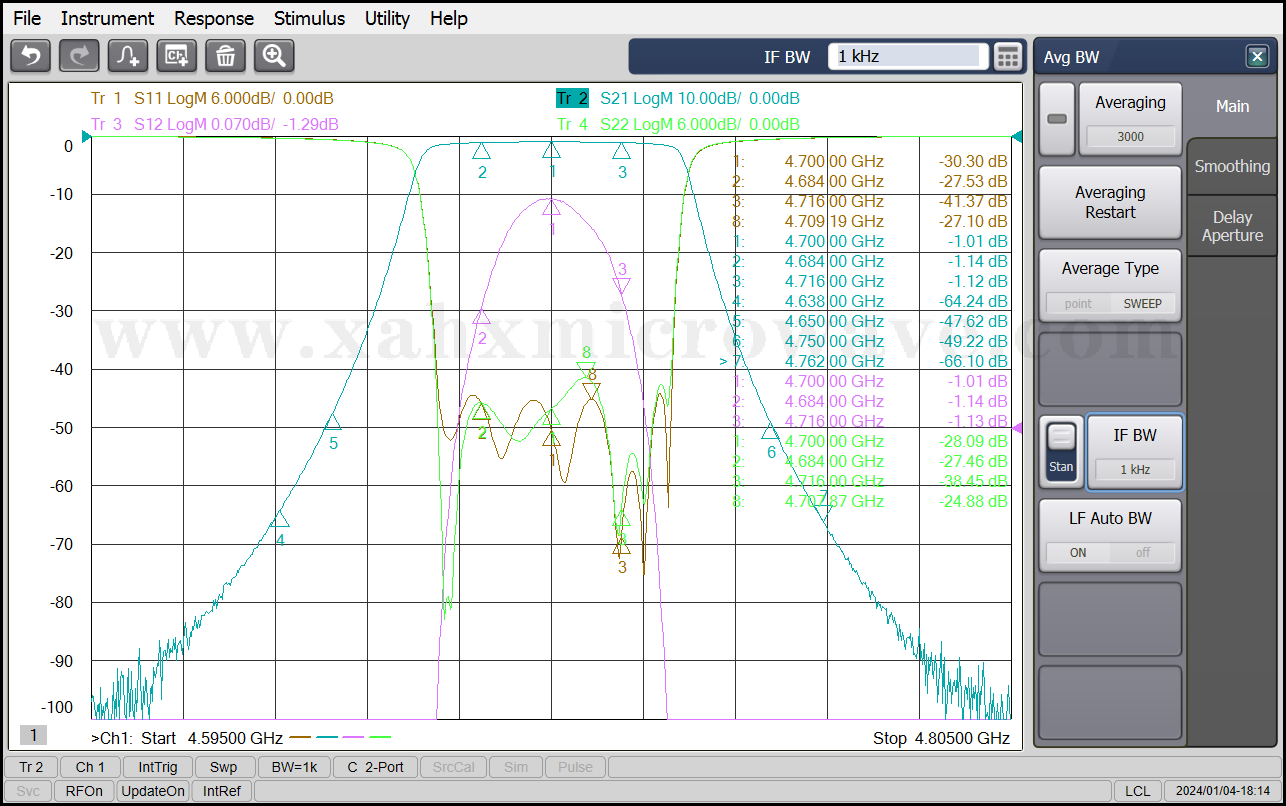

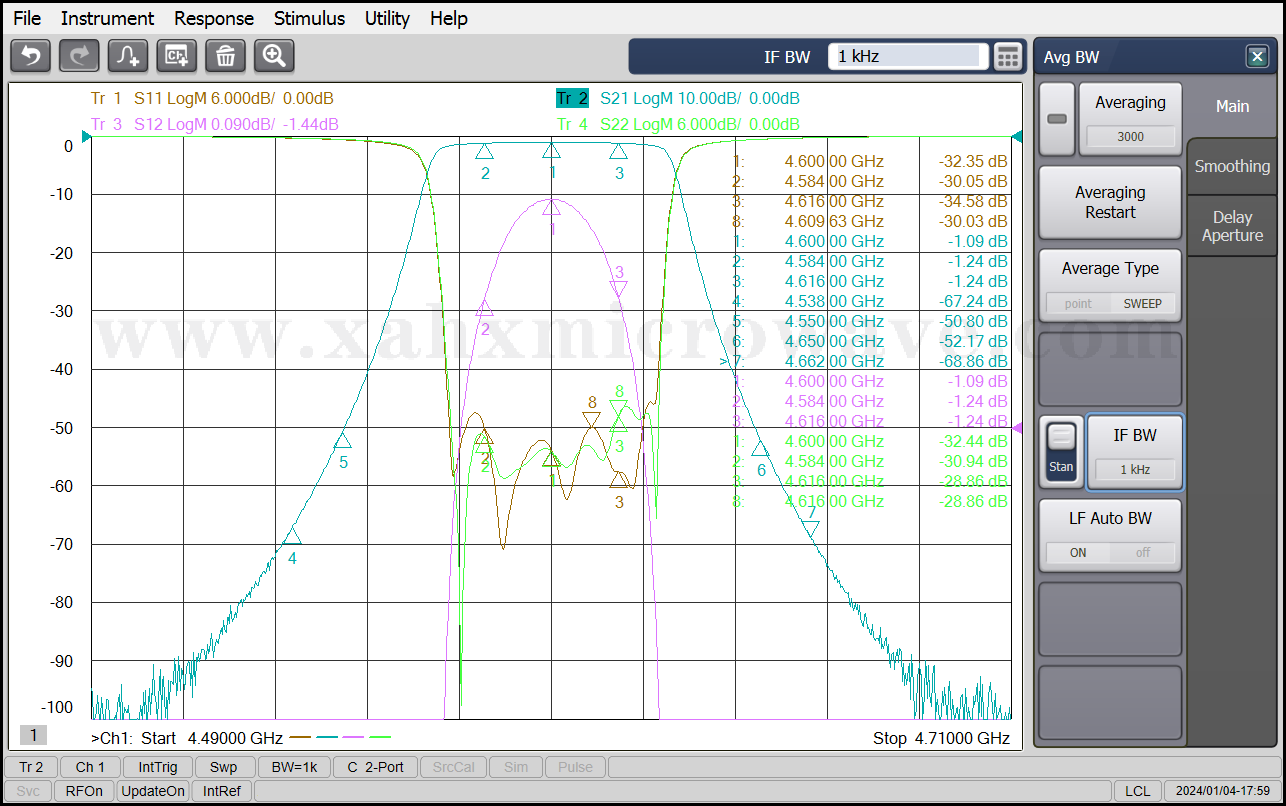

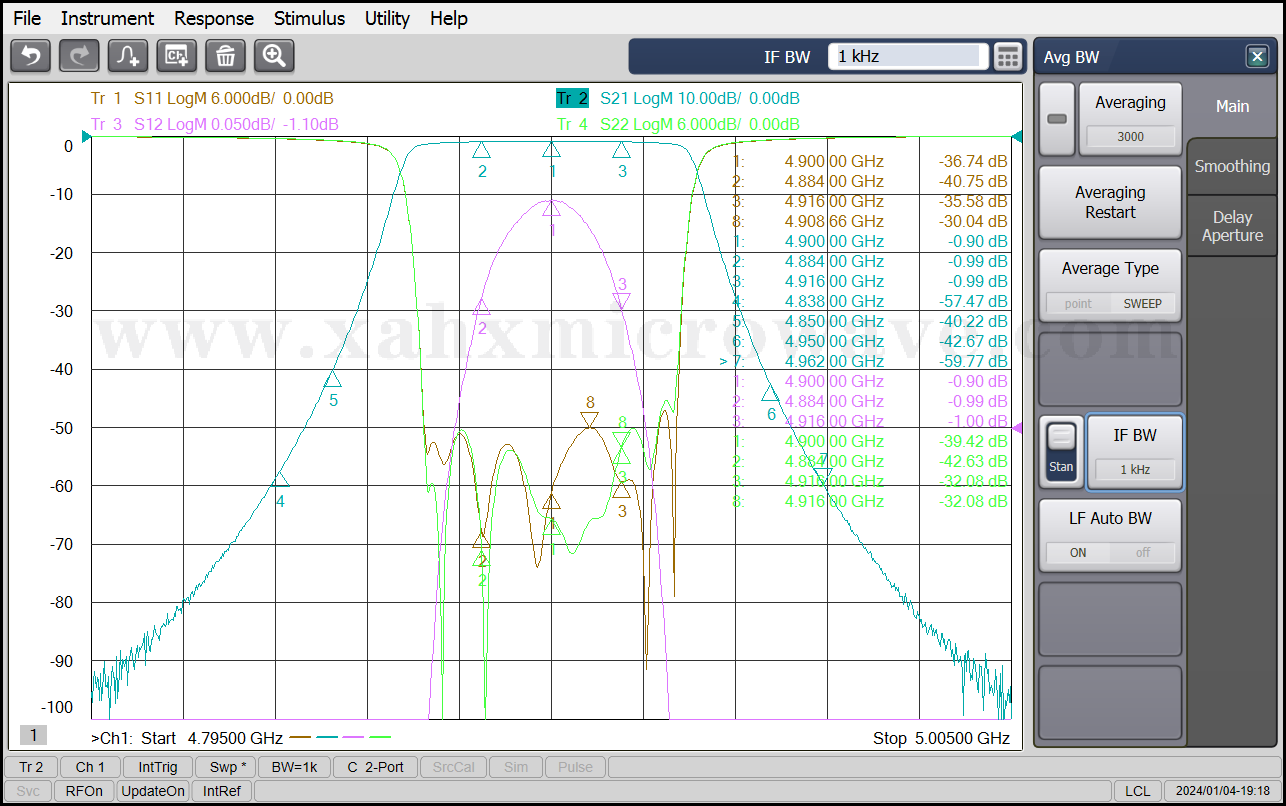

Test Curve
