Technical Data Sheet
●	Center Frequency(F0)	5150MHz
●	Pass Band Frequency	5050 ~ 5250MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band VSWR	≤1.4:1
●	Stop Band Rejection	≥60dB @ DC ~ 4800MHz	≥45dB @ 5300 ~ 5500MHz
		≥45dB @ 4800 ~ 5000MHz	≥60dB @ 5500 ~ 13000MHz
●	Impedance	50 Ohms
●	Power Handling	40W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-40℃ ~ +70℃

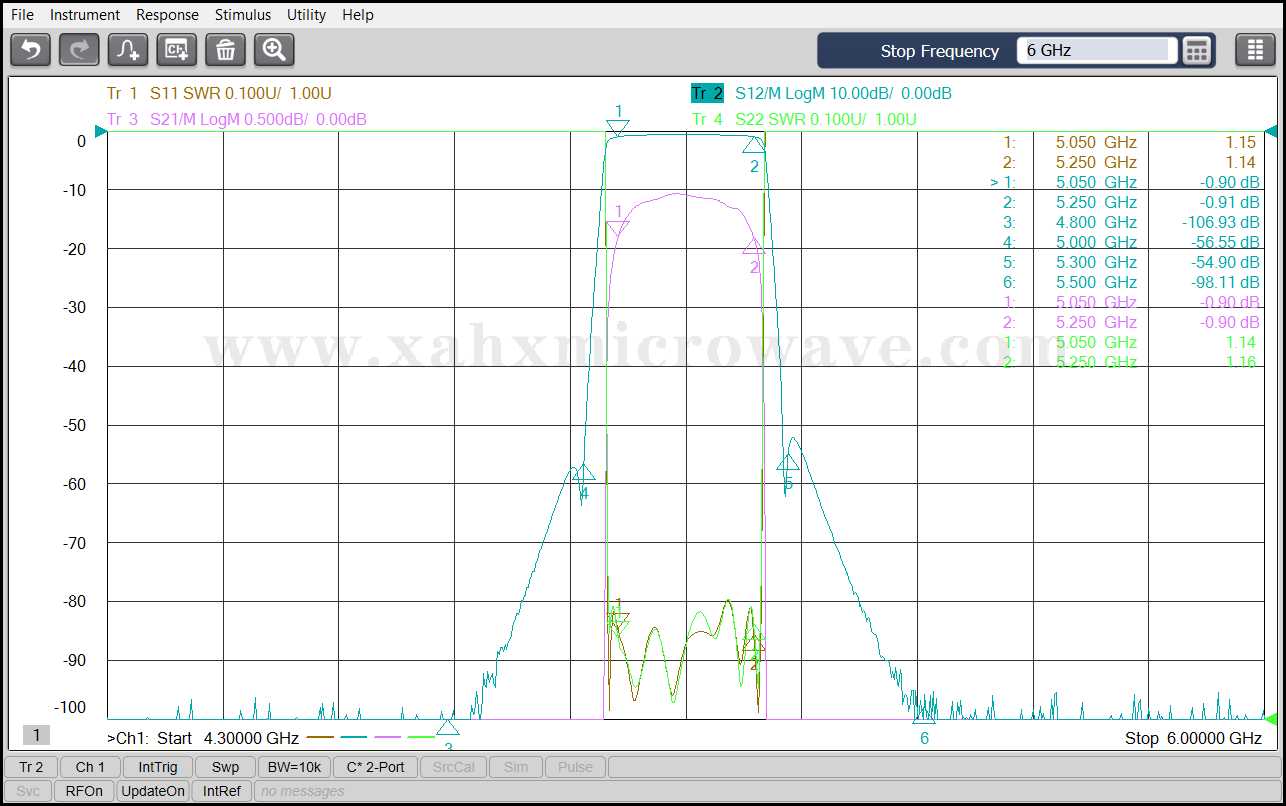

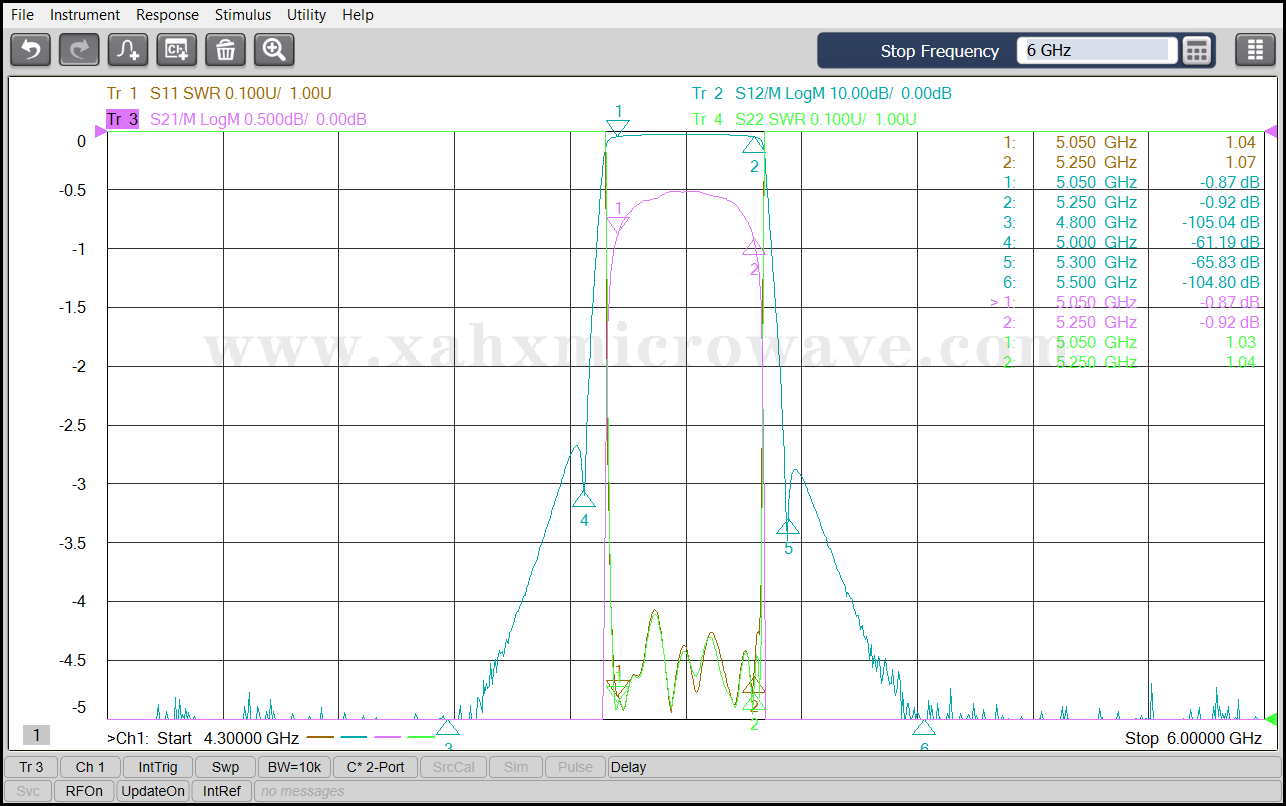

Test Curve
