| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2840MHz | |
| ● | 3.0dB Bandwidth | 520MHz (2580 ~ 3100MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 2840MHz | |
| ● | Return Loss | ≥23dB @ 2640 ~ 3040MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2240MHz | ≥70dB @ 3300 ~ 3340MHz |
| ≥55dB @ 2240 ~ 2380MHz | ≥80dB @ 3340 ~ 8000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

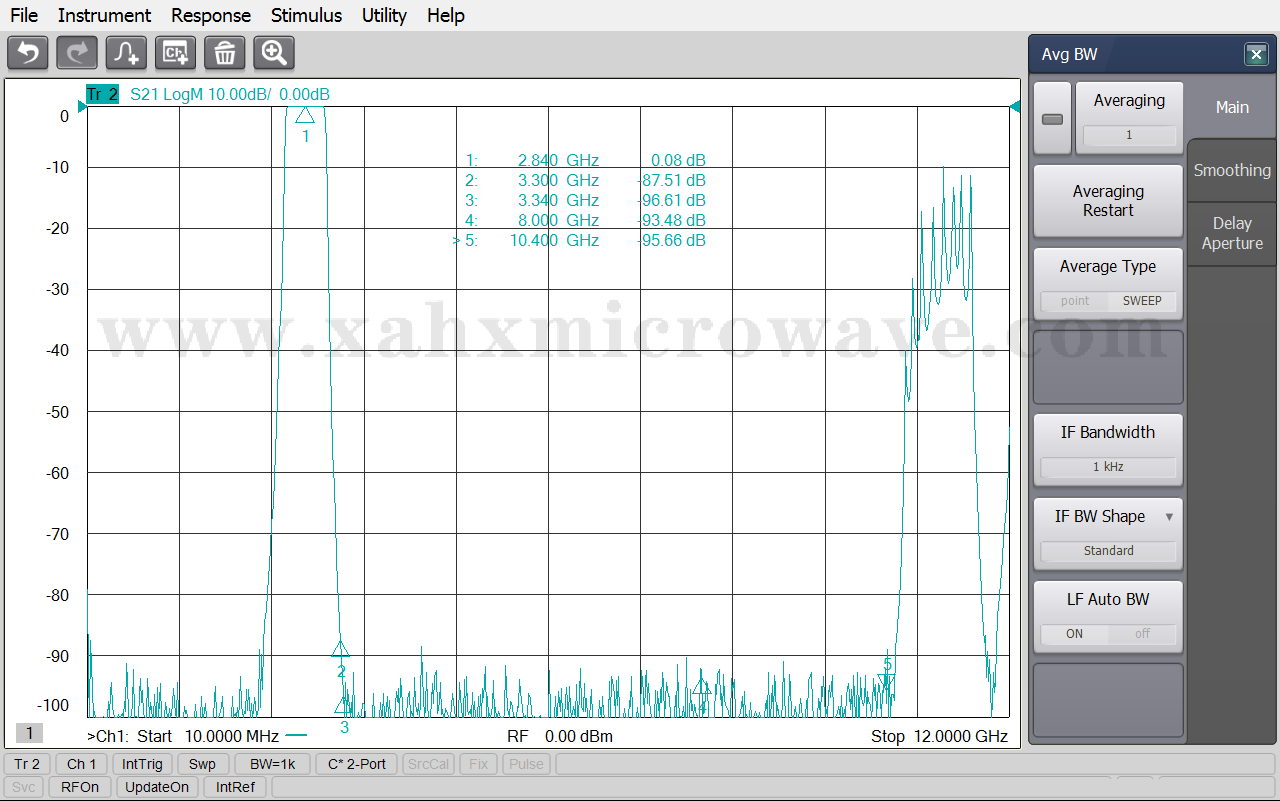

| Test Curve | |||
