| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 10200MHz | |
| ● | 3.0dB Bandwidth | 1000MHz (9700 ~ 10700MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 10200MHz | |
| ● | Return Loss | ≥23dB @ 9800 ~ 10600MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 9000MHz | ≥55dB @ 11100 ~ 11400MHz |
| ≥55dB @ 9000 ~ 9300MHz | ≥80dB @ 11400 ~ 22000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

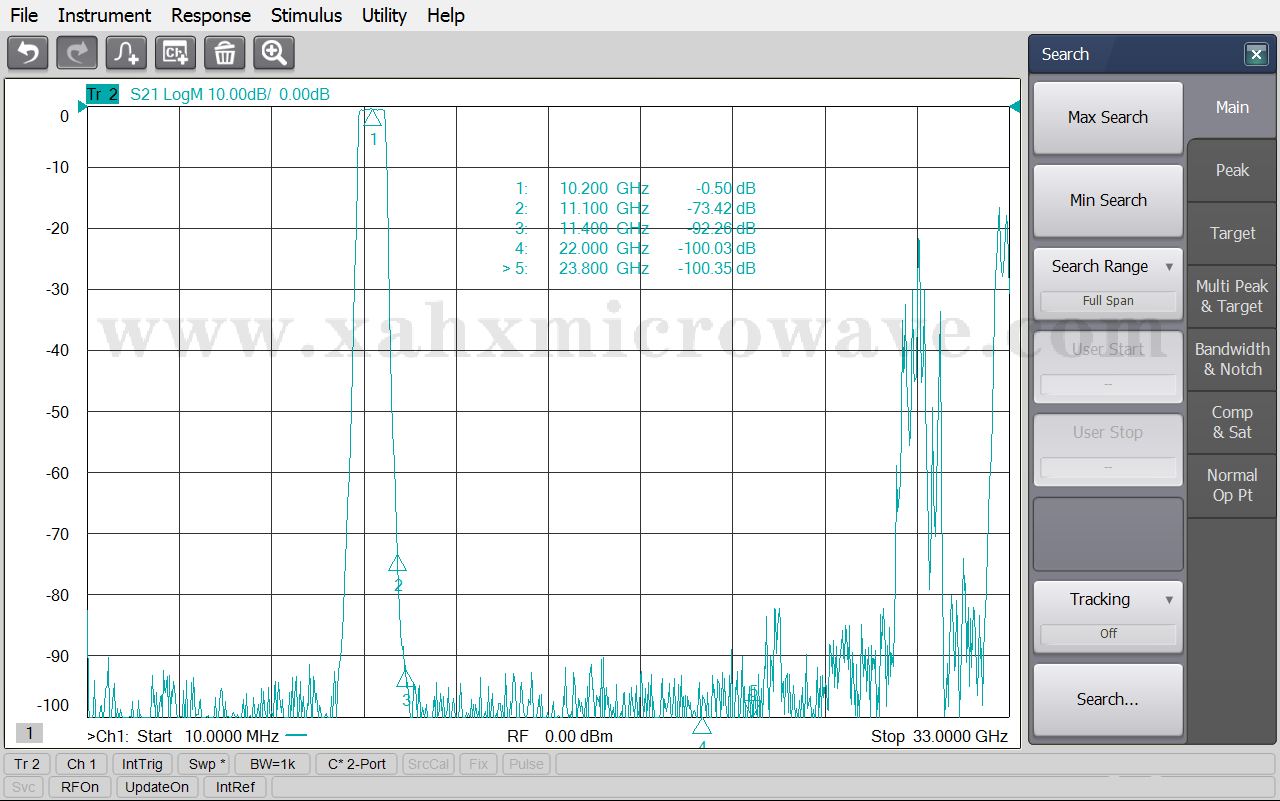

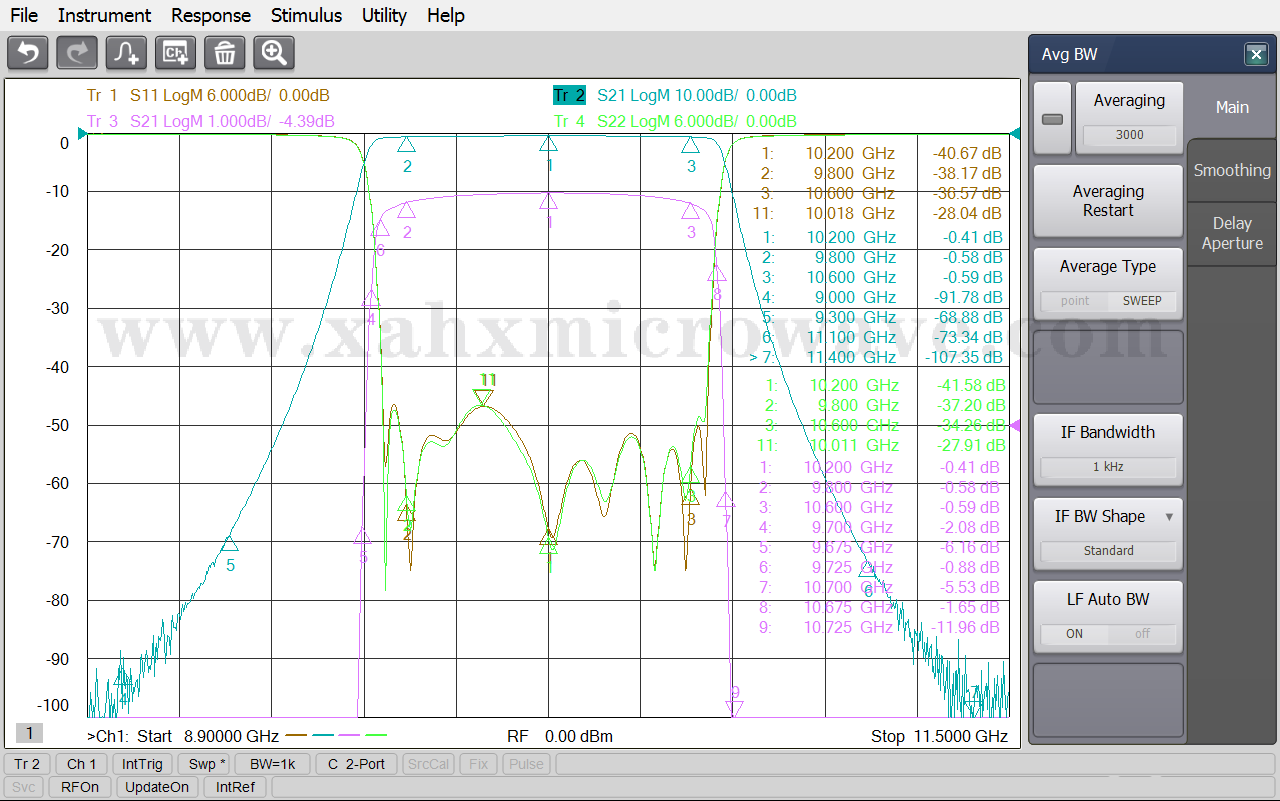

| Test Curve | |||
