| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5500MHz | |
| ● | 3.0dB Bandwidth | 1200MHz (4900 ~ 6100MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 5500MHz | |
| ● | Return Loss | ≥20dB @ 5000 ~ 6000MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 4400MHz | ≥40dB @ 6300 ~ 6600MHz |
| ≥40dB @ 4400 ~ 4700MHz | ≥80dB @ 6600 ~ 13000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

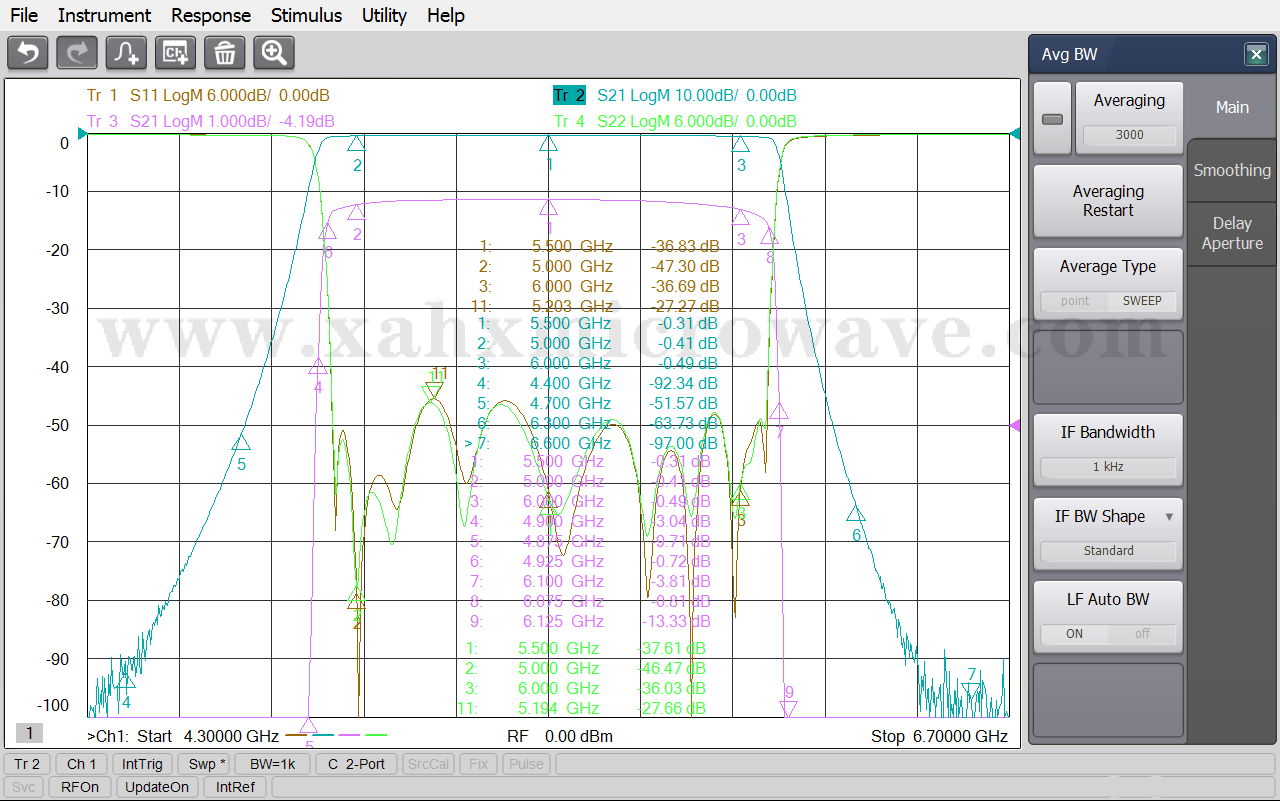

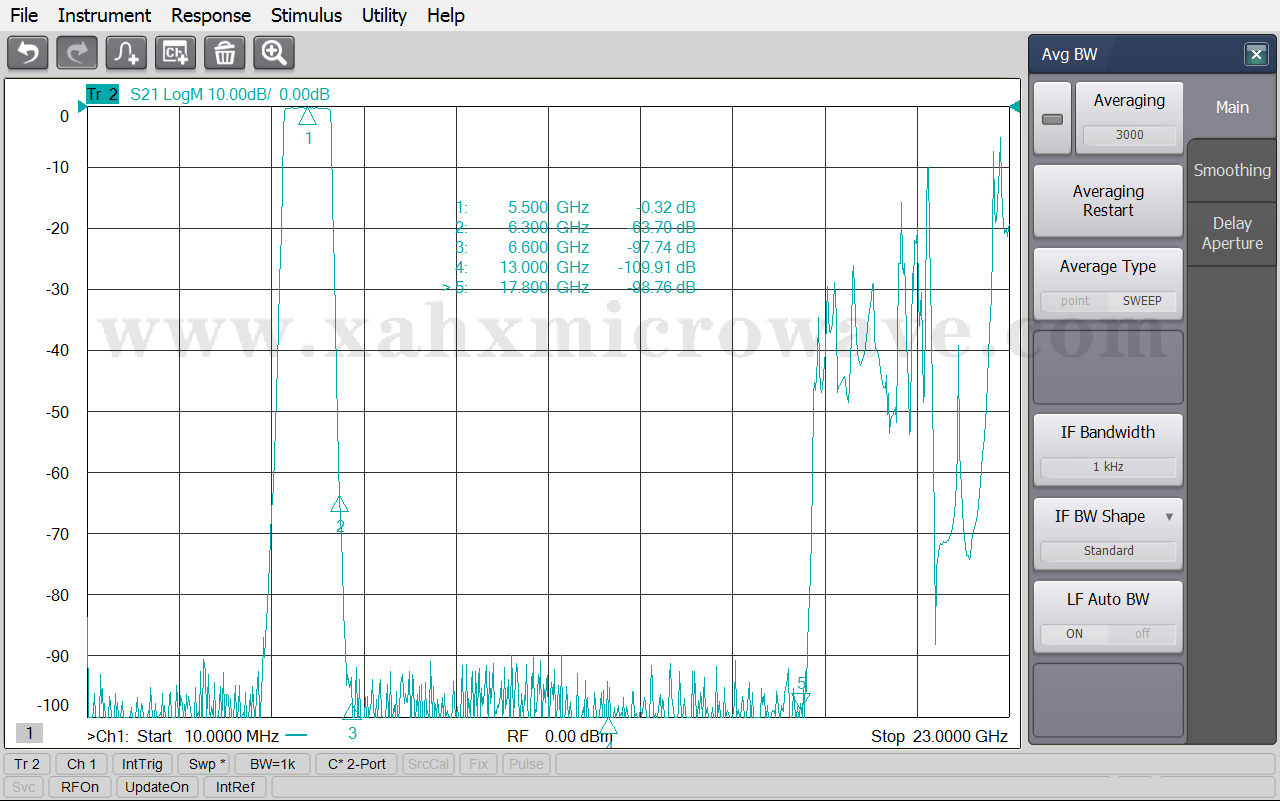

| Test Curve | |||
