Technical Data Sheet
●	Center Frequency(F0)	2725MHz
●	Pass Band Frequency	2600 ~ 2850MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.7dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 2350MHz	≥80dB @ 3050 ~ 8500MHz
		≥70dB @ 2350 ~ 2400MHz
●	Impedance	50 Ohms
●	Power Handling	30W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

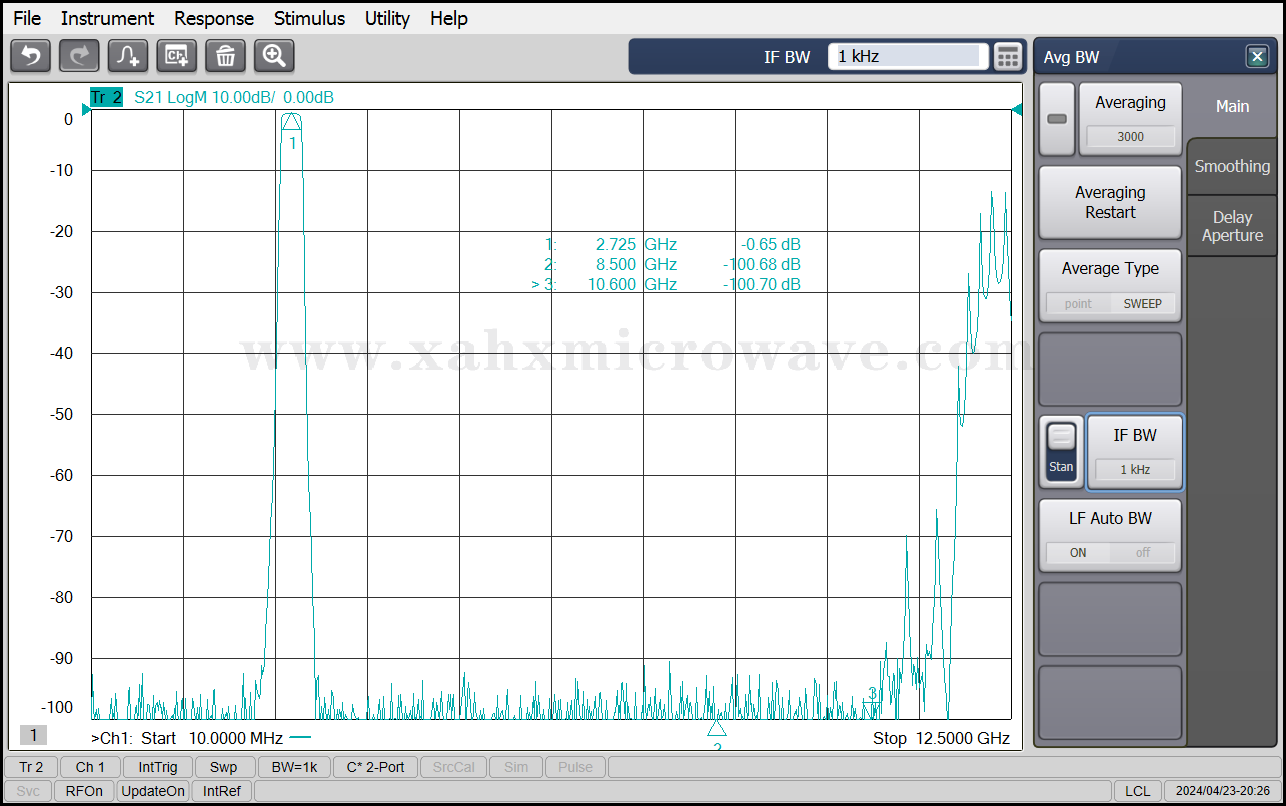

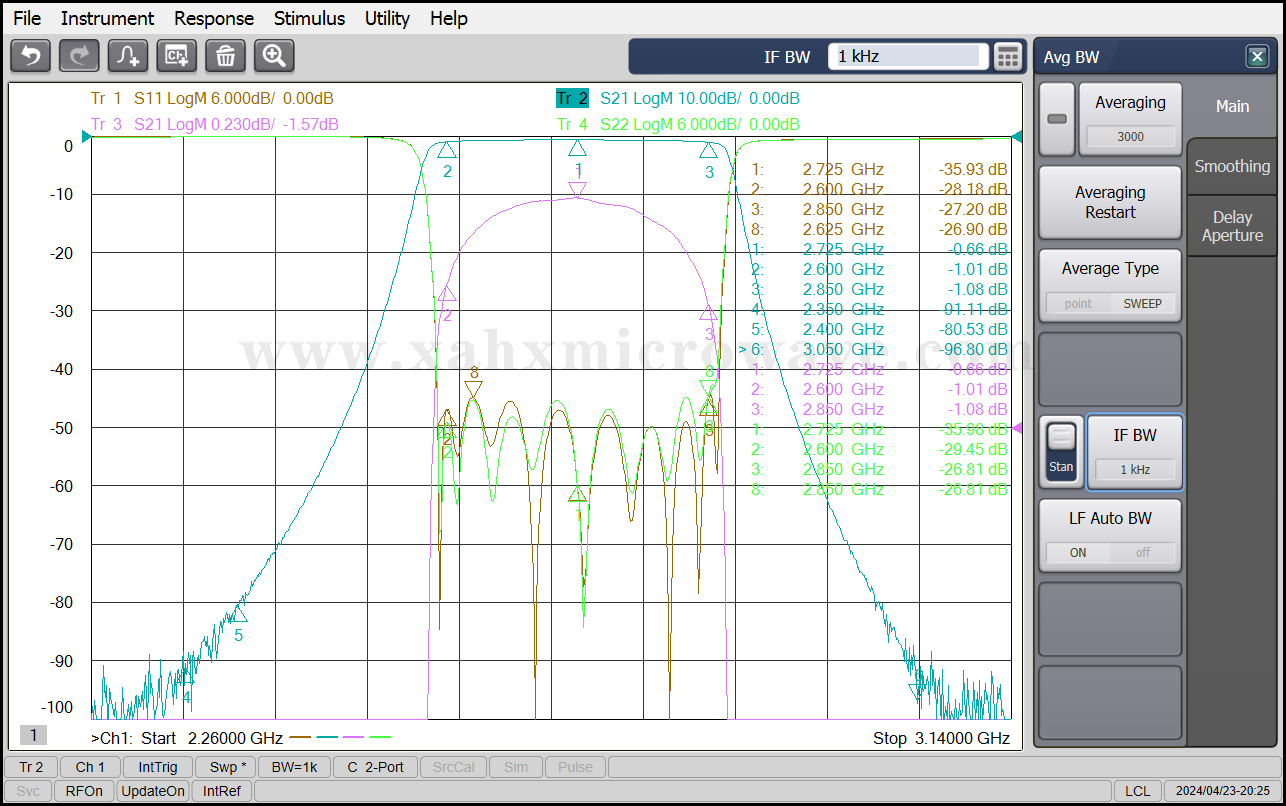

Test Curve
