Technical Data Sheet
●	Center Frequency(F0)	2150MHz
●	Pass Band Frequency	2100 ~ 2200MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.75dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥40dB @ DC ~ 2075MHz	≥40dB @ 2225 ~ 5000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	N-Male / N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

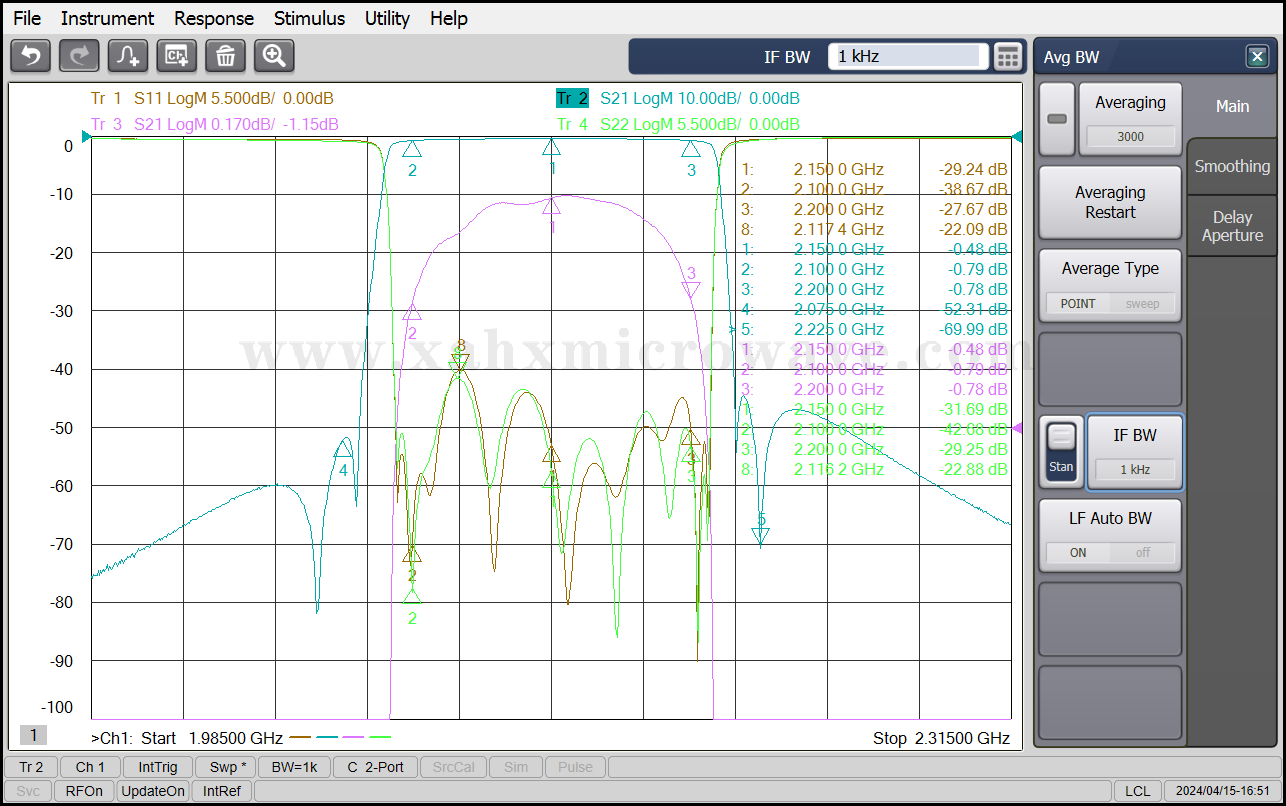

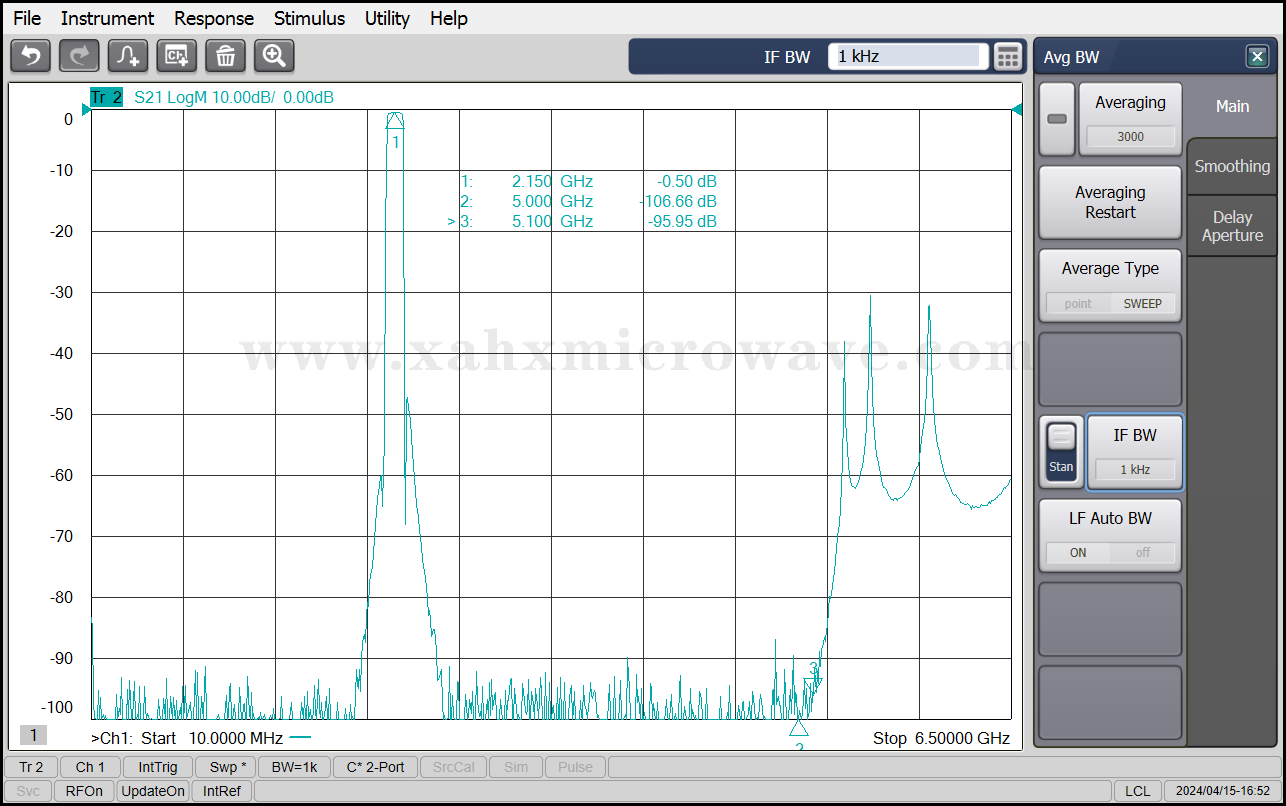

Test Curve
