Technical Data Sheet
●	Center Frequency(F0)	5.0GHz
●	Pass Band Bandwidth	1000MHz (4.5 ~ 5.5GHz)
●	Pass Band Insertion Loss	≤0.4dB @ 5.0GHz
		≤0.6dB @ 4.5 ~ 5.5GHz
●	Pass Band Ripple	≤0.3dB
●	Pass Band VSWR	≤1.15:1
●	Stop Band Attenuation	≥90dB @ DC ~ 3.2GHz	≥60dB @ 6.0 ~ 6.4GHz
		≥50dB @ 3.2 ~ 4.0GHz	≥90dB @ 6.4 ~ 16.5GHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

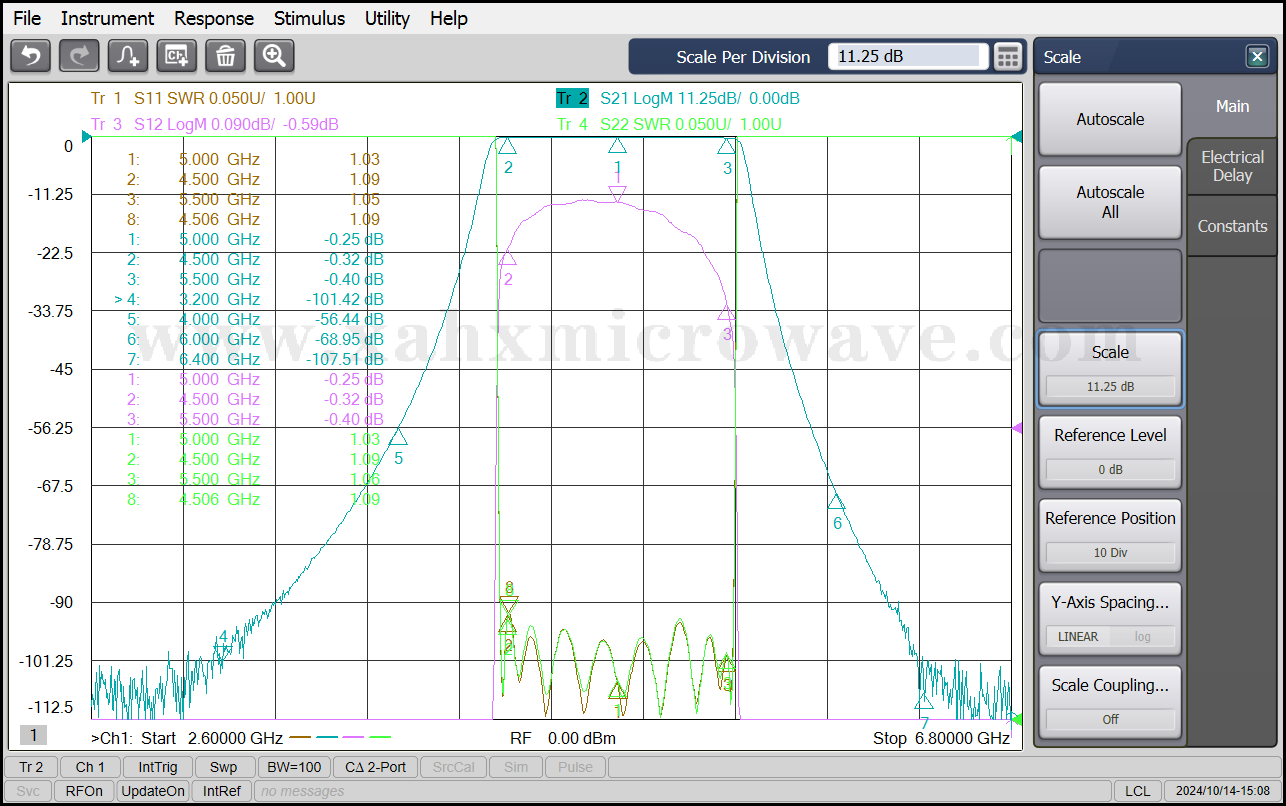

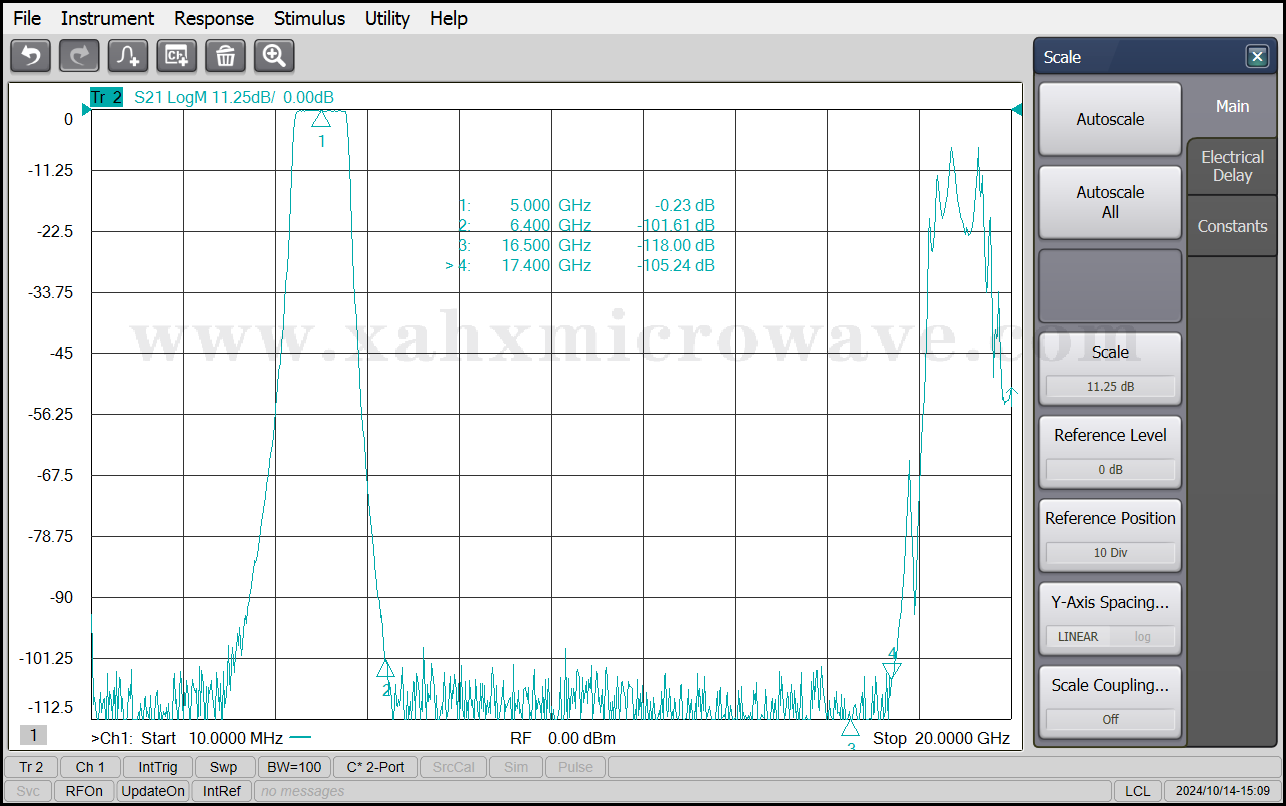

Test Curve
