Technical Data Sheet
●	Center Frequency(F0)	1671.5MHz
●	Pass Band Frequency	1666 ~ 1677MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥40dB @ DC ~ 1651MHz	≥40dB @ 1692 ~ 4000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-10℃ ~ +50℃

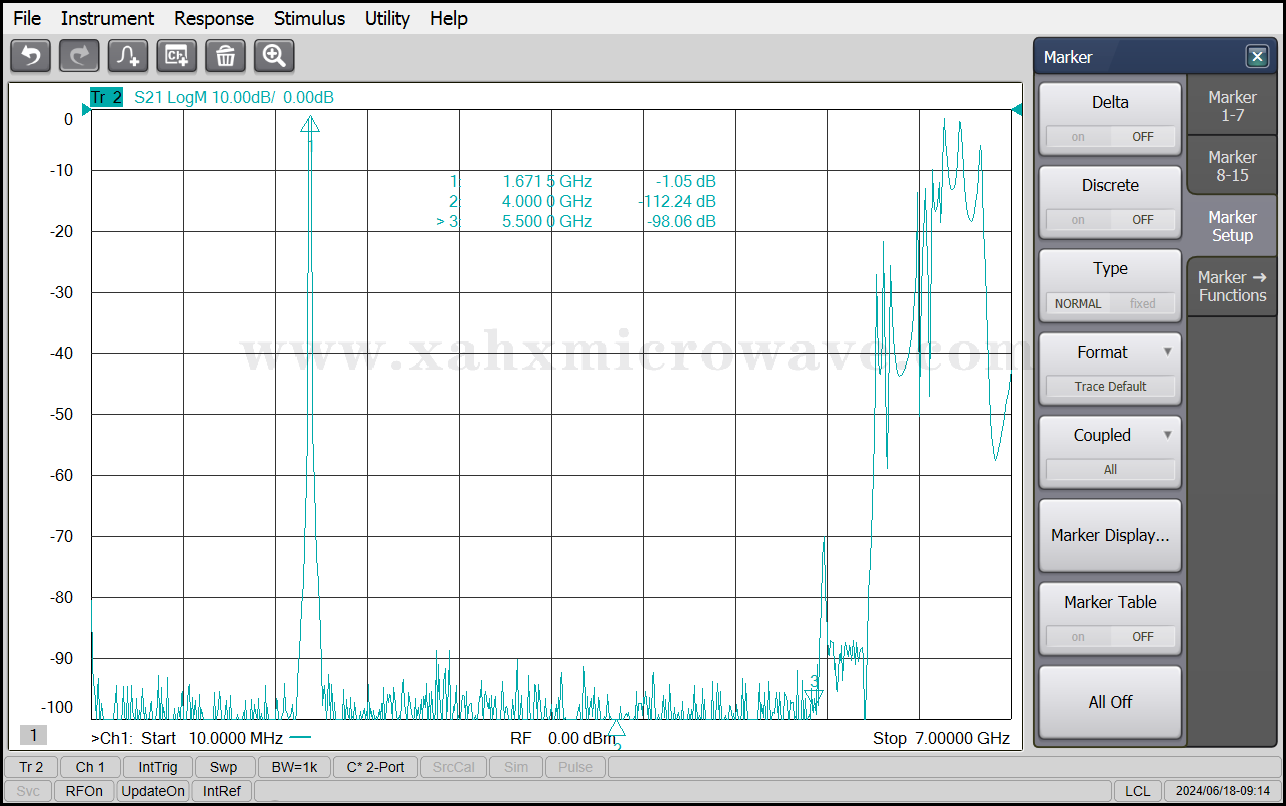

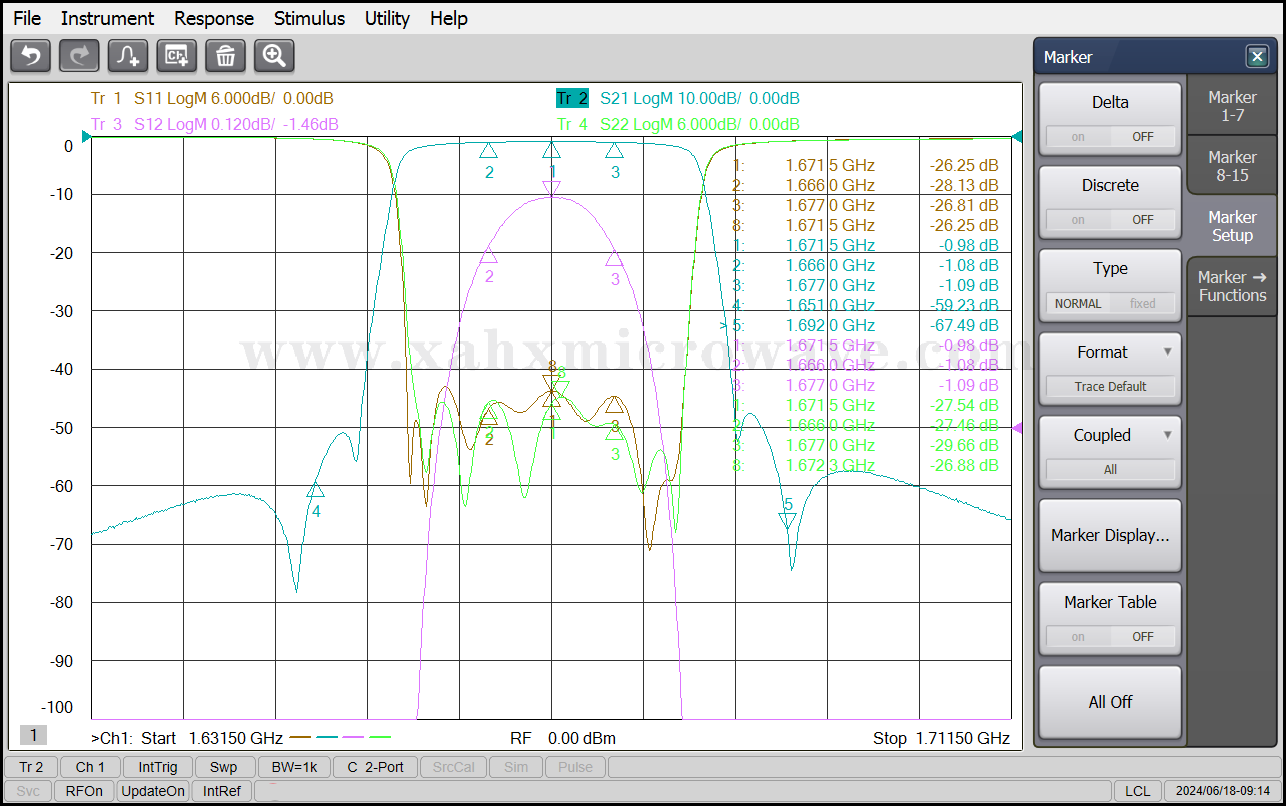

Test Curve
