| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 6000MHz |
| ● | 3dB Bandwidth | 20MHz Max. (5990 ~ 6010MHz Max.) |
| ● | Insertion Loss @ F0 | ≤1.5dB @ 6000MHz |
| ● | Return Loss @ F0 | ≥18dB @ 6000MHz |
| ● | Stop Band Rejection | ≥40dB @ F0±70MHz (DC ~ 5930MHz , 6070 ~ 9000MHz) |
| ● | Impedance | 50 Ohms |
| ● | Power | 5.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | +15℃ ~ +30℃ |

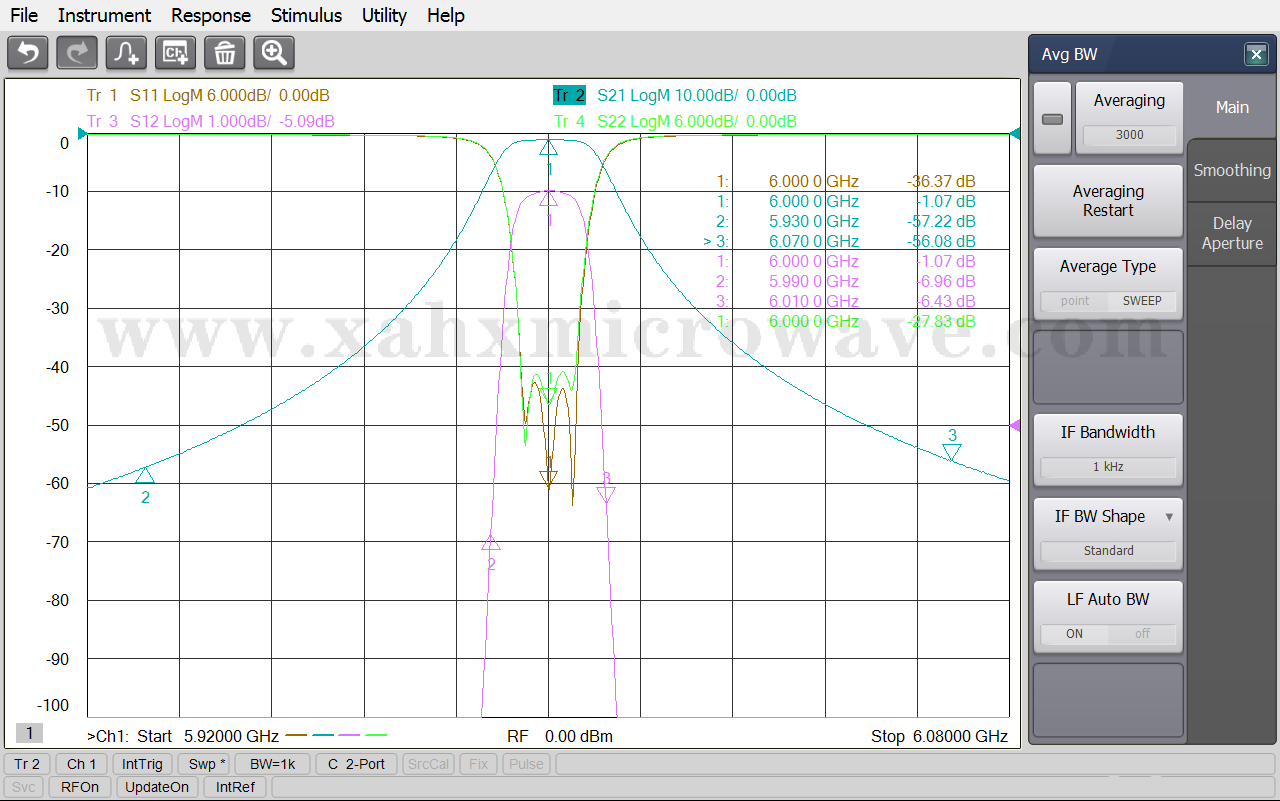

| Test Curve | ||
