| Technical Data Sheet | ||
| ● | Pass Band Frequency | DC ~ 80MHz |
| ● | Pass Band Insertion Loss | ≤1.3dB |
| ● | Pass Band VSWR | ≤1.4:1 |
| ● | Stop Band Rejection | ≥60dB @ 140 ~ 500MHz |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 1.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -30℃ ~ +70℃ |
| ● | Dimensions | 30*18*13mm |

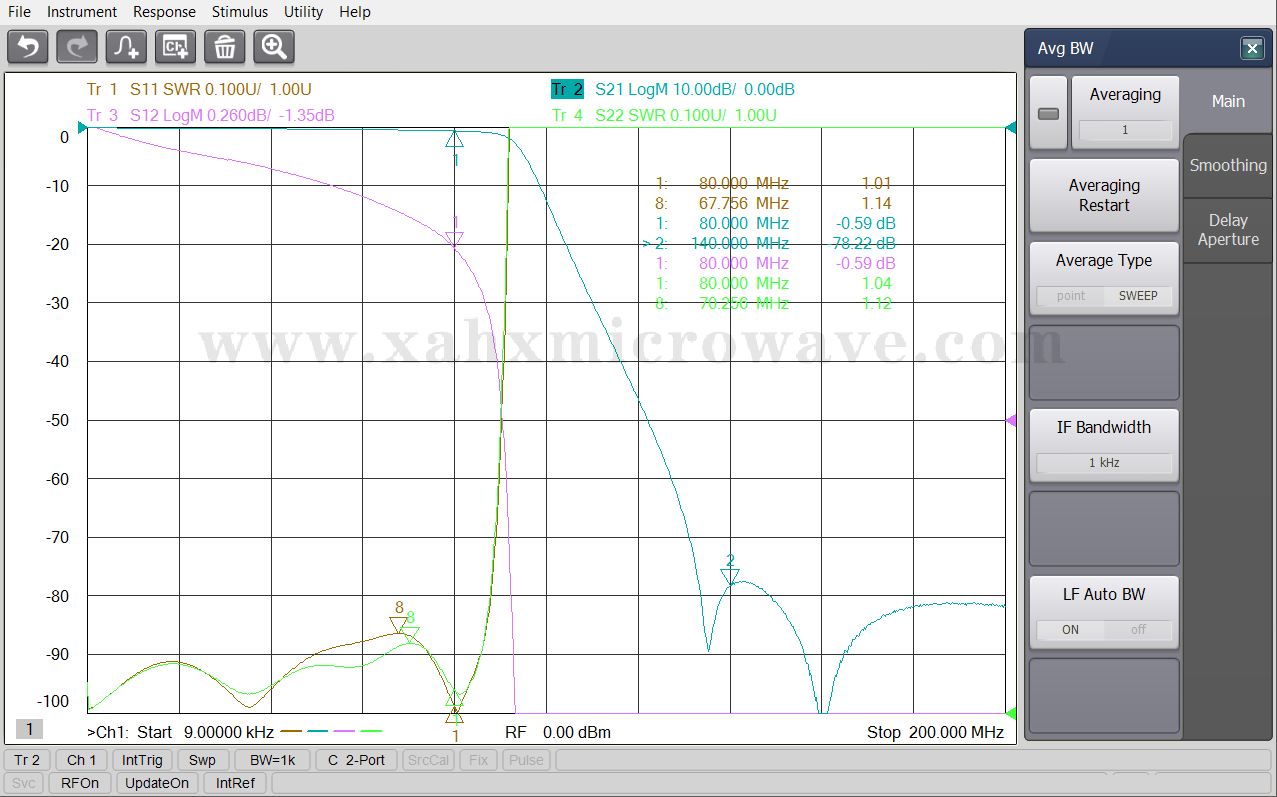

| Test Curve | ||
