| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1890MHz | |
| ● | Pass Band Frequency | 1880 ~ 1900MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.7dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥45dB @ DC ~ 1865MHz | ≥45dB @ 1915~ 6000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 20W Max. | |
| ● | Connectors | N-Male / N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

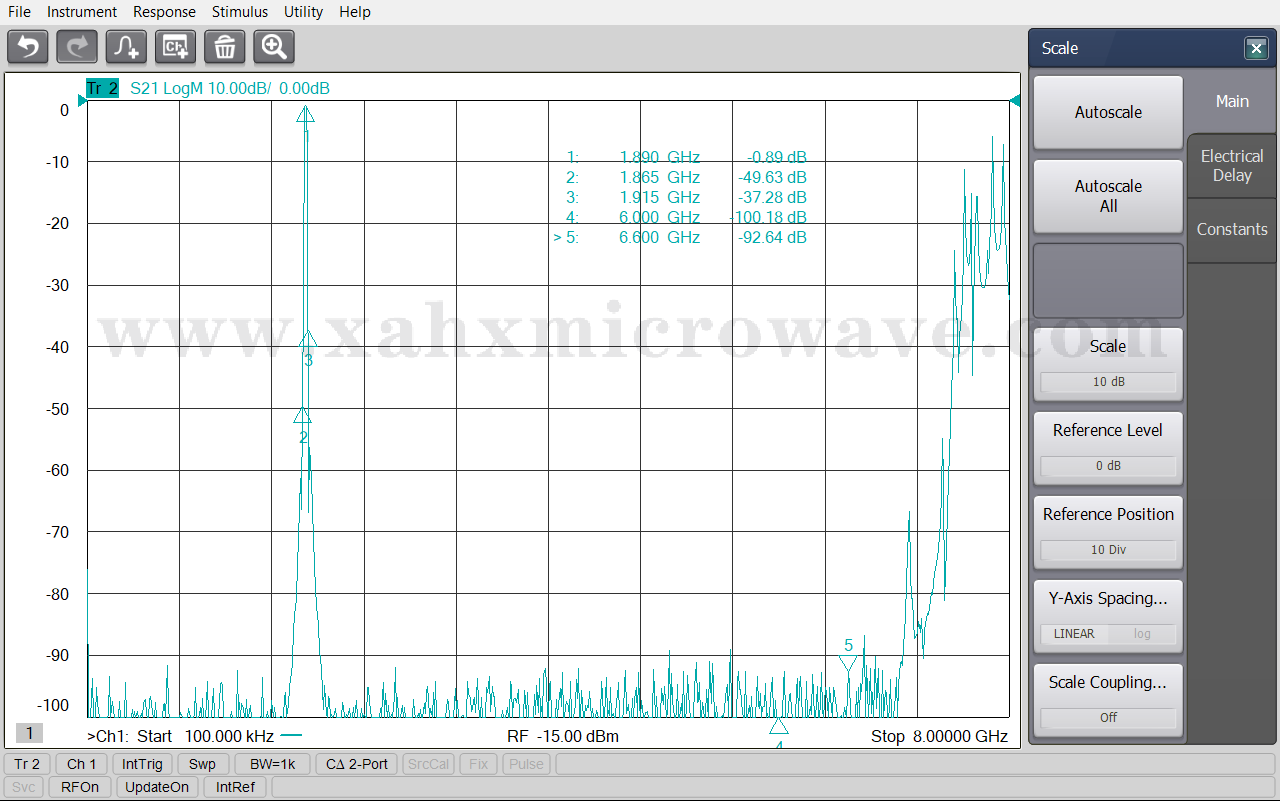

| Test Curve | |||
