Technical Data Sheet
●	Pass Band Frequency	600 ~ 3000MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.8:1
●	Stop Band Rejection	≥40dB @ DC ~ 500MHz
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

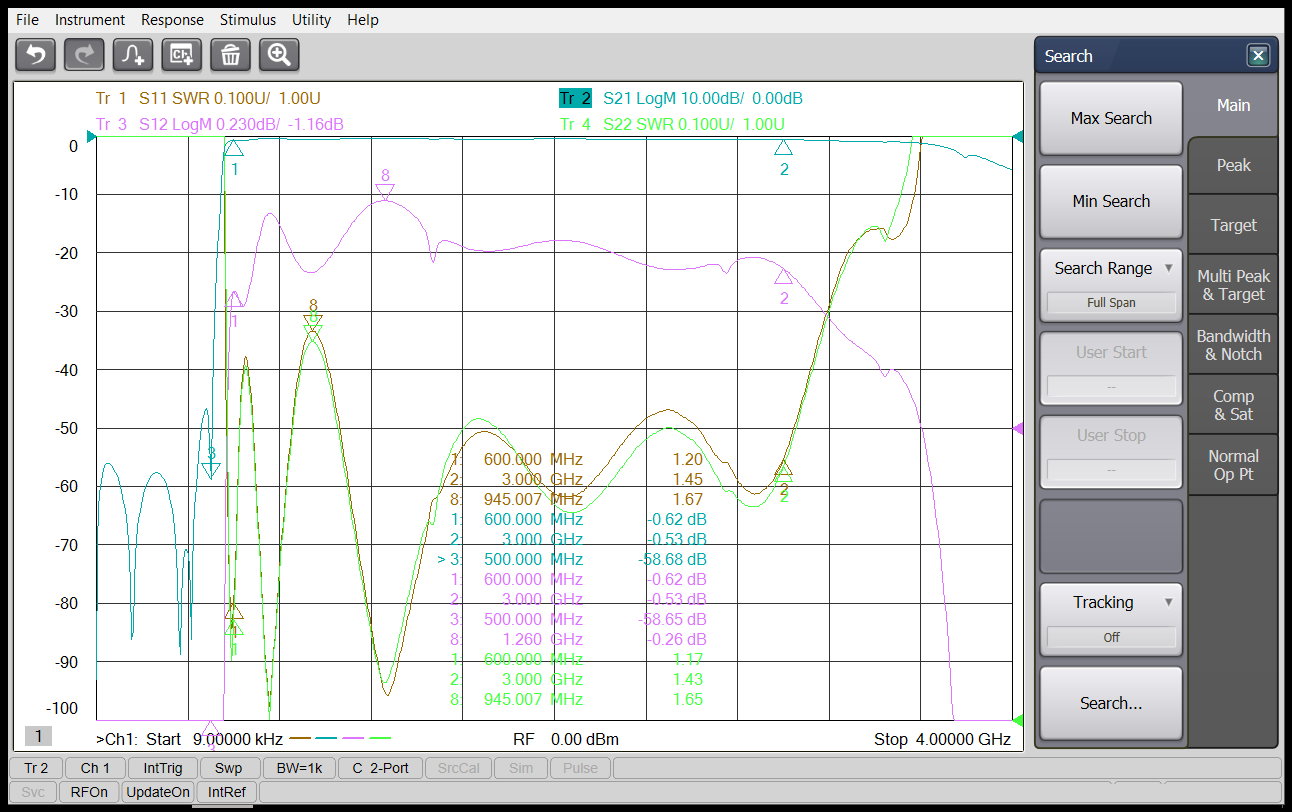

Test Curve
