Technical Data Sheet
●	Frequency Range	0.5～18GHz
●	Coupling	10±0.6dB
●	Frequency Sensitivity	≤±0.8dB
●	Insertion Loss	≤1.8dB
●	VSWR	≤1.4:1
●	Directivity	≥15dB
●	Power Handling	Average Power:≤20W  Peak Power:≤3KW
●	Impedance	50 Ohms
●	Connectors	SMA-Female
●	Surface Finish	Black Paint

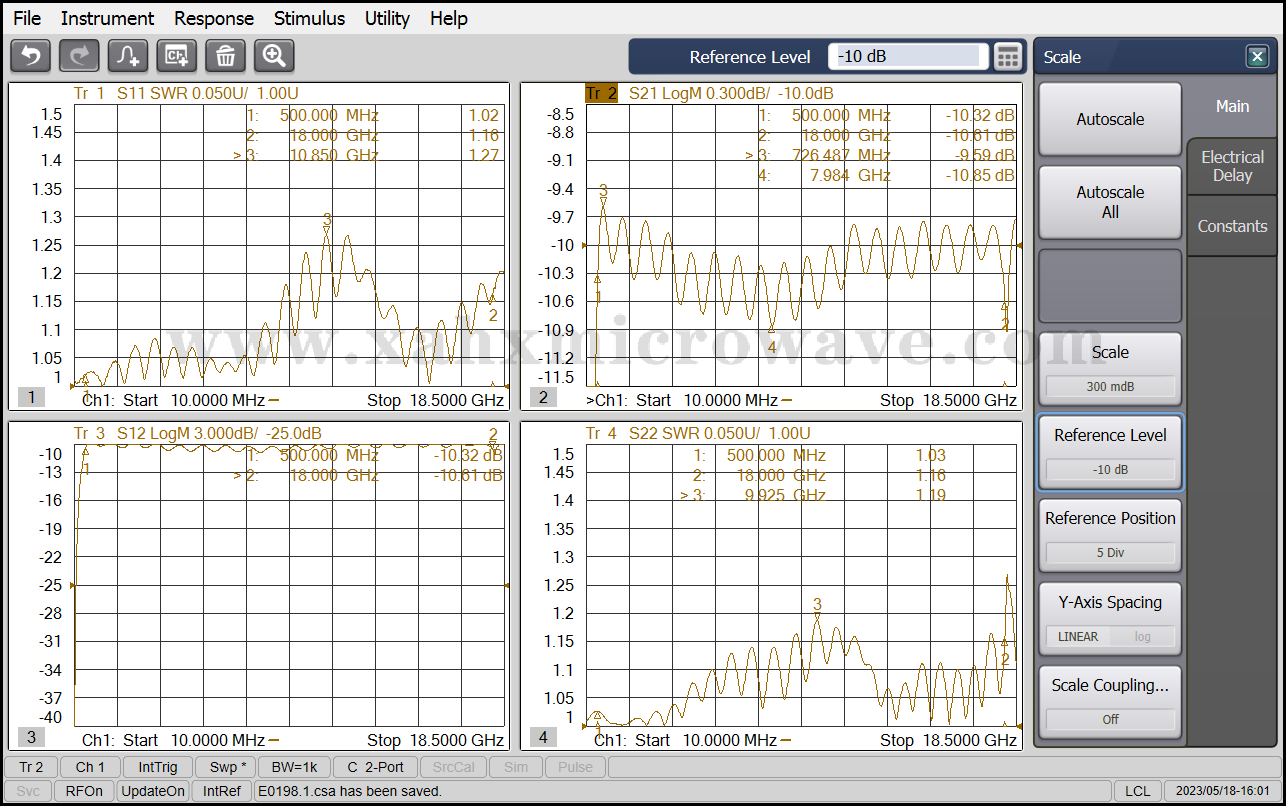

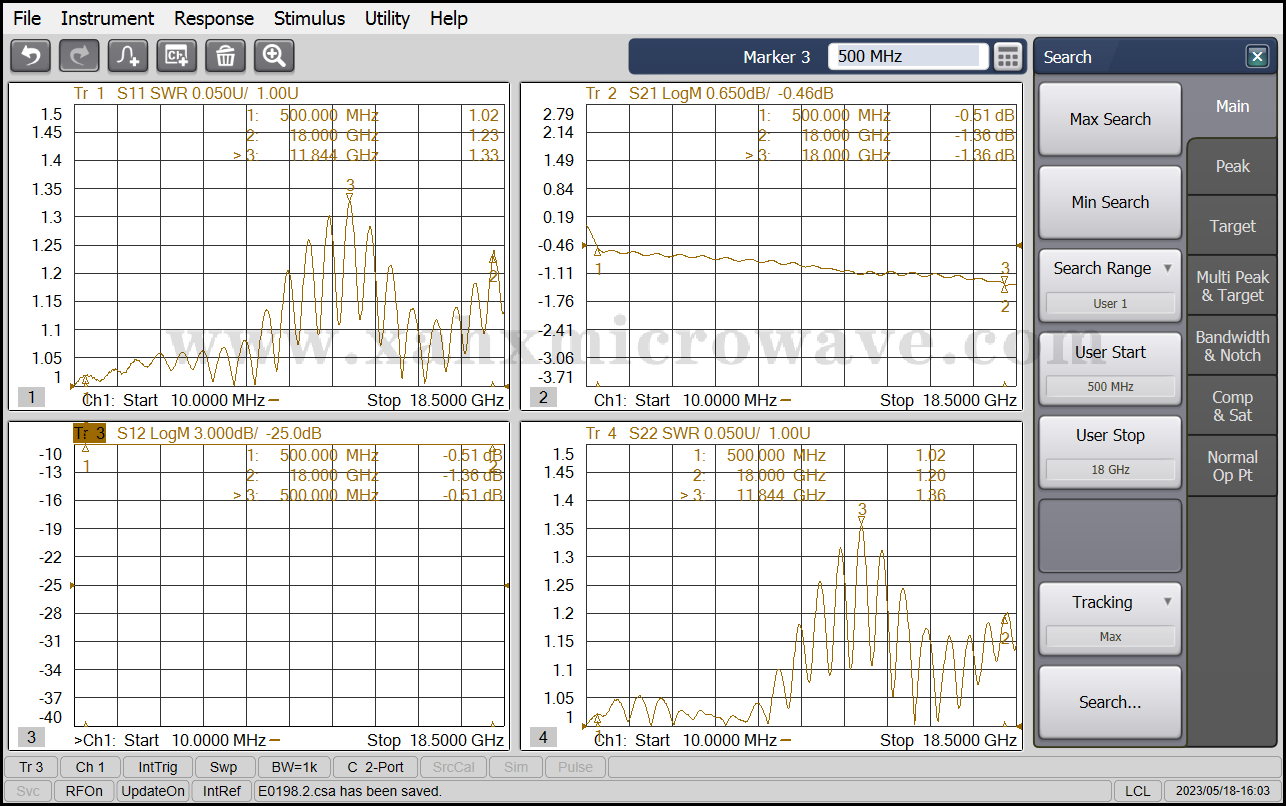

Test Curve
