Technical Data Sheet
●	Coupling	20±1.5dB
●	Frequency Range	500～6000MHz
●	Amplitude Flatness	±1.0dB
●	Insertion Loss	≤1.0dB
●	Directivity	≥12dB
●	VSWR	≤1.4:1 @ Mainline   ≤1.5:1 @ Coupled
●	Power Handling	10W
●	Impedance	50 Ohms
●	Surface Finish	Black Paint
●	Connectors	SMA-Female

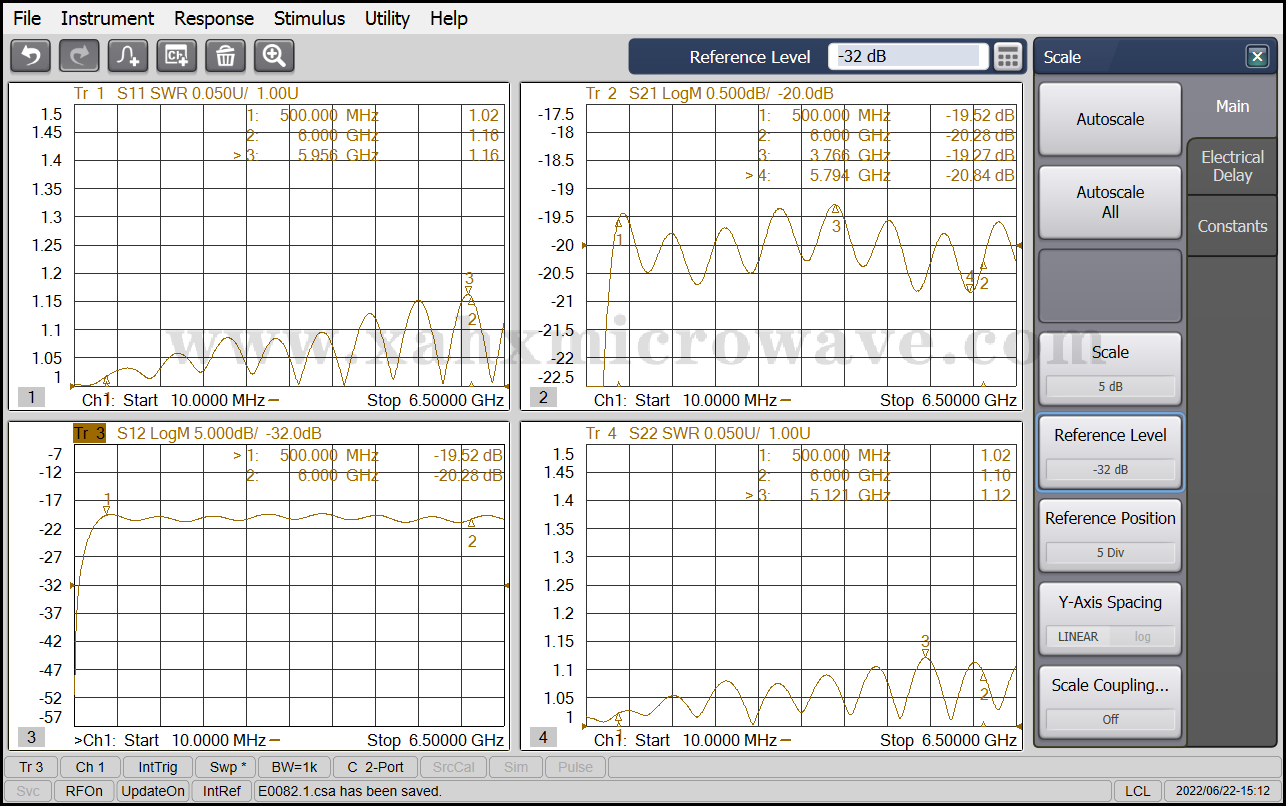

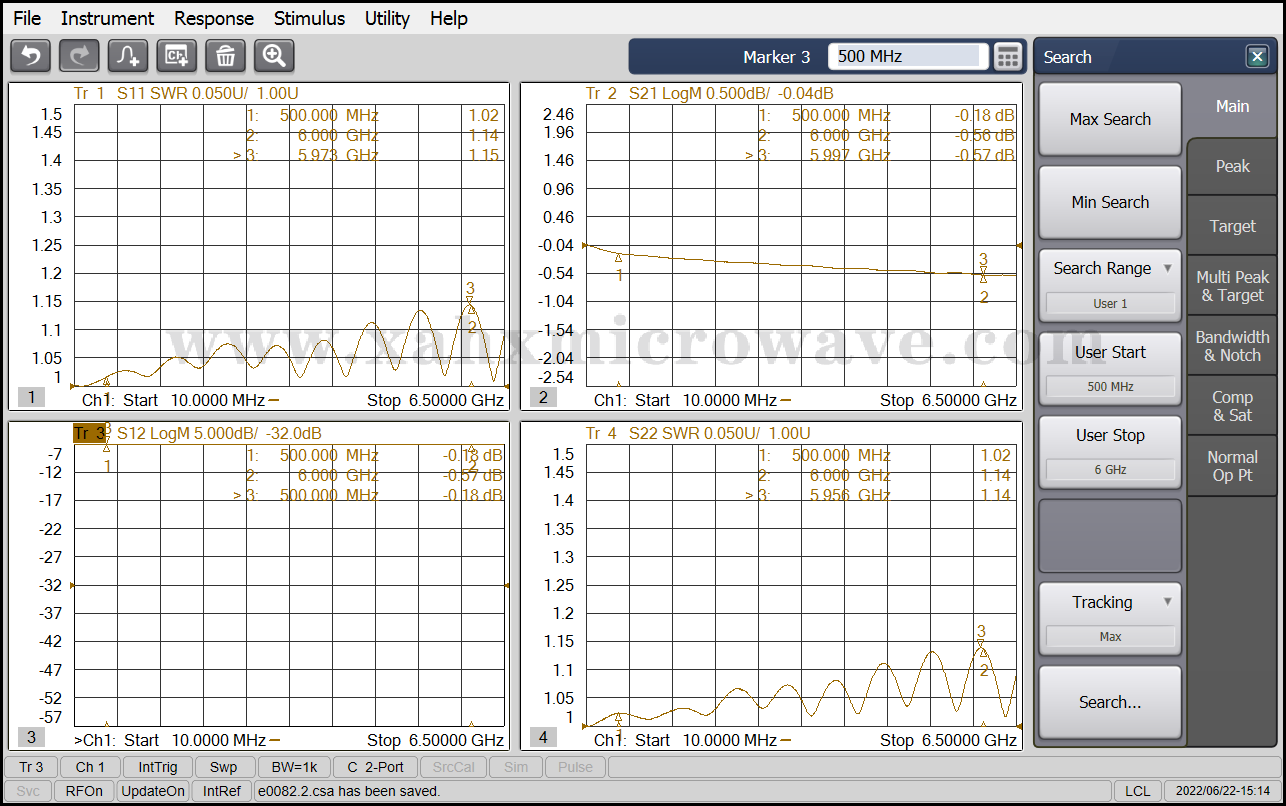

Test Curve
