Technical Data Sheet
●	Frequency Range	0.5 ~ 18GHz
●	Coupling Factor	20dB±1.2dB
●	Coupling Sensitivity	≤±1.0dB
●	Insertion Loss	≤1.4dB (Excluding Coupling Loss 0.04dB)
●	VSWR	≤1.5:1
●	Directivity	≥10dB
●	Impedance	50 Ohms
●	Power Handling	Incident: 50W Max.	Reflected: 2.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

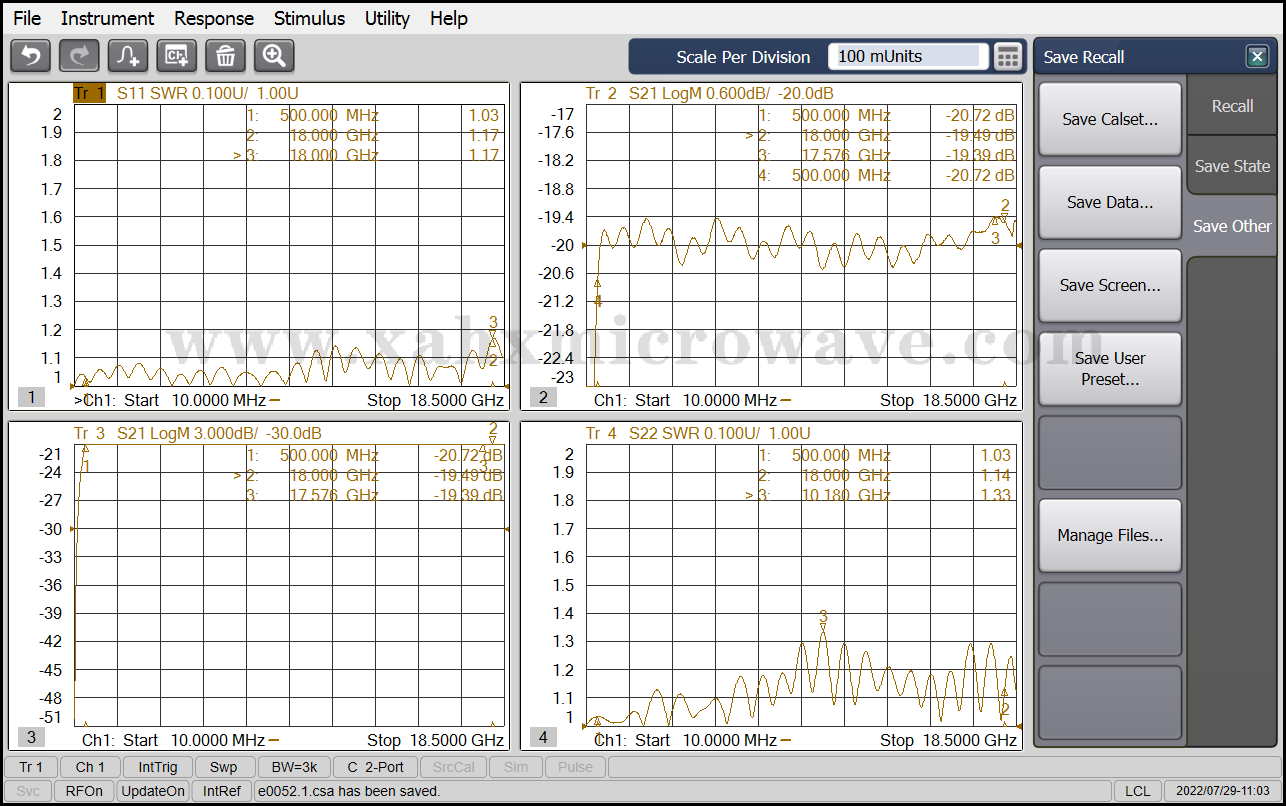

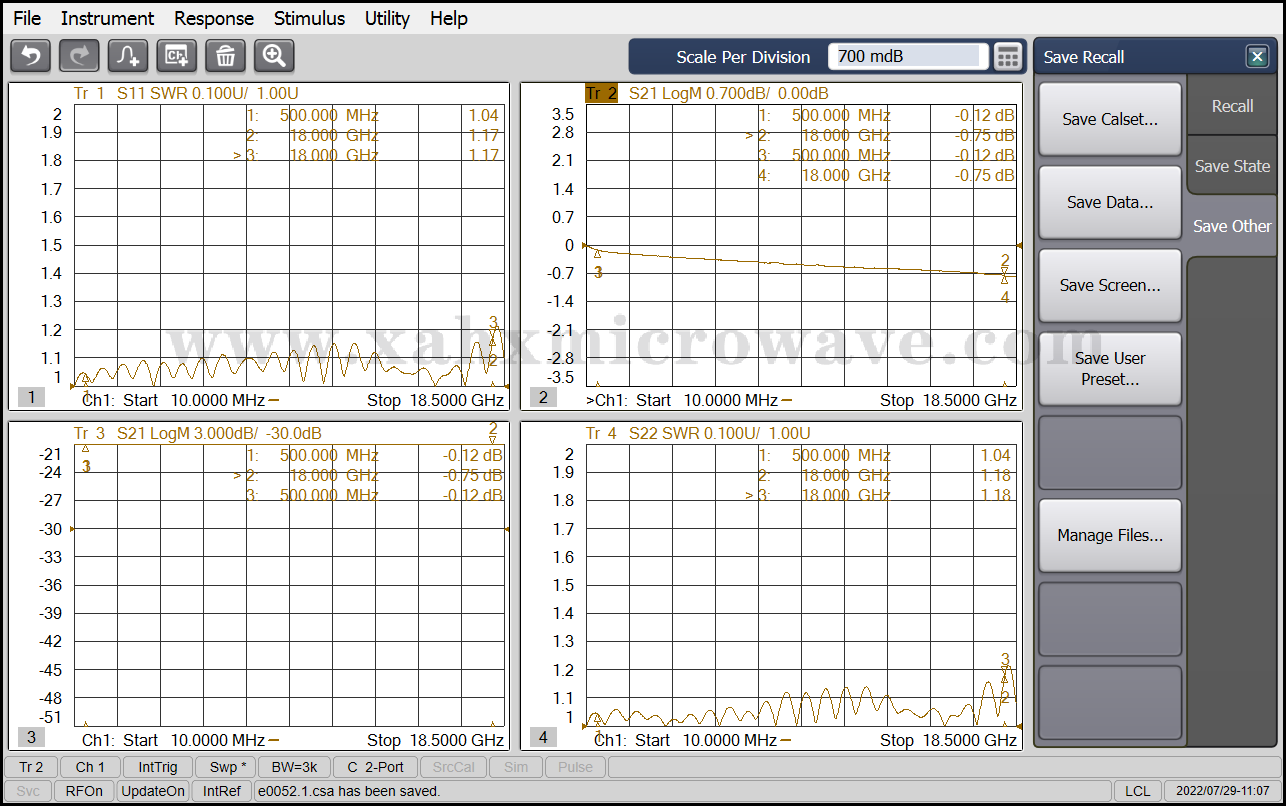

Test Curve
