Technical Data Sheet
●	Frequency Range	7000 ~ 9000MHz
●	Coupling	10dB±0.7dB
●	Frequency Sensitivity	≤±0.7dB
●	Insertion Loss	≤0.5dB (Excluding Coupling Loss 0.46dB)
●	VSWR	≤1.4:1
●	Directivity	≥15dB
●	Impedance	50 Ohms
●	Power Handling	Incident: 50W Max.	Reflected: 2.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

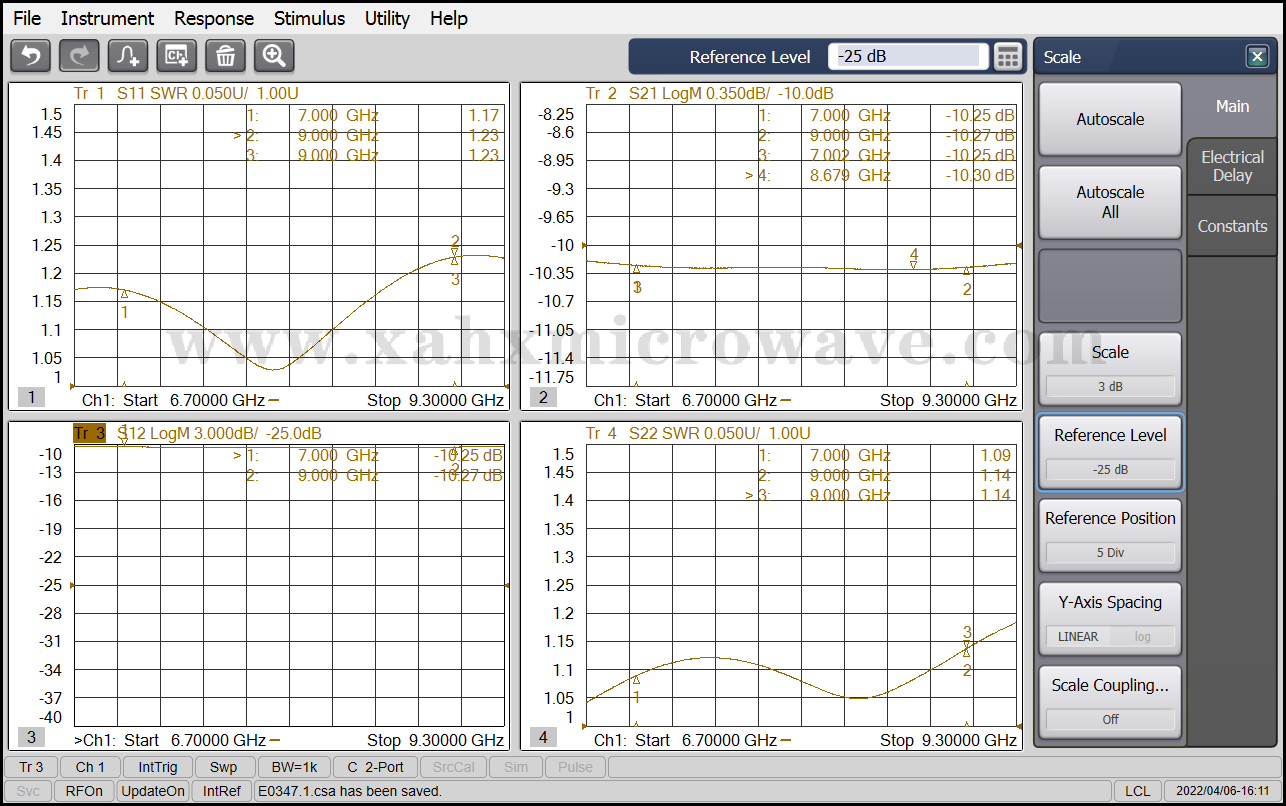

Test Curve
