Technical Data Sheet
●	Frequency Range	0.5 ~ 26.5GHz
●	Coupling Factor	10dB±0.7dB
●	Coupling Sensitivity	≤±1.0dB
●	Insertion Loss	≤2.1dB (Excluding Coupling Loss 0.46dB)
●	VSWR	≤1.5:1
●	Directivity	≥12dB
●	Impedance	50 Ohms
●	Power Handling	Incident: 20W Max.	Reflected: 1.0W Max.
●	Connectors	2.92mm(K)-Female
●	Surface Finish	Painted Black

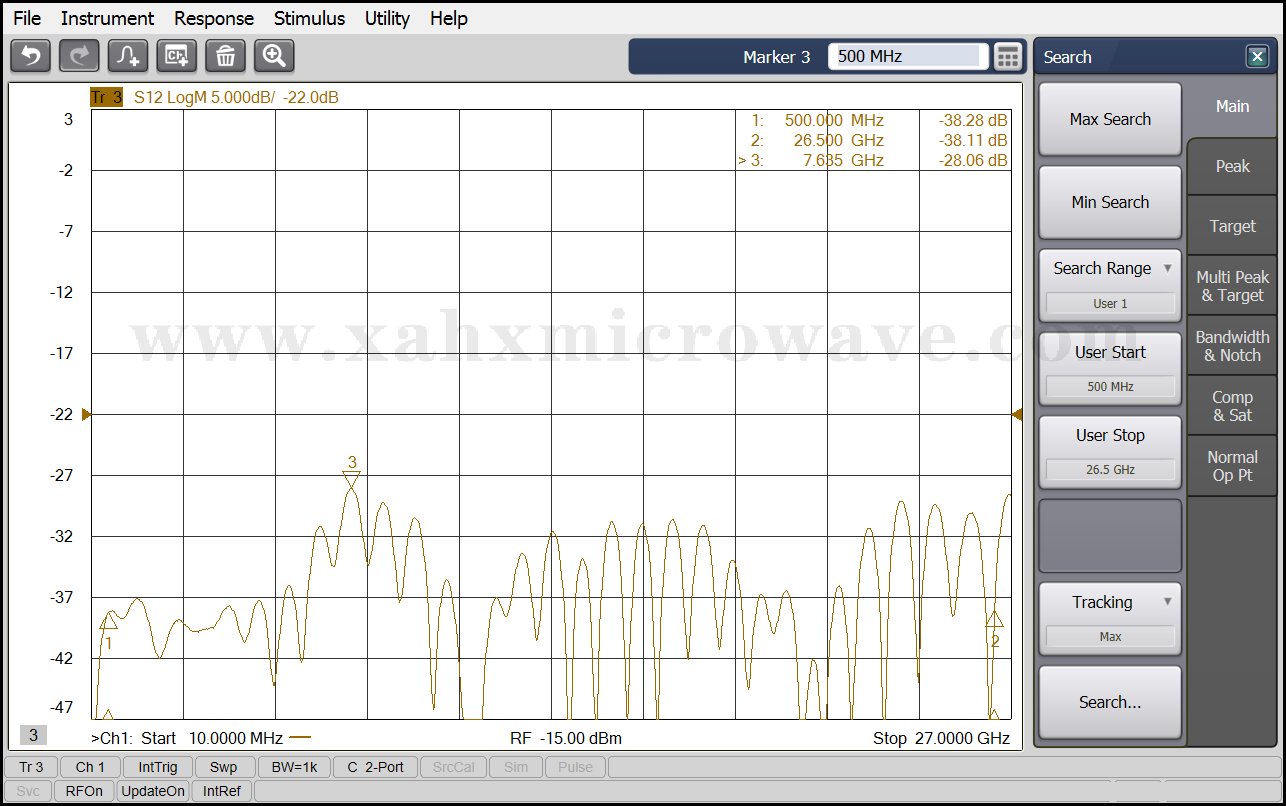

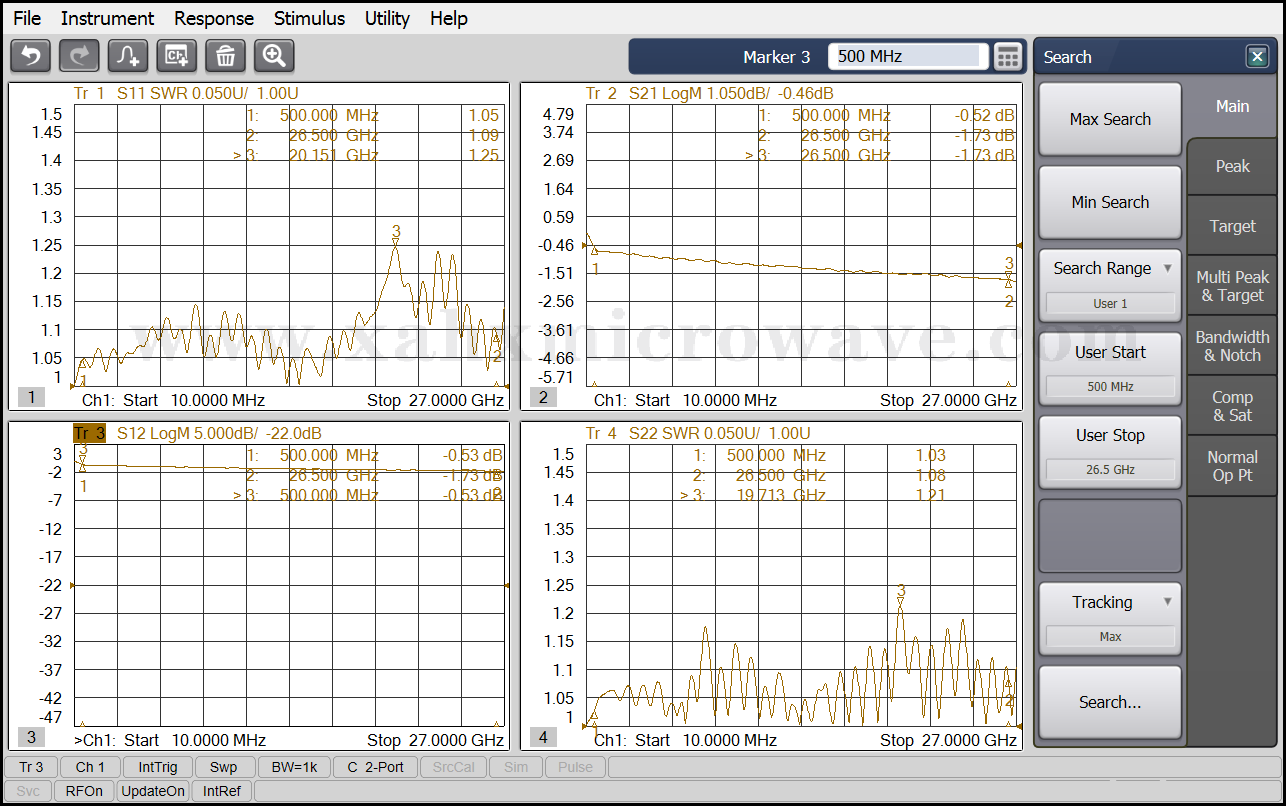

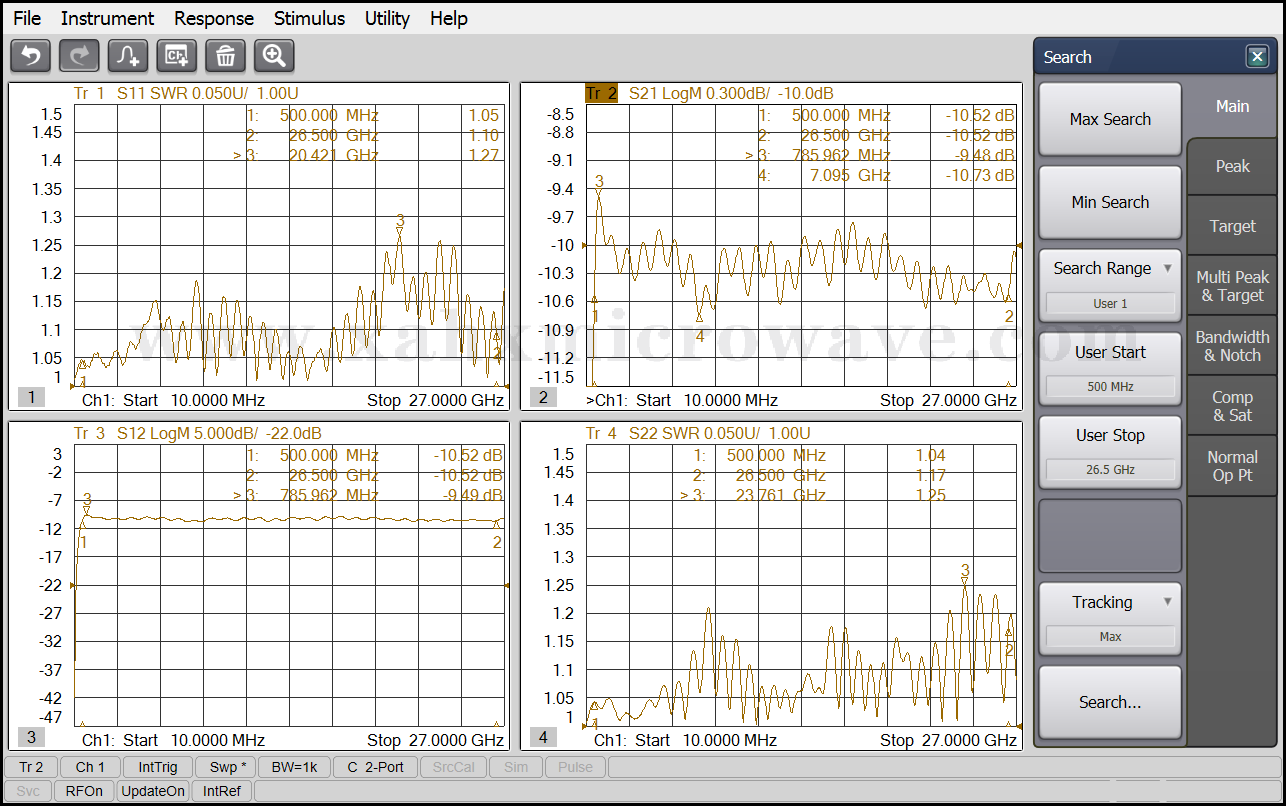

Test Curve
