  • 1150-1500MHz Interdigital Band Pass Filter
1150-1500MHz Interdigital Band Pass Filter

1150-1500MHz Interdigital Band Pass Filter

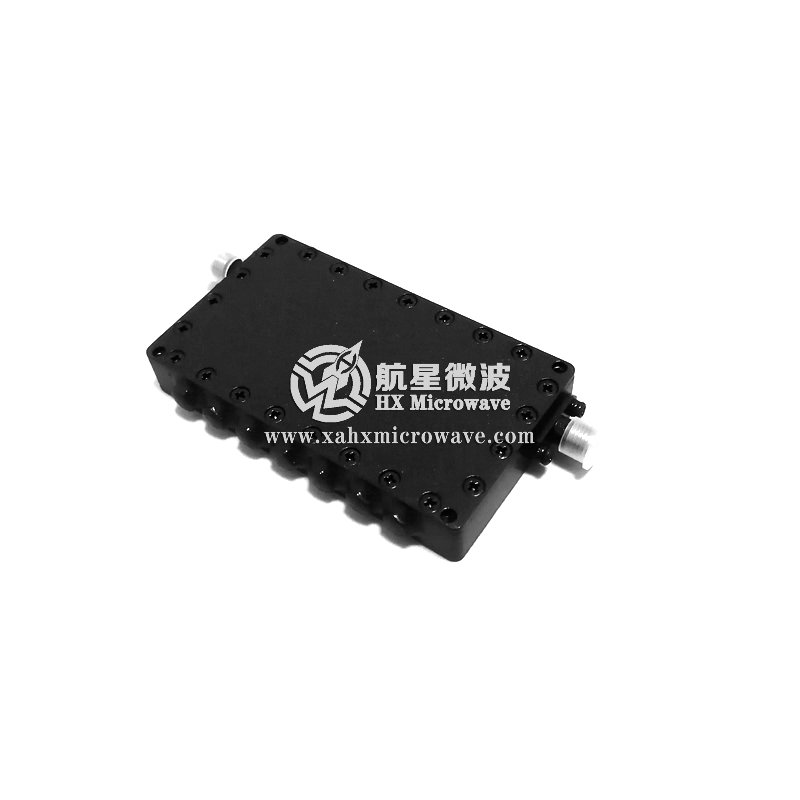

  • P/N:HXLBQ-DTA152
  • frequency:1150-1500MHz
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 1325MHz
● Pass Band Frequency 1150 ~ 1500MHz
● Pass Band Insertion Loss ≤1.0dB @ 1325MHz ≤1.8dB @ 1150 ~ 1500MHz
● Pass Band VSWR ≤1.5:1
● Stop Band Attenuation ≥40dB @ DC ~ 1100MHz ≥40dB @ 1550 ~ 3000MHz
● Impedance 50 Ohms
● Power 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
