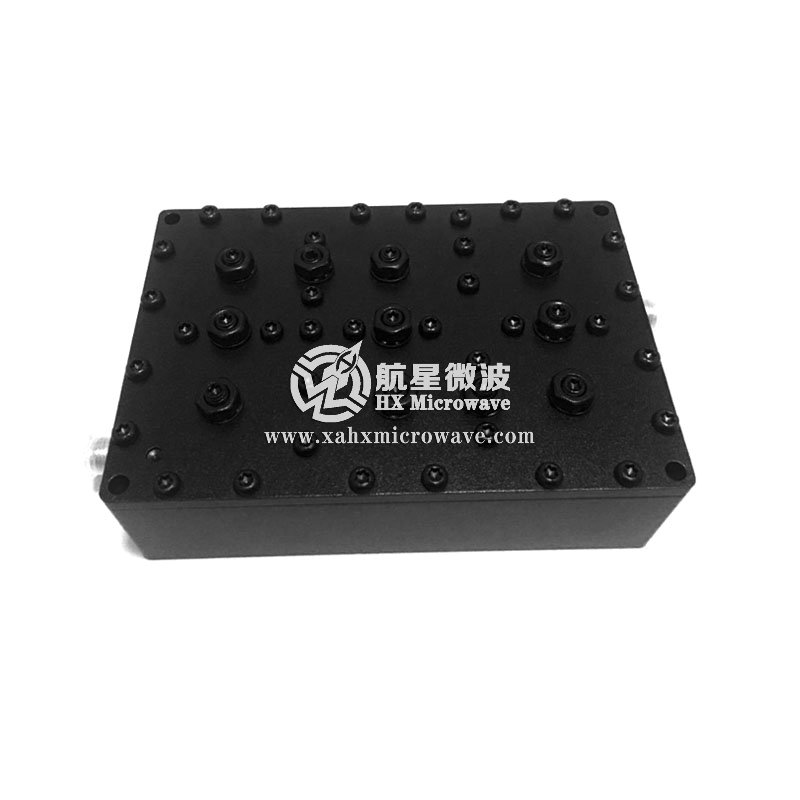

  • 1559.298 ~ 1562.898MHz Narrow band Cavity Band Pass Filter
1559.298 ~ 1562.898MHz Narrow band Cavity Band Pass Filter

1559.298 ~ 1562.898MHz Narrow band Cavity Band Pass Filter

  • P/N:HXLBQ-DTA157
  • frequency:1559.298 ~ 1562.898MHz
  • Stop Band Rejection：≥50dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 1561.098MHz
● Pass Band Bandwidth ±1.8MHz (1559.298 ~ 1562.898MHz)
● Pass Band Insertion Loss ≤2.6dB
● Pass Band Ripple ≤0.5dB
● Pass Band VSWR ≤1.3:1
● Stop Band Rejection ≥50dB @ F0±10MHz (DC ~ 1551.098MHz , 1571.098 ~ 3000MHz)
● Impedance 50 Ohms
● Power 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -10℃ ~ +50℃
Test Curve
