Technical Data Sheet
●	Center Frequency(F0)	10.8GHz
●	Pass Band Frequency	9.8 ~ 11.8GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥45dB @ DC ~ 9.0GHz	≥45dB @ 12.6 ~ 22GHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

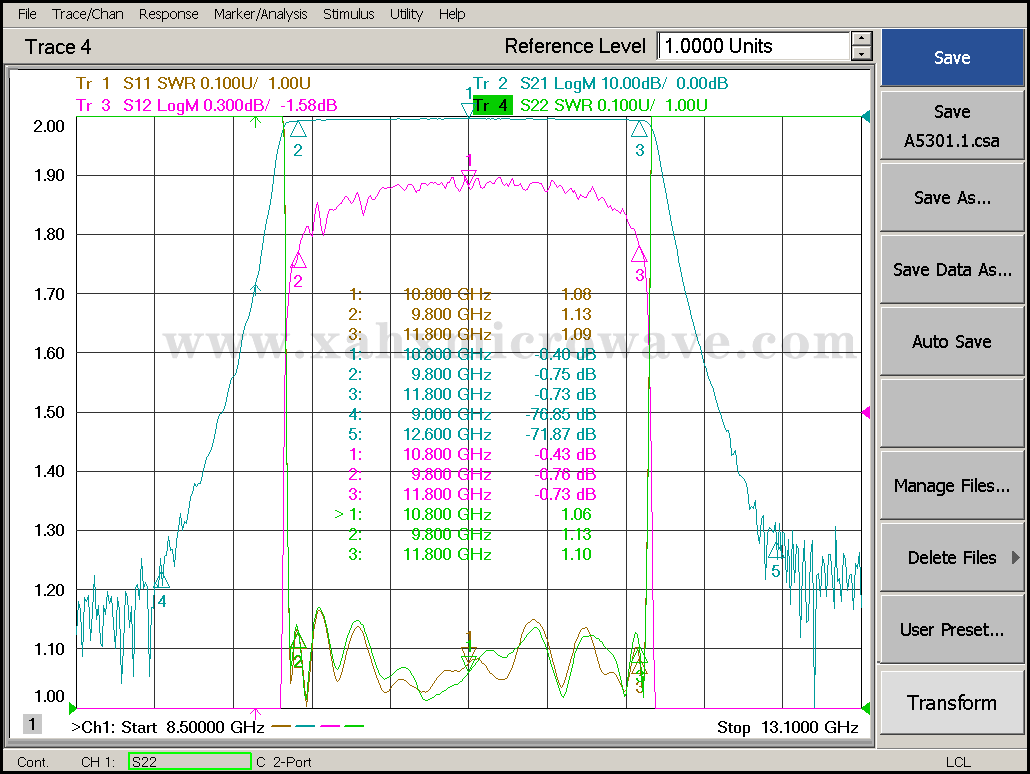

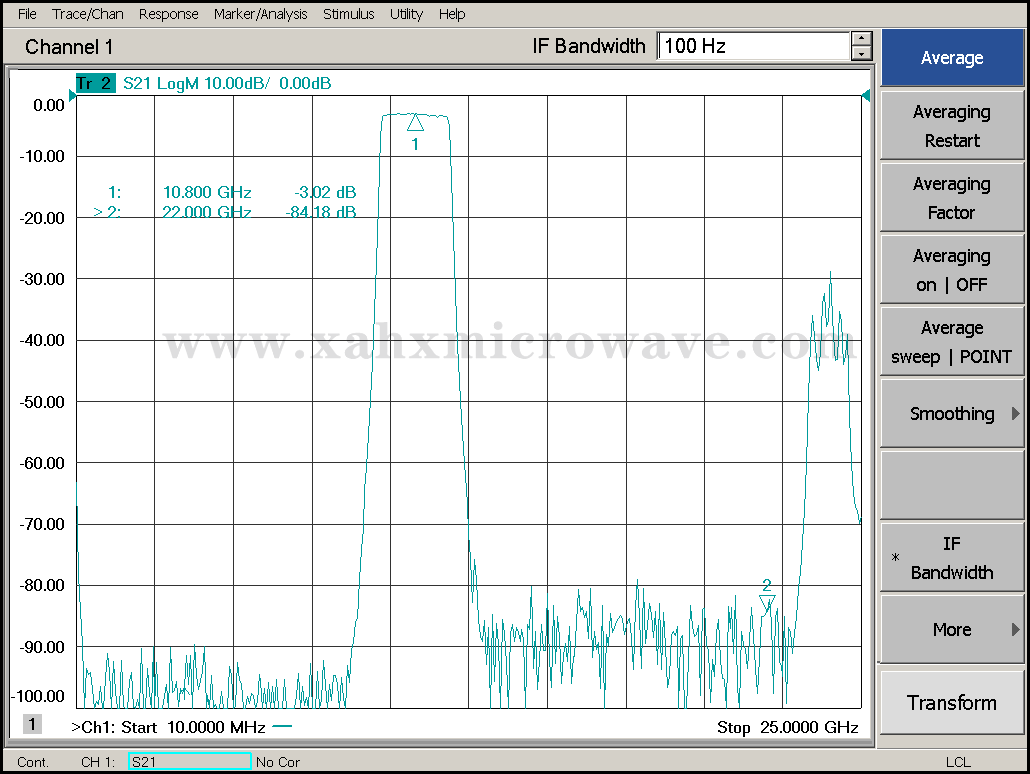

Test Curve
