Technical Data Sheet
●	Center Frequency(F0)	875MHz
●	Pass Band Frequency	870 ~ 880MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Rejection	≥45dB @ DC ~ 855MHz	≥45dB @ 895 ~ 2700MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

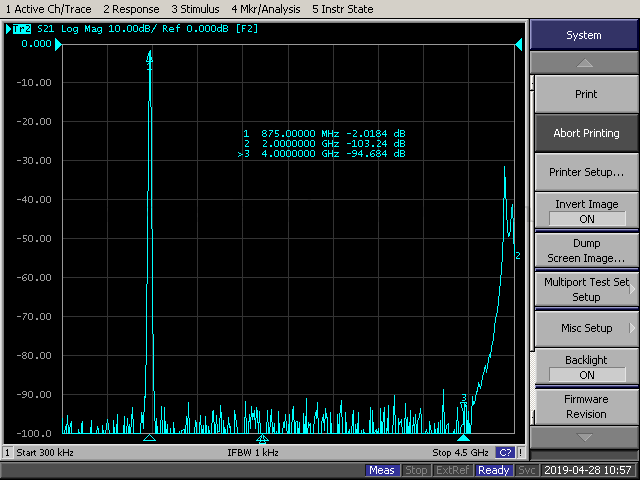

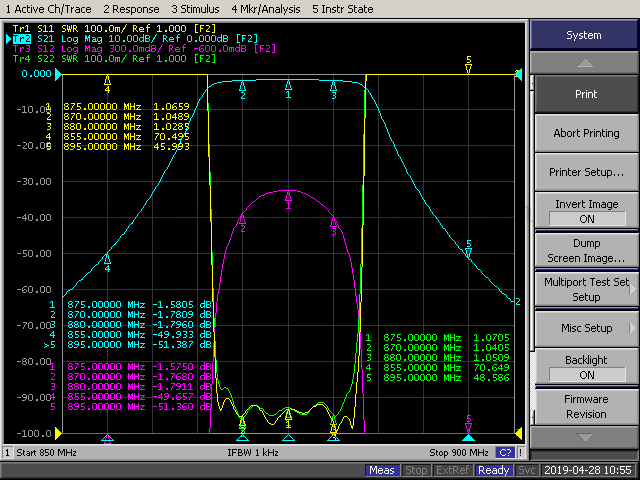

Test Curve
