Technical Data Sheet
●	Frequency Range	1.0～12GHz
●	Nominal Split	3.01dB
●	Insertion Loss	≤1.1dB
●	VSWR	≤1.3:1
●	Isolation	≥20dB
●	Amplitude Balance	≤±0.6dB
●	Phase Balance	≤±5.0°
●	Impedance	50 ohms
●	Power	Average: ≤50W  Peak: ≤1KW
●	Surface Finish	Black Paint
●	Connectors	SMA-Female

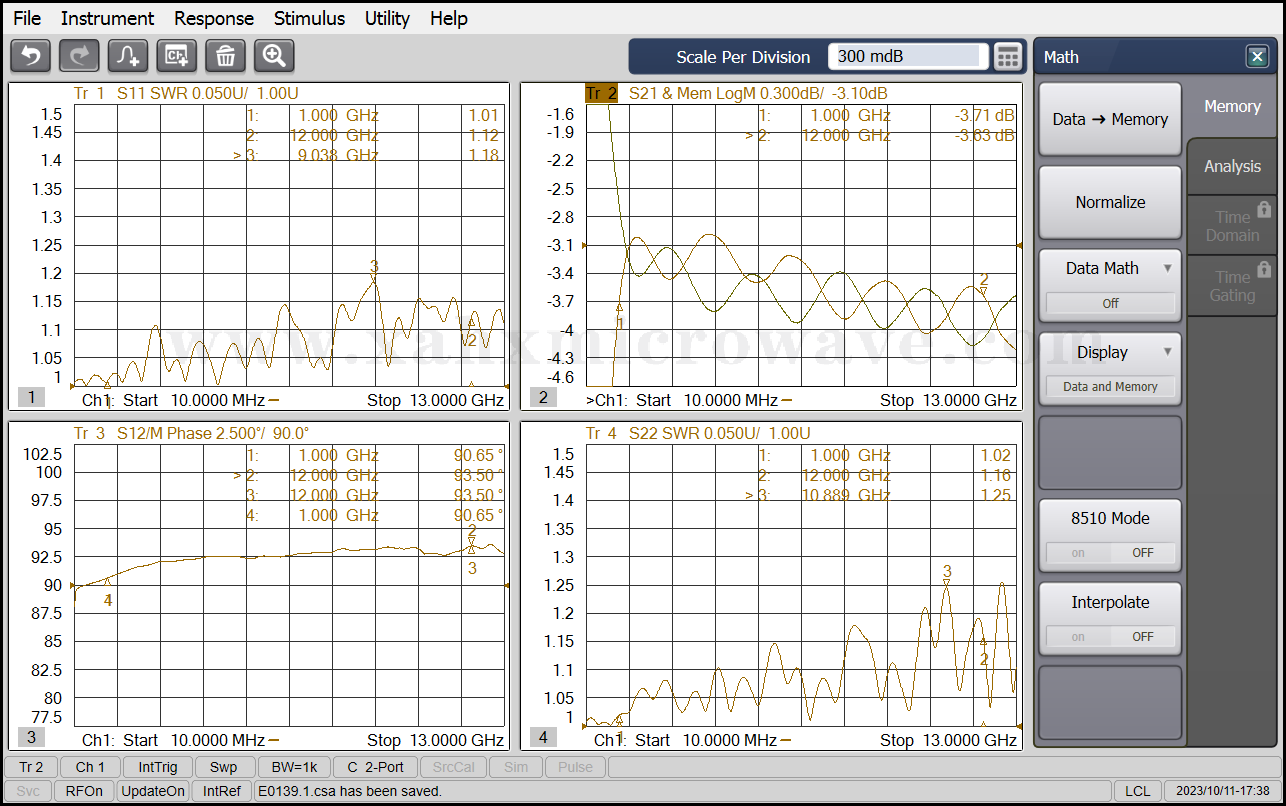

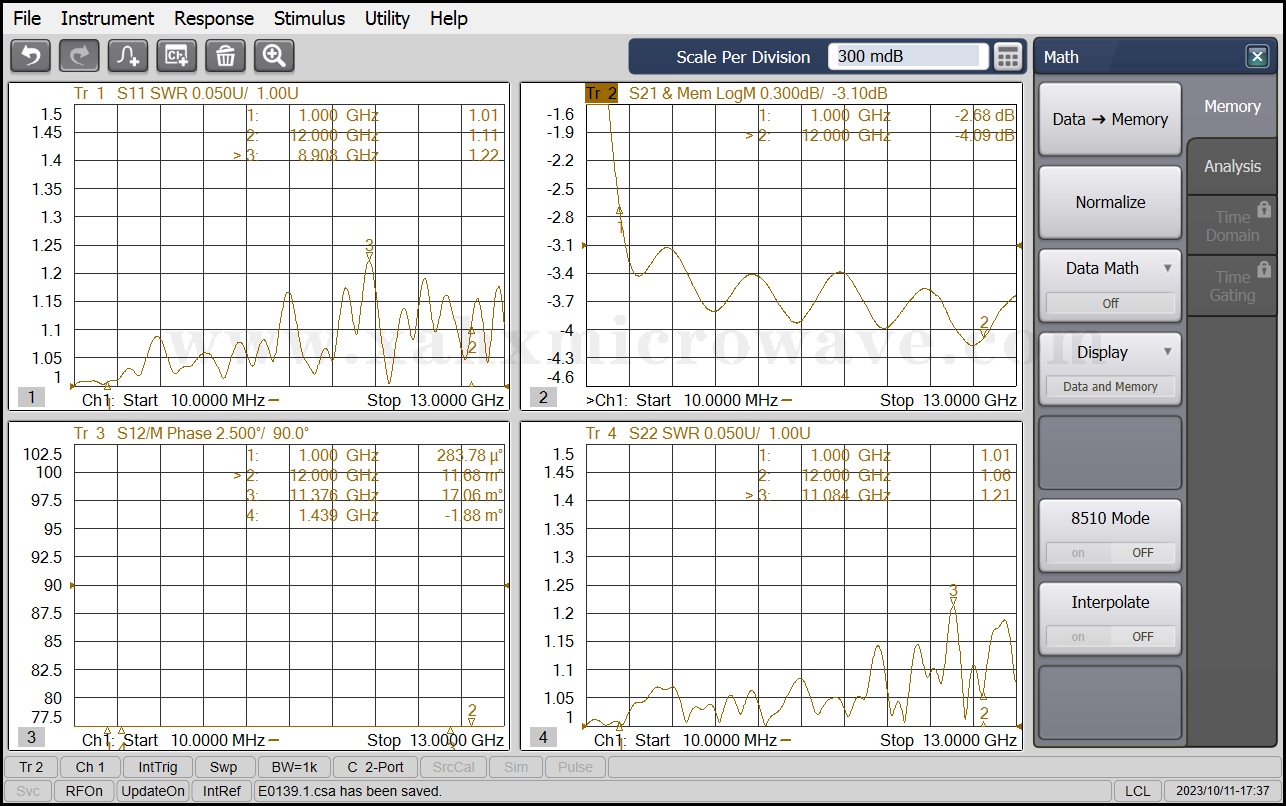

Test Curve
