Technical Data Sheet
●	Frequency Range	17 ~ 28GHz
●	Phase Difference	90°
●	Nominal Split	3.01dB
●	Insertion Loss	≤2.2dB
●	VSWR	≤1.6:1
●	Amplitude Balance	≤±1.0dB
●	Phase Balance	≤±10°
●	Isolation	≥12dB
●	Impedance	50 Ohms
●	Power Handling	Average: 10W Max.  ;  Peak: 1000W Max.
●	Connectors	2.92mm(K)-Female
●	Surface Finish	Painted Black

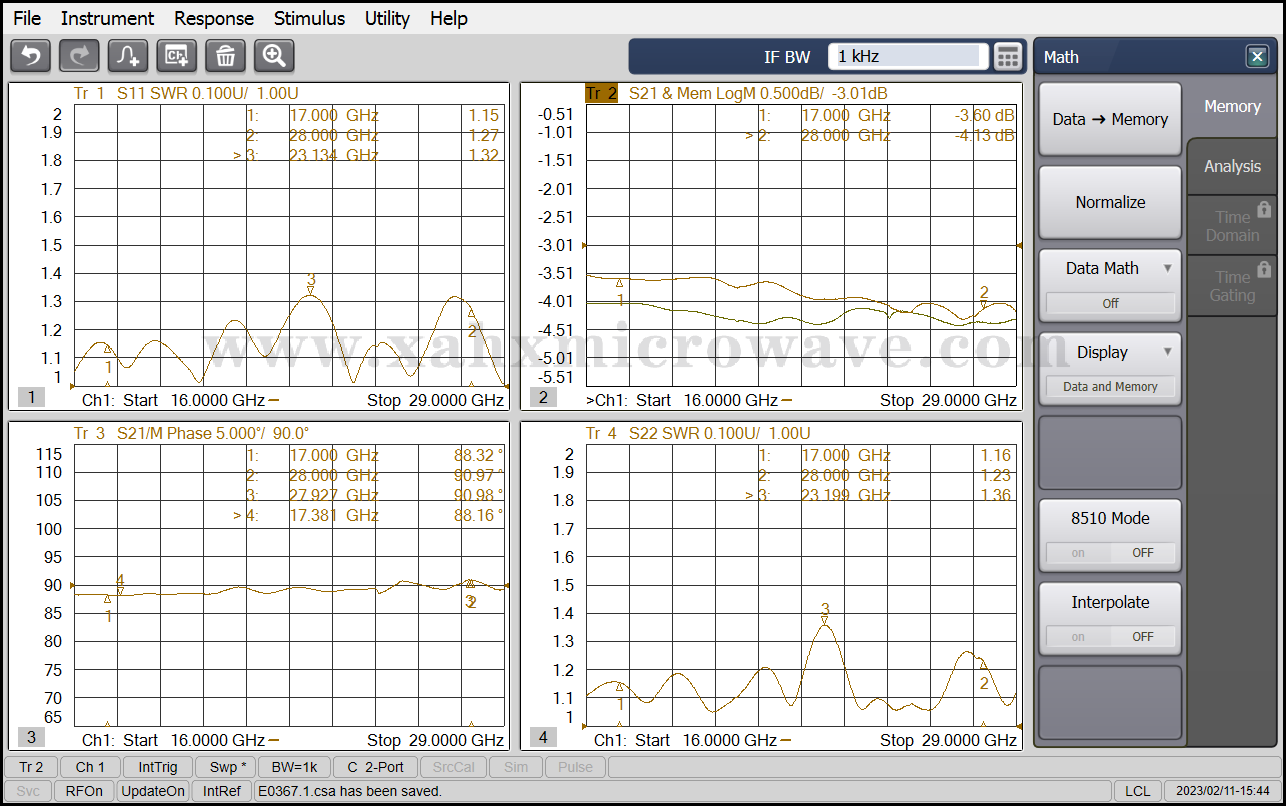

Test Curve
