Technical Data Sheet
●	Way	2
●	Frequency Range	8.0 ~ 12GHz
●	Insertion Loss	≤0.5dB (Does not contain theory loss 3.01dB)
●	VSWR	Input: ≤1.4:1  ;  Output: ≤1.4:1
●	Amplitude Balance	≤ ±0.3dB
●	Phase Balance	≤ ±3.0°
●	Isolation	≥18dB
●	Impedance	50 Ohms
●	Power	Forward: 30W Max.  ;  Reverse: 1.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-40℃ ~ +80℃

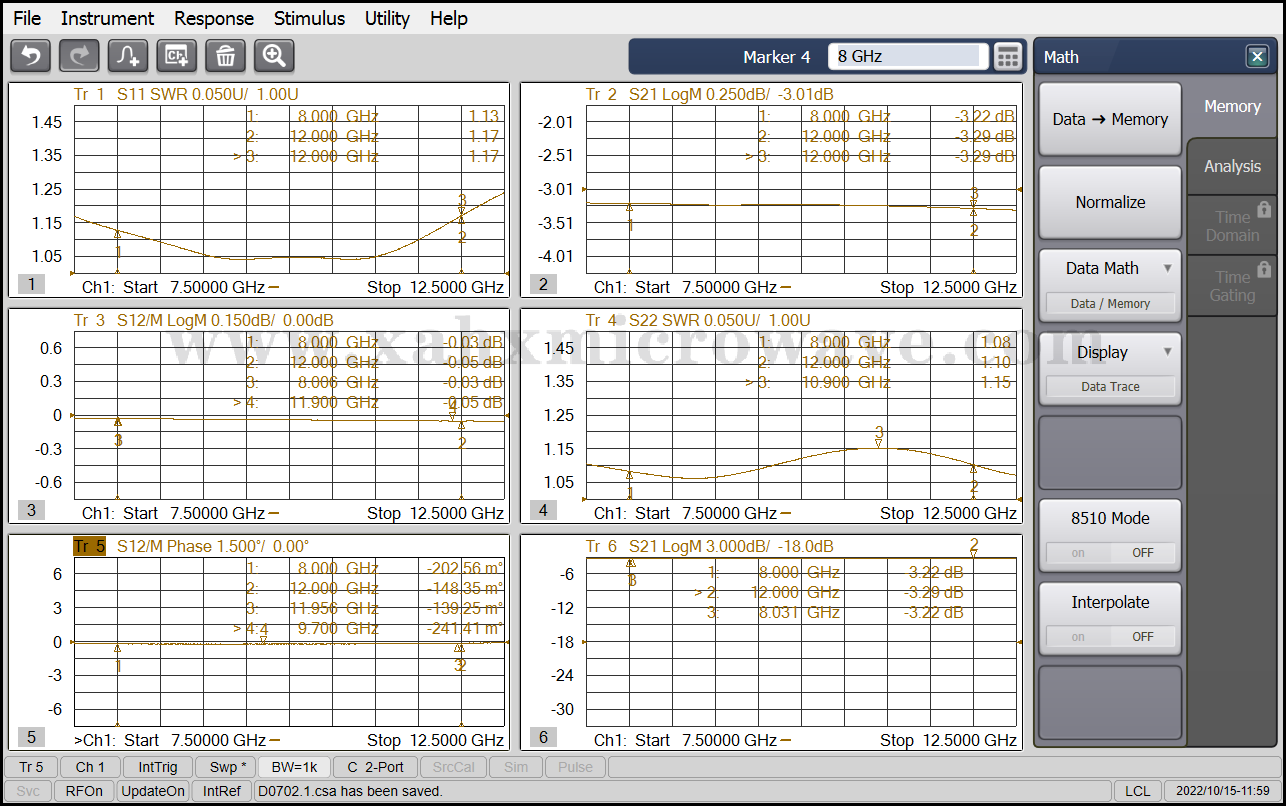

Test Curve
