| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2225MHz | |
| ● | Pass Band Frequency | 1950 ~ 2500MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.9dB | |
| ● | Pass Band Return Loss | ≥14dB | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 1770MHz | ≥50dB @ 2680 ~ 4000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

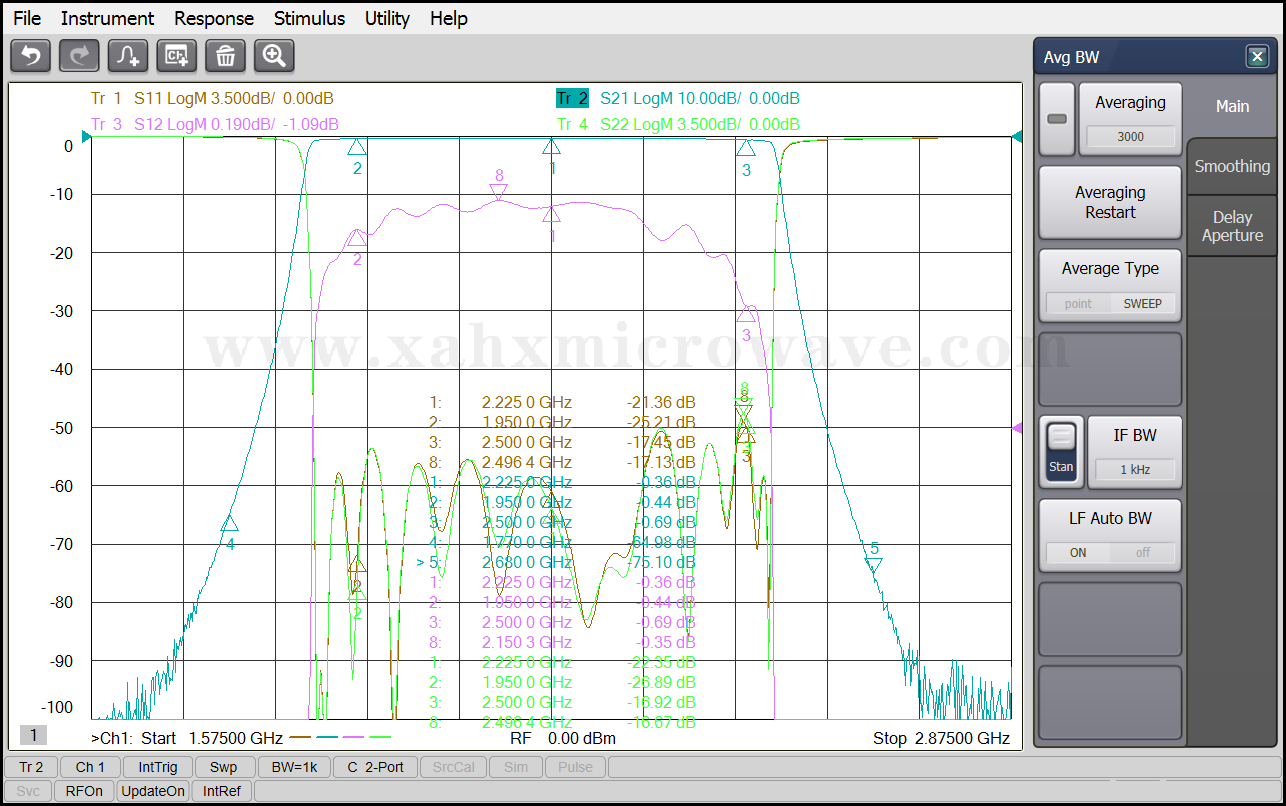

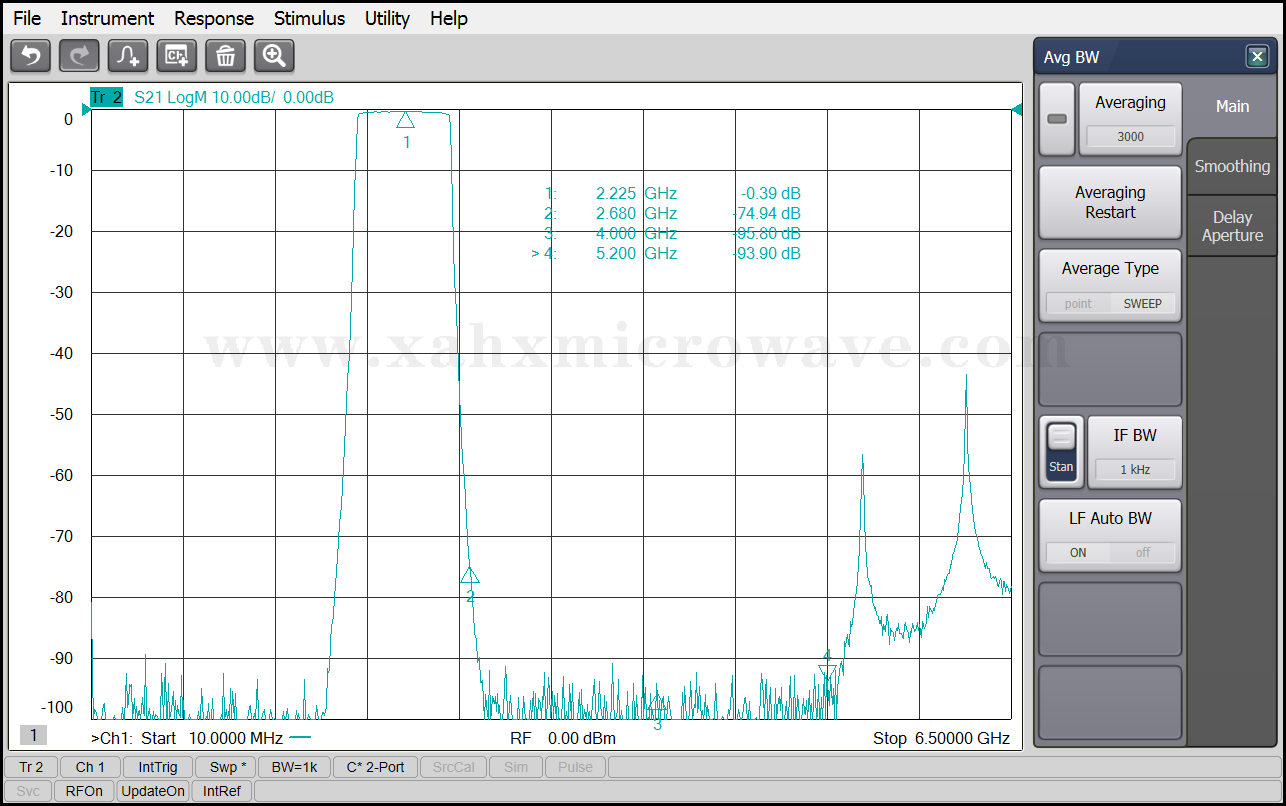

| Test Curve | |||
