| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 7140MHz | |
| ● | Pass Band Frequency | 7100 ~ 7180MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.8dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6650MHz | ≥7.0dB @ 7230 ~ 7500MHz |
| ≥50dB @ 6650 ~ 6800MHz | ≥80dB @ 7500 ~ 25000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

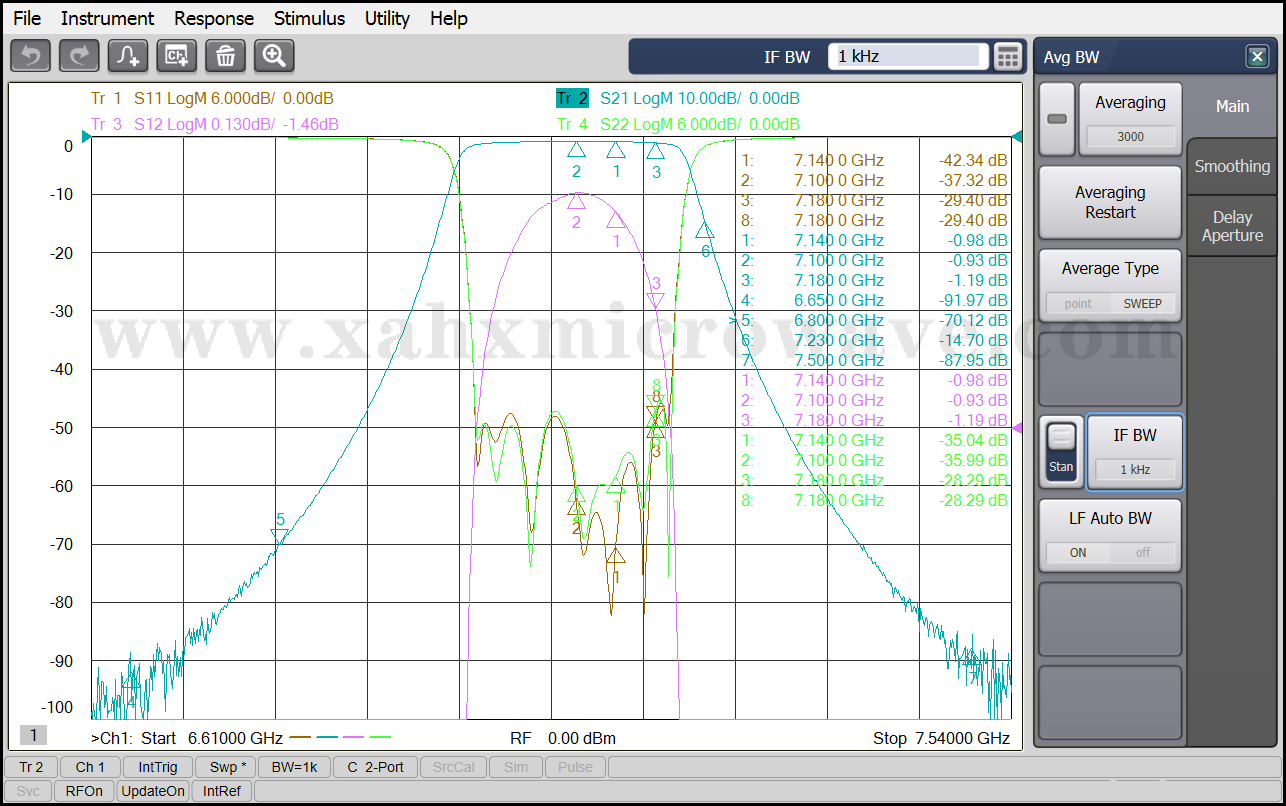

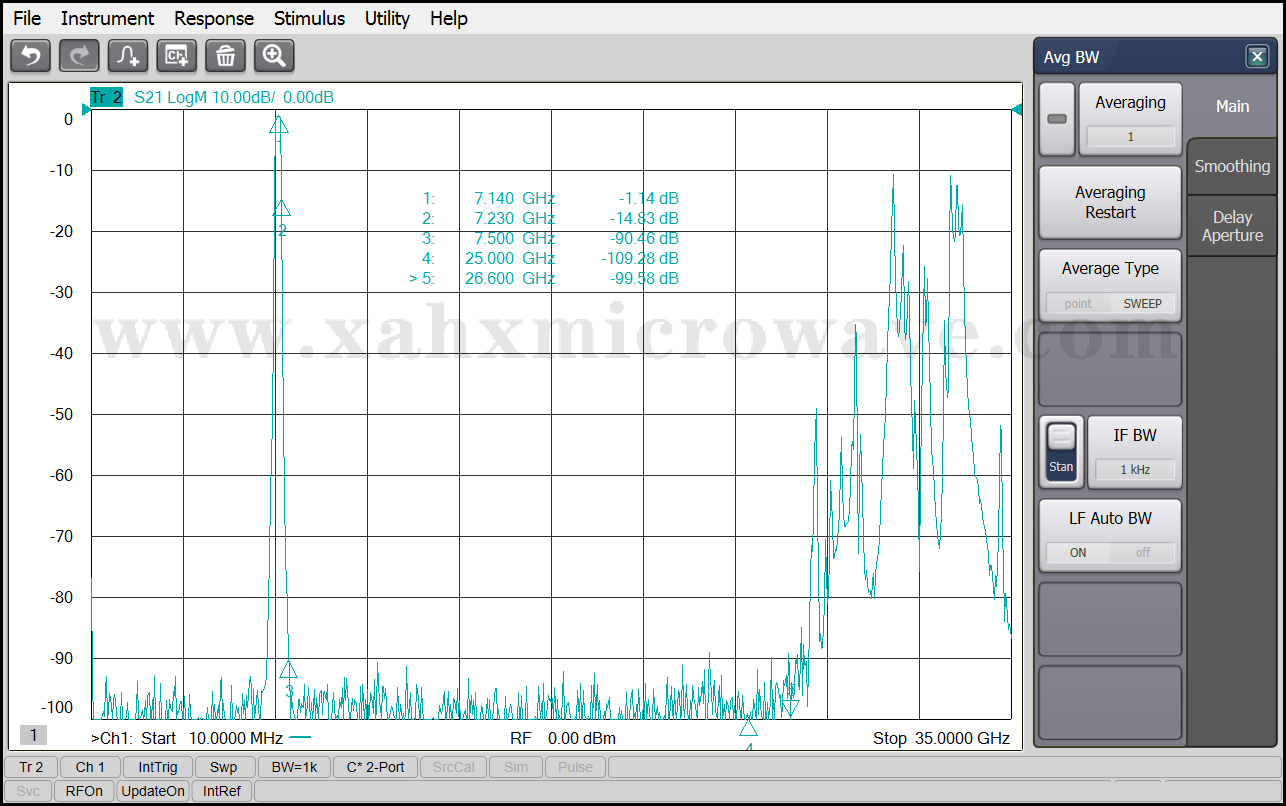

| Test Curve | |||
