| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 17210MHz | |
| ● | Pass Band Frequency | 17160 ~ 17260MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.3dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 16560MHz | ≥40dB @ 17510 ~ 17860MHz |
| ≥40dB @ 16560 ~ 16910MHz | ≥80dB @ 17860 ~ 32000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

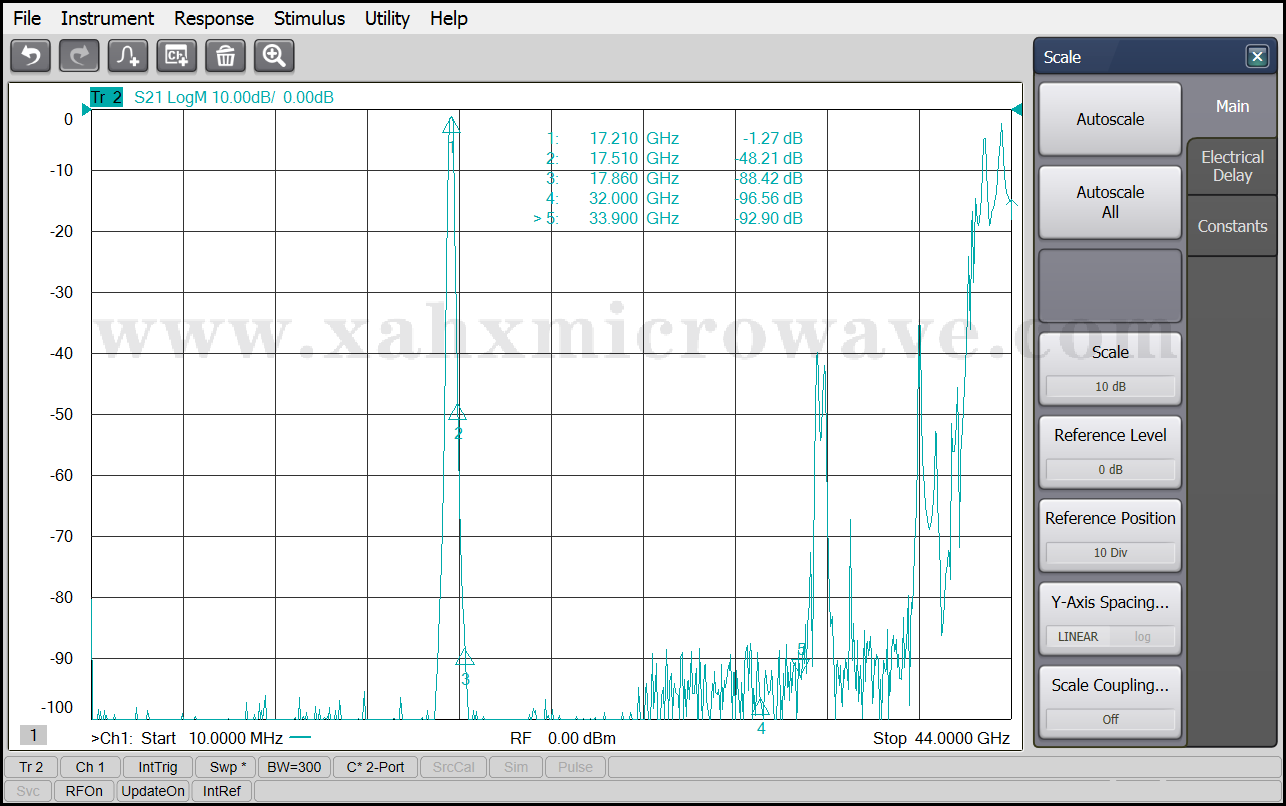

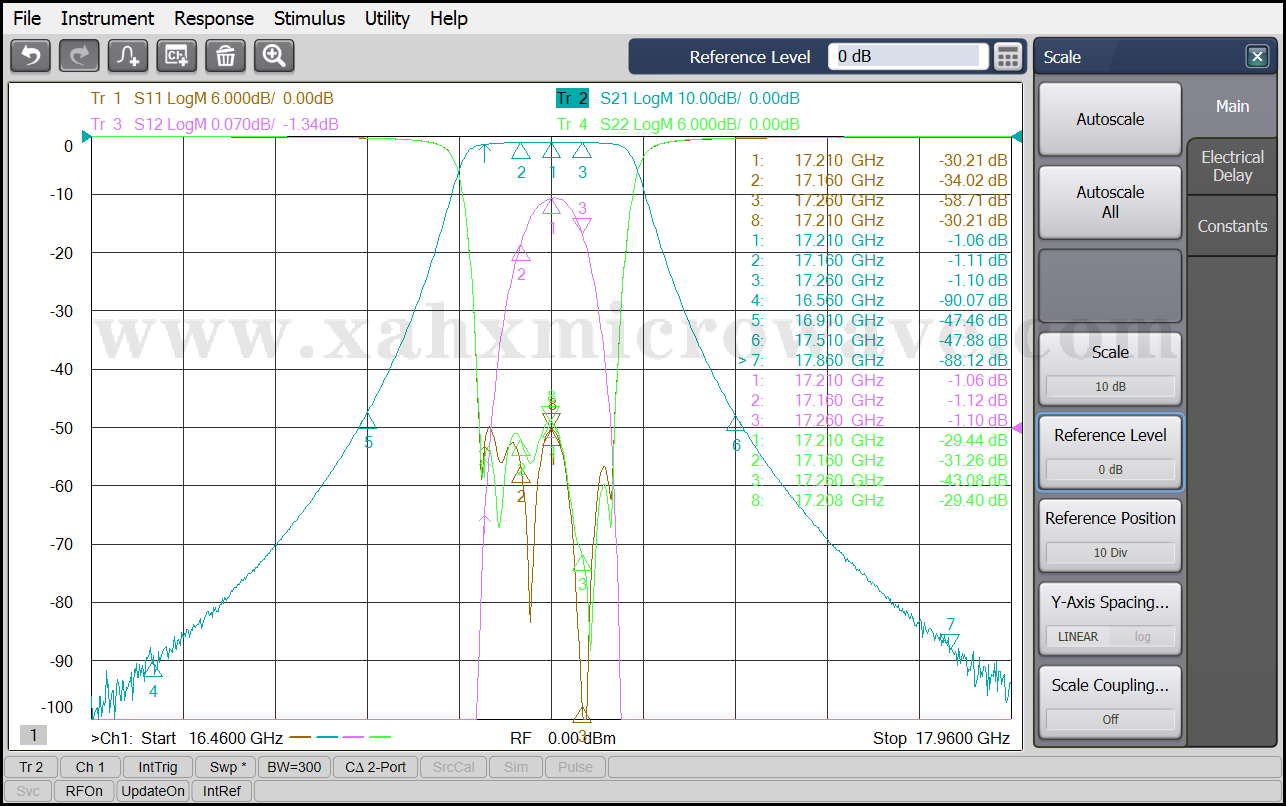

| Test Curve | |||
