| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1000MHz | |
| ● | 3.0dB Bandwidth | 14MHz Max. (993 ~ 1007MHz Max.) | |
| ● | Insertion Loss @ F0 | ≤1.7dB @ 1000MHz (Typical: 1.5dB) | |
| ● | Return Loss @ F0 | ≥18dB @ 1000MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 980MHz | ≥40dB @ 1020 ~ 3000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | +10℃ ~ +30℃ | |

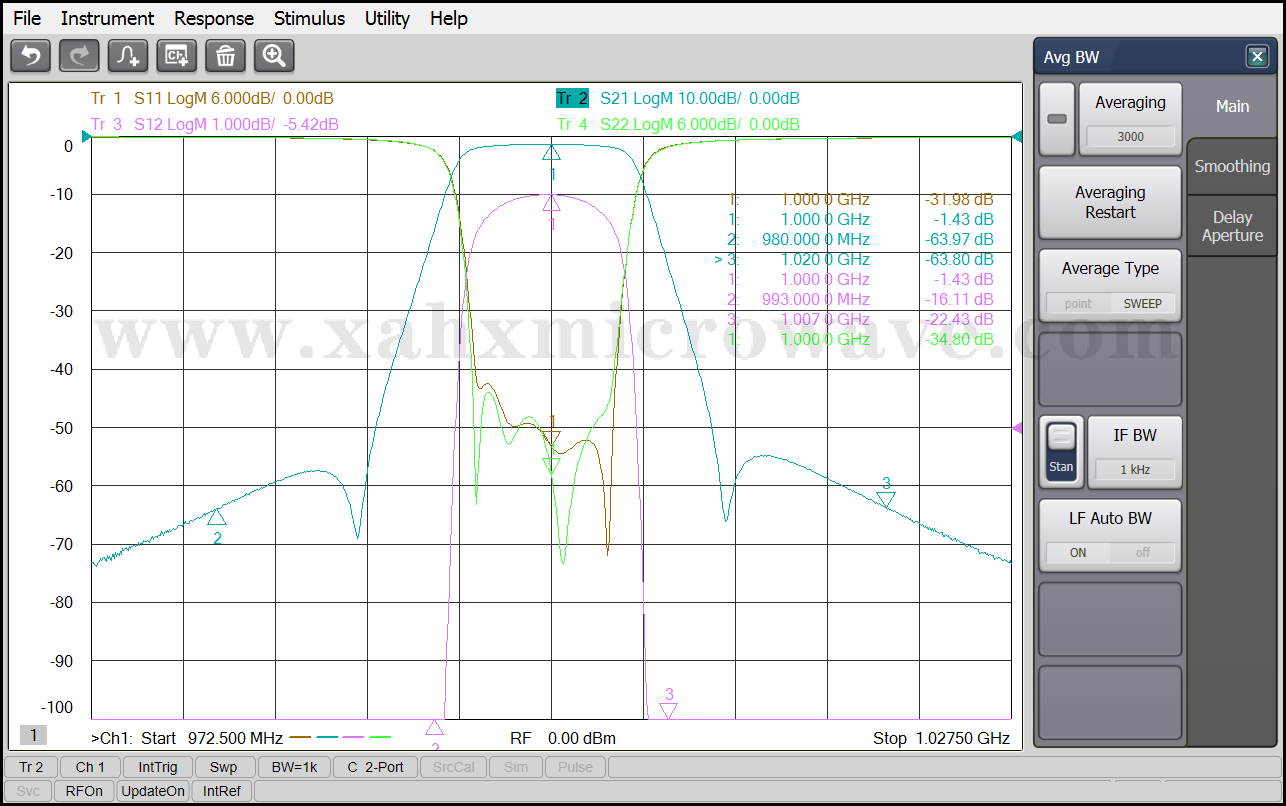

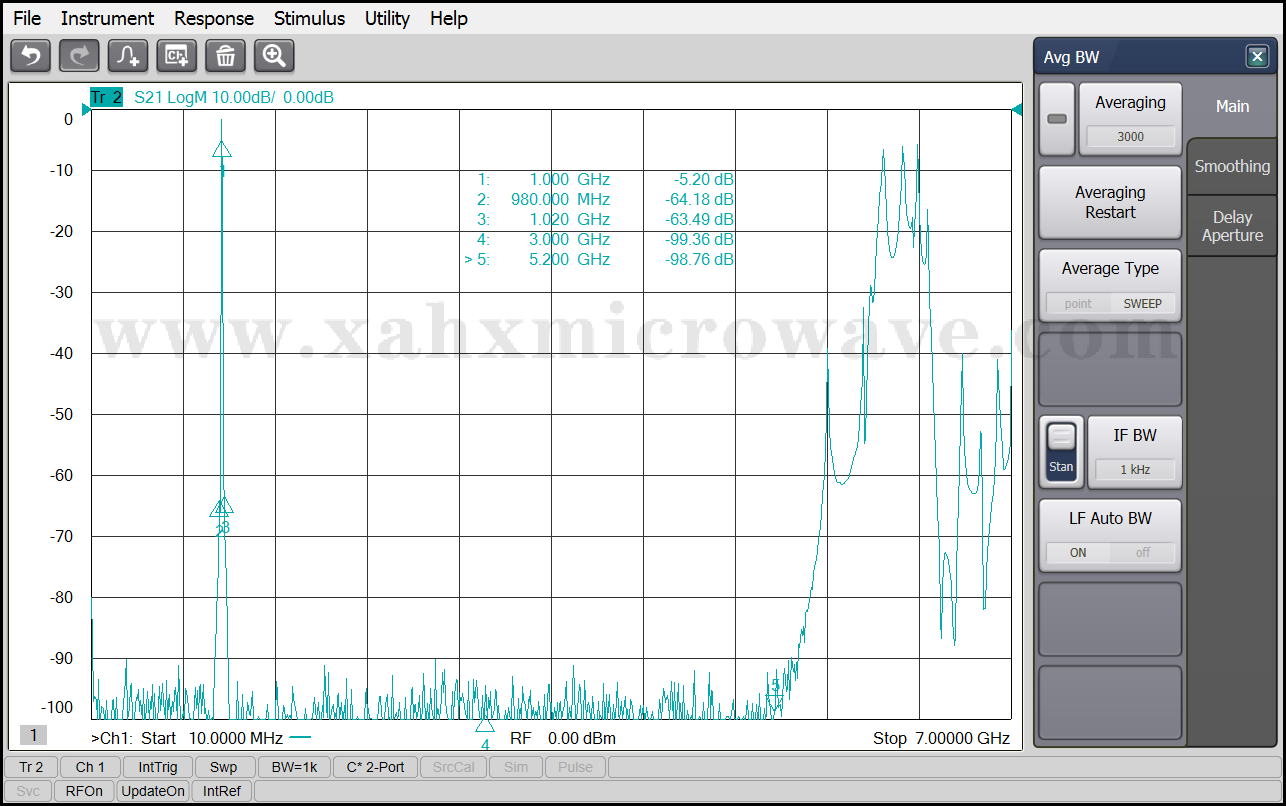

| Test Curve | |||
