| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3500MHz | |
| ● | Pass Band Bandwidth | 2000MHz (2500 ~ 4500MHz) | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 1920MHz | ≥50dB @ 4700 ~ 4770MHz |
| ≥50dB @ 1920 ~ 2180MHz | ≥80dB @ 4770 ~ 10000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

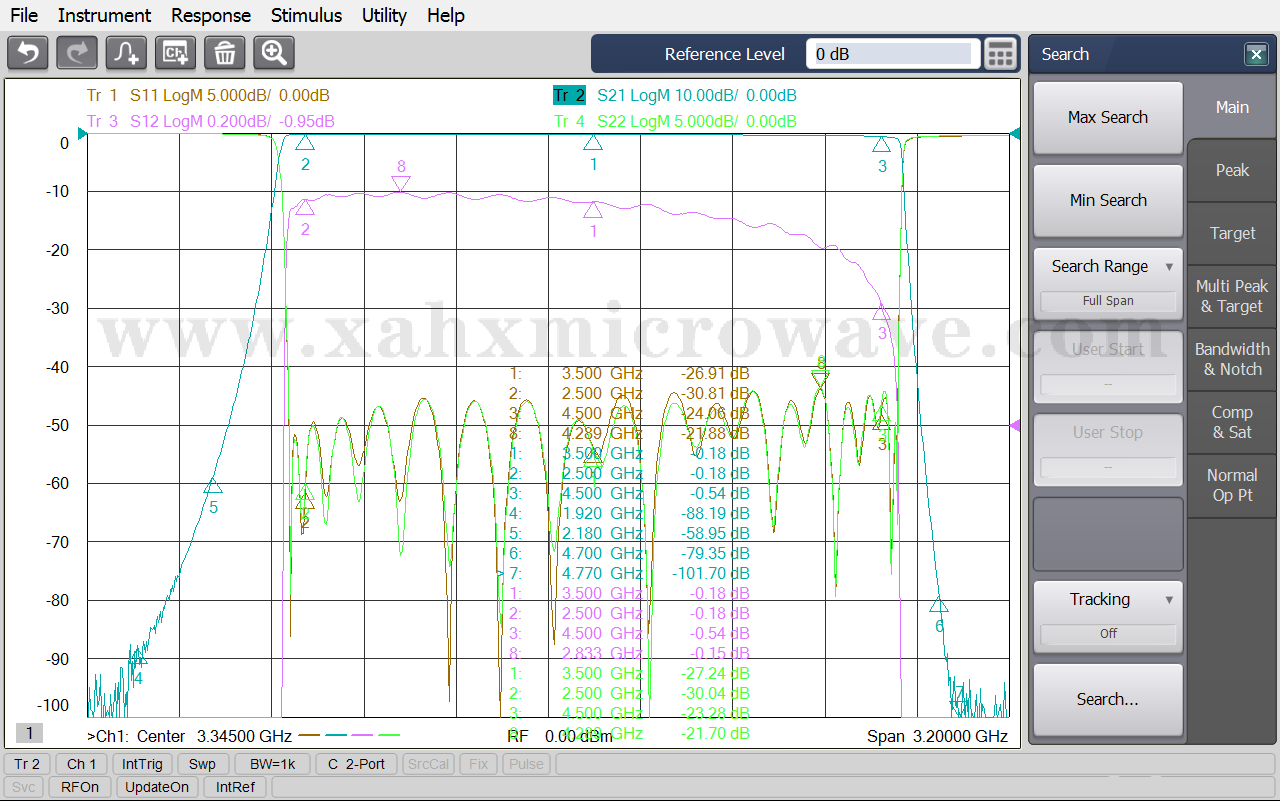

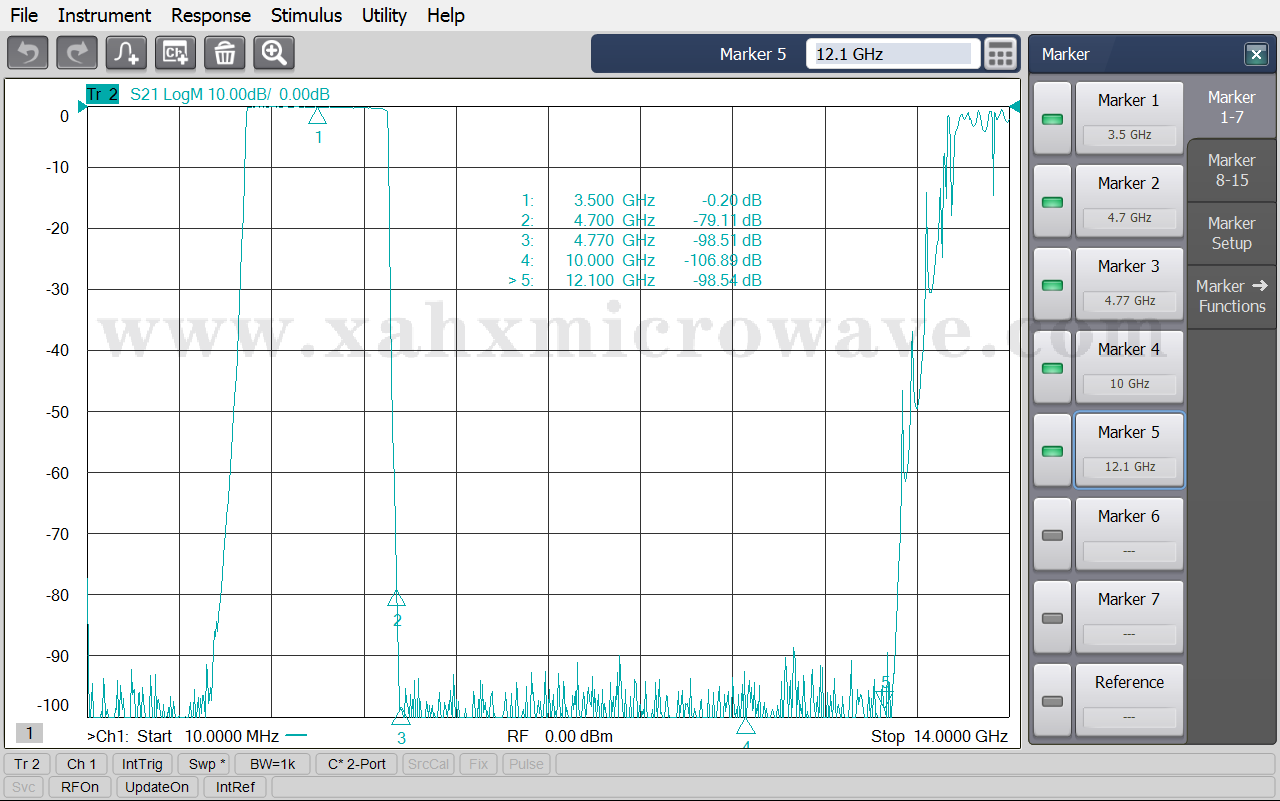

| Test Curve | |||
