Band Pass Filter

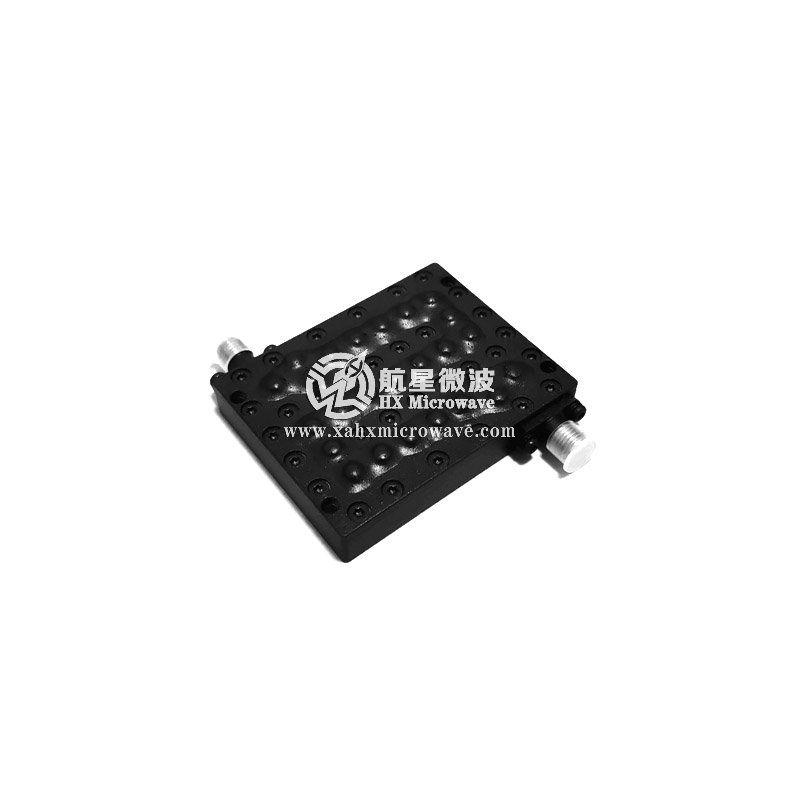

6500-6800MHz Cavity Band Pass Filter

Technical Data Sheet
●	Center Frequency(F0)	6650MHz
●	Pass Band Frequency	6500 ~ 6800MHz
●	Pass Band Insertion Loss	≤1.4dB
●	Pass Band Ripple	≤0.4dB
●	Pass Band Return Loss	≥23dB
●	Pass Band Group Delay Variation	≤2.8ns
●	Stop Band Rejection	≥80dB @ DC ~ 6270MHz	≥20dB @ 6900 ~ 7000MHz
		≥70dB @ 6270 ~ 6300MHz	≥70dB @ 7000 ~ 7030MHz
		≥20dB @ 6300 ~ 6400MHz	≥80dB @ 7030 ~ 15000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

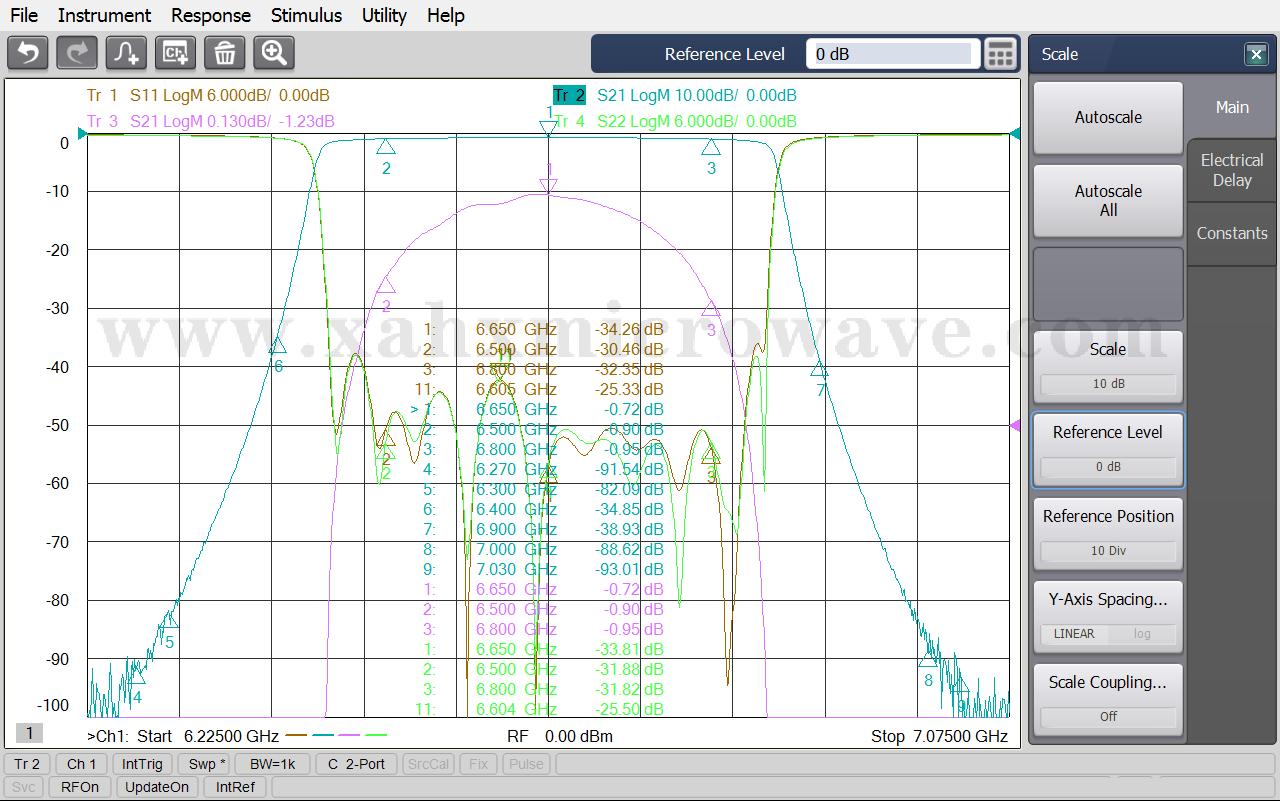

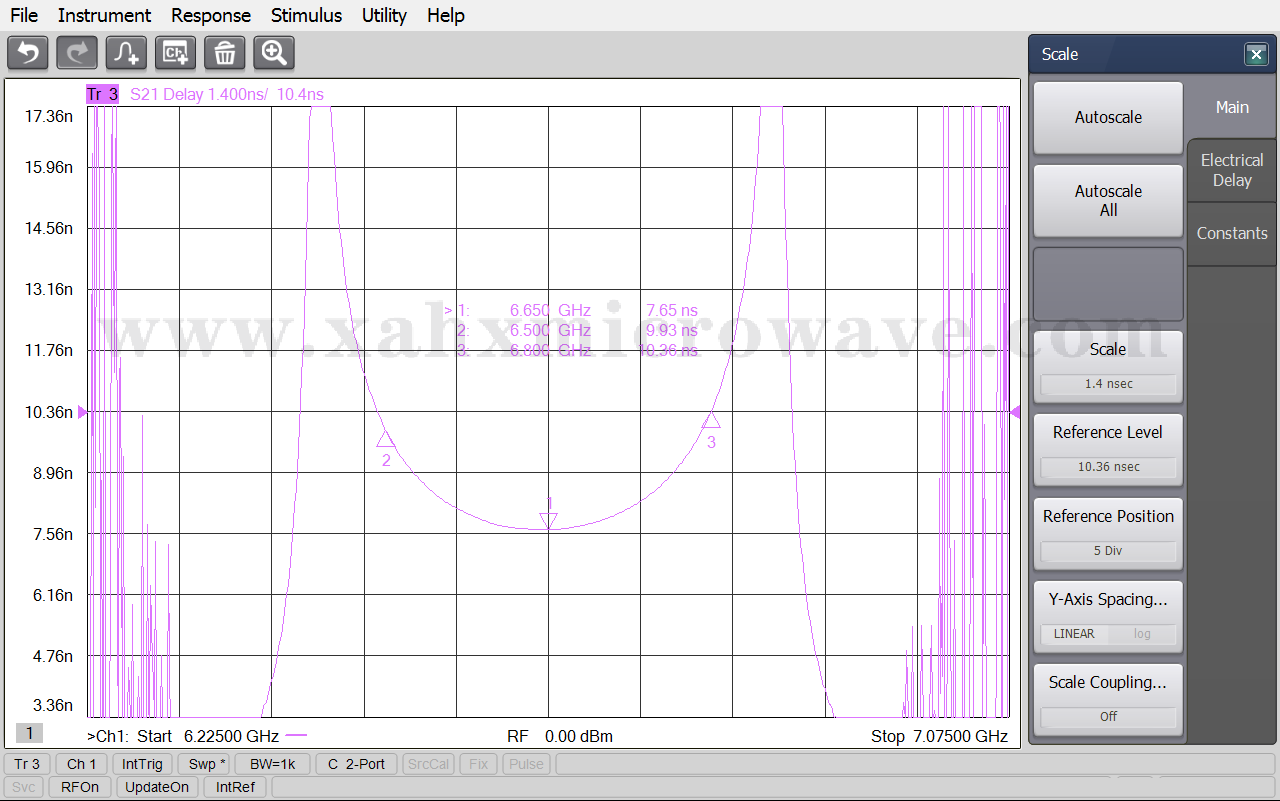

Test Curve
