| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 7000MHz | |
| ● | Pass Band Frequency | 6500 ~ 7500MHz | |
| ● | Pass Band Insertion Loss | ≤1.8dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 6000MHz | ≥30dB @ 7700 ~ 8000MHz |
| ≥30dB @ 6000 ~ 6300MHz | ≥50dB @ 8000 ~ 15000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | The Original Silver Color | |
| ● | Temperature Range | -20℃ ~ +60℃ | |

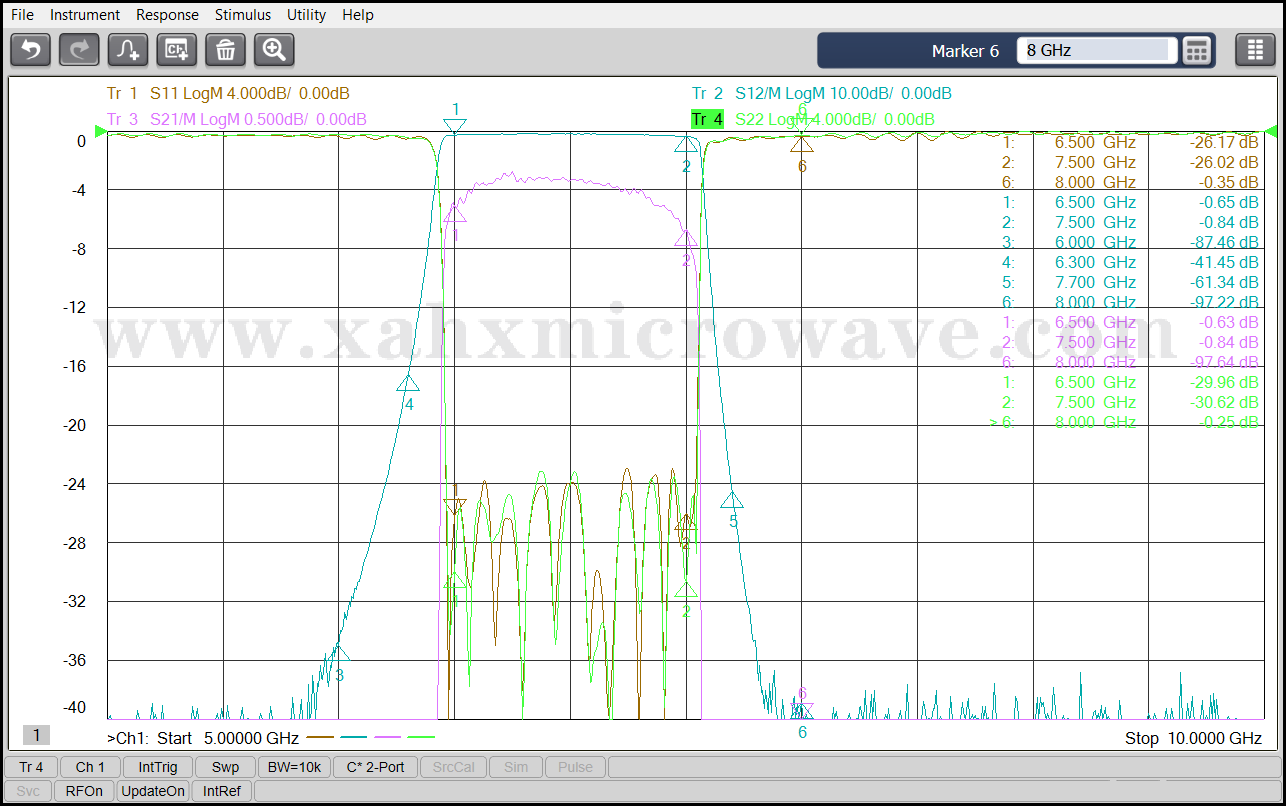

| Test Curve | |||
