| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1470MHz | |
| ● | Pass Band Frequency | 1450 ~ 1490MHz | |
| ● | Pass Band Insertion Loss | ≤0.6dB | |
| ● | Pass Band Ripple | ≤0.25dB | |
| ● | Pass Band Return Loss | ≥22dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 1380MHz | ≥40dB @ 1560 ~ 4000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 40W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

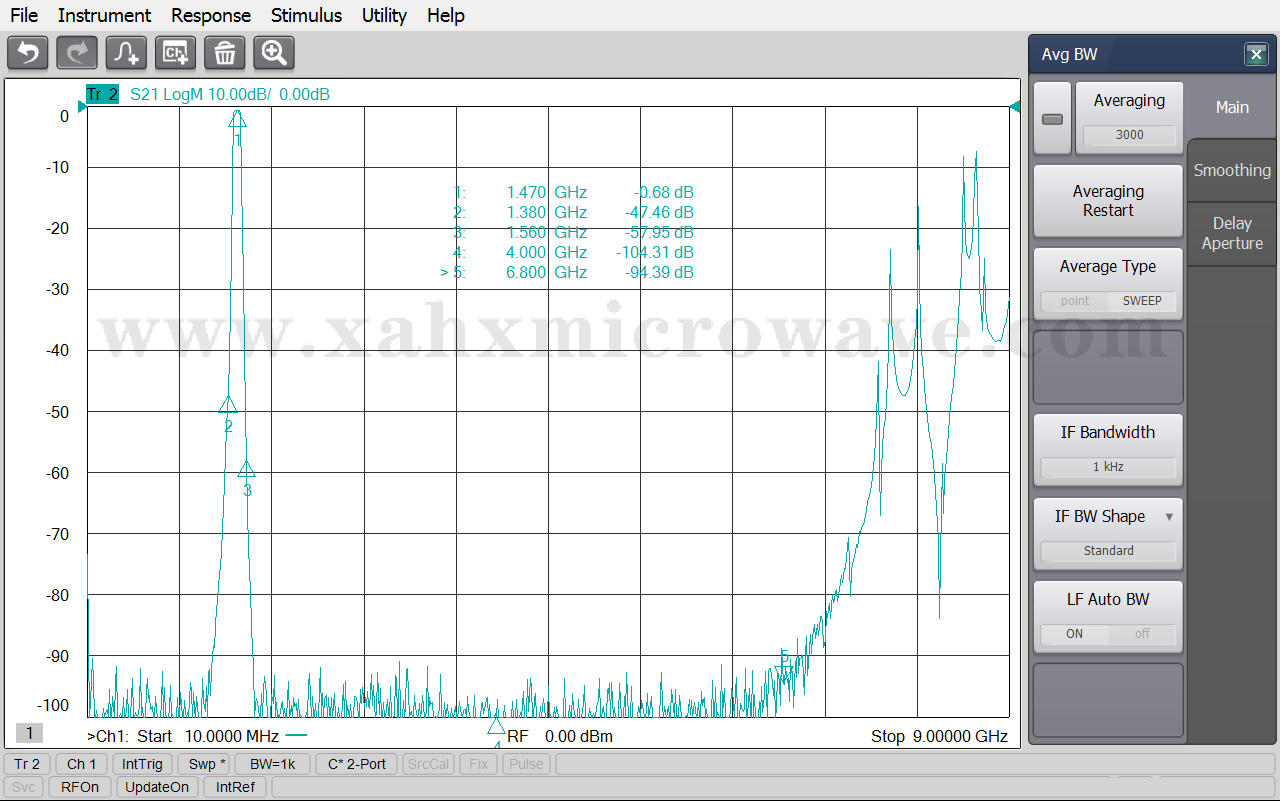

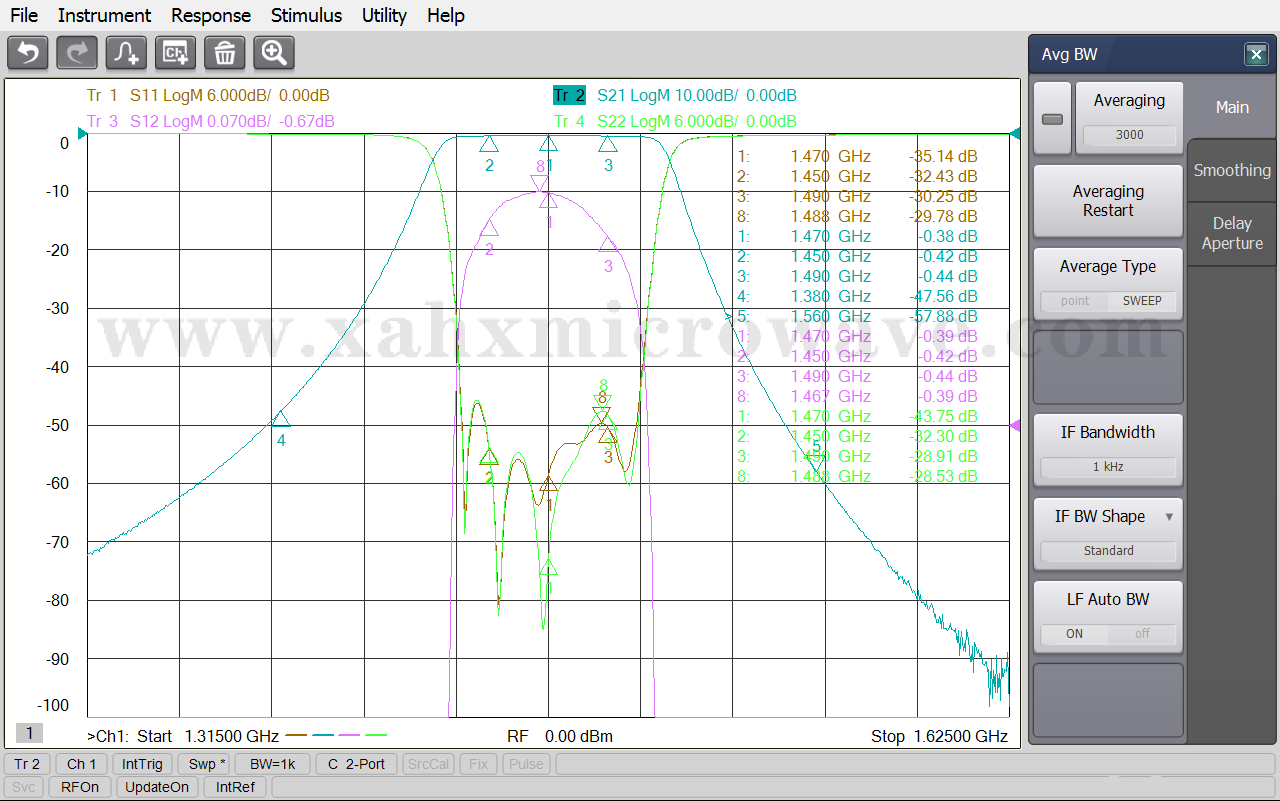

| Test Curve | |||
