Technical Data Sheet
●	Center Frequency (F0)	932MHz
●	Pass Band Frequency	930～934MHz
●	Pass Band Insertion Loss	≤2.7dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Rejection	≥80dB @ F0±20MHz  (DC～912MHz、952～1500MHz)
●	Impedance	50 ohms
●	Power Handling	≤20W
●	Connectors	N-Male / N-Female
●	Operating Temperature	0℃～+40℃
●	Surface Finish	Black Paint

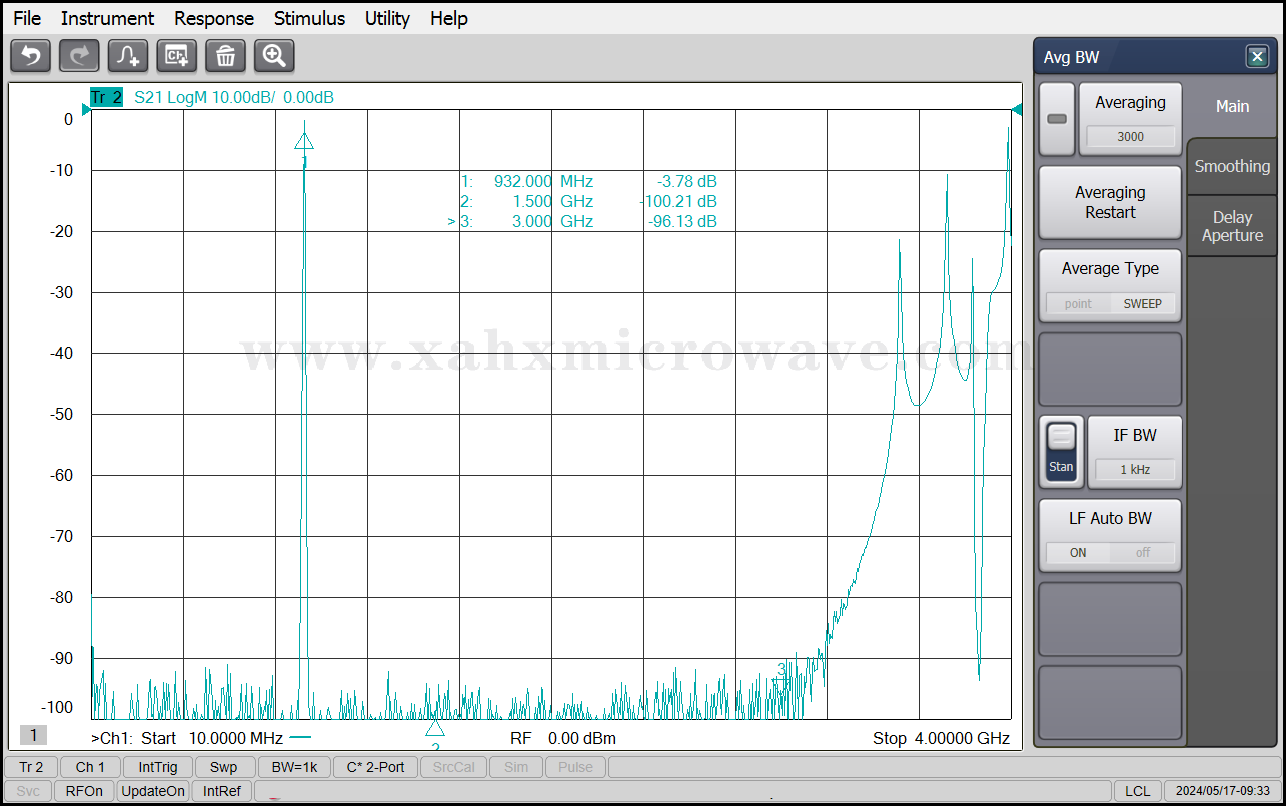

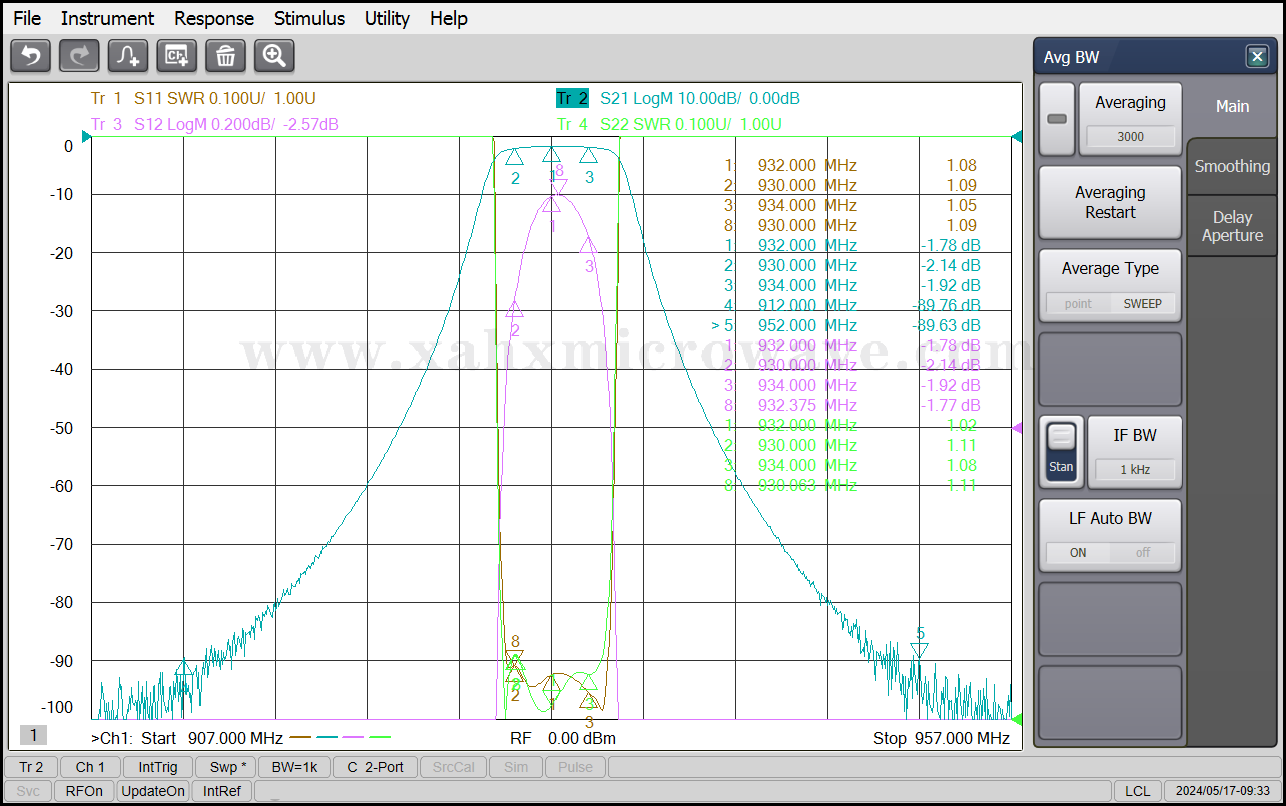

Test Curve
