Technical Data Sheet
●	Center Frequency(F0)	24GHz
●	Pass Band Frequency	23 ~ 25GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Attenuation	≥50dB @ DC ~ 22GHz  ≥50dB @ 26 ~ 44GHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

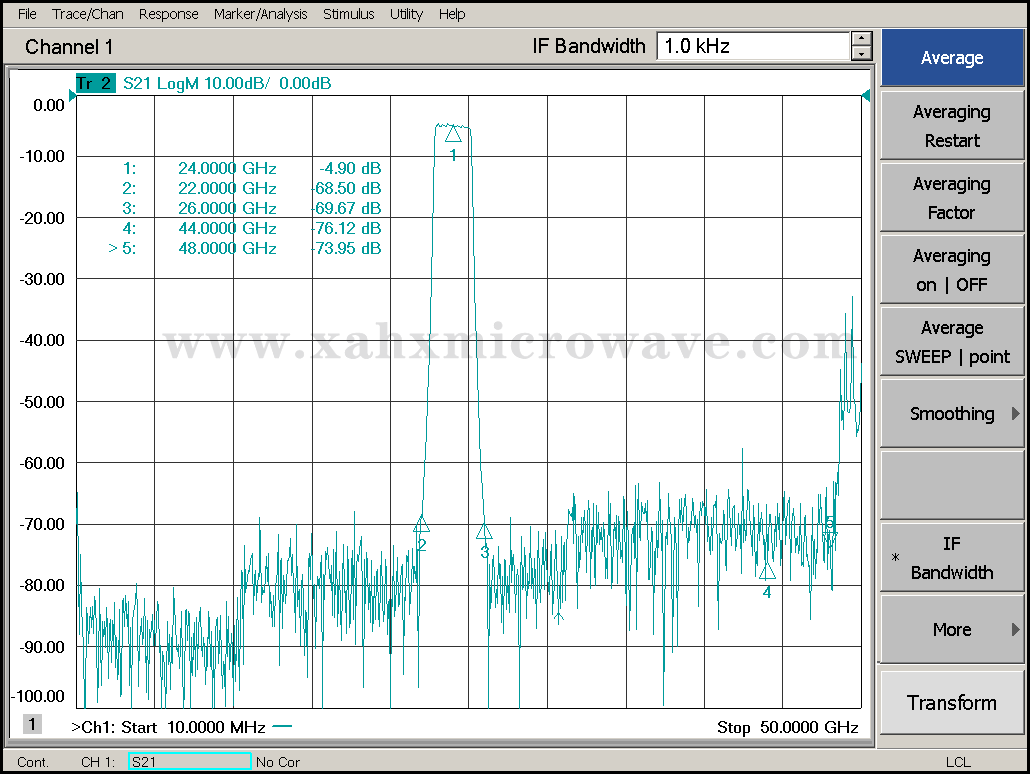

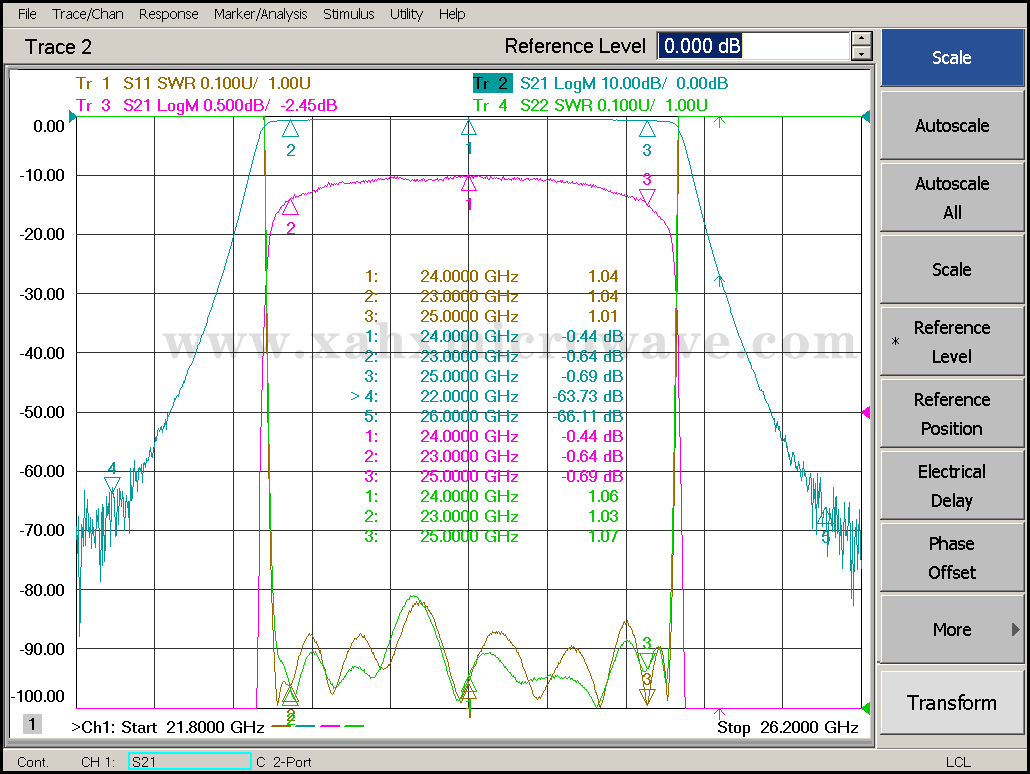

Test Curve
