Technical Data Sheet
●	Center Frequency(F0)	2350MHz
●	Pass Band Frequency	2300 ~ 2400MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band VSWR	≤1.3:1
●	Stop Band Rejection	≥50dB @ Fc±80MHz (DC ~ 2220MHz , 2480 ~ 5000MHz)
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

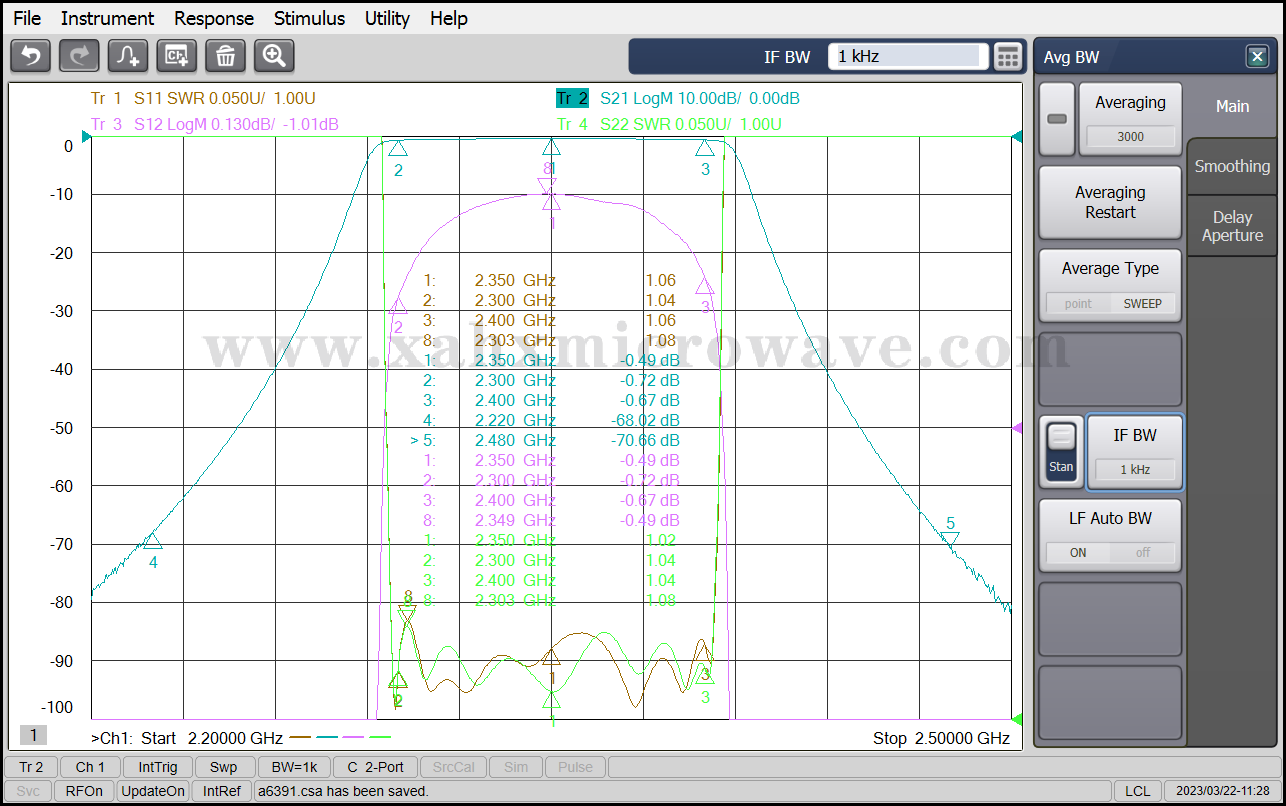

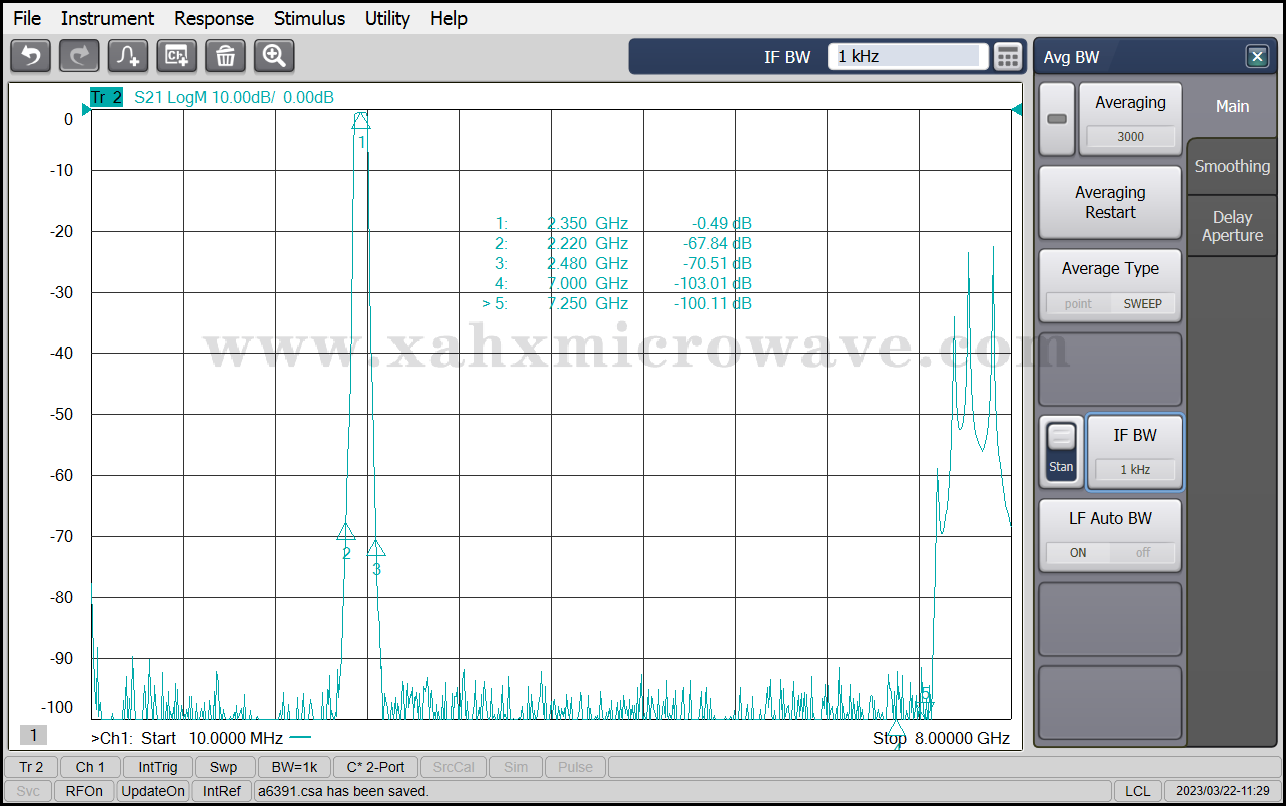

Test Curve
