  • 1805-1880MHz Cavity Band Pass Filter

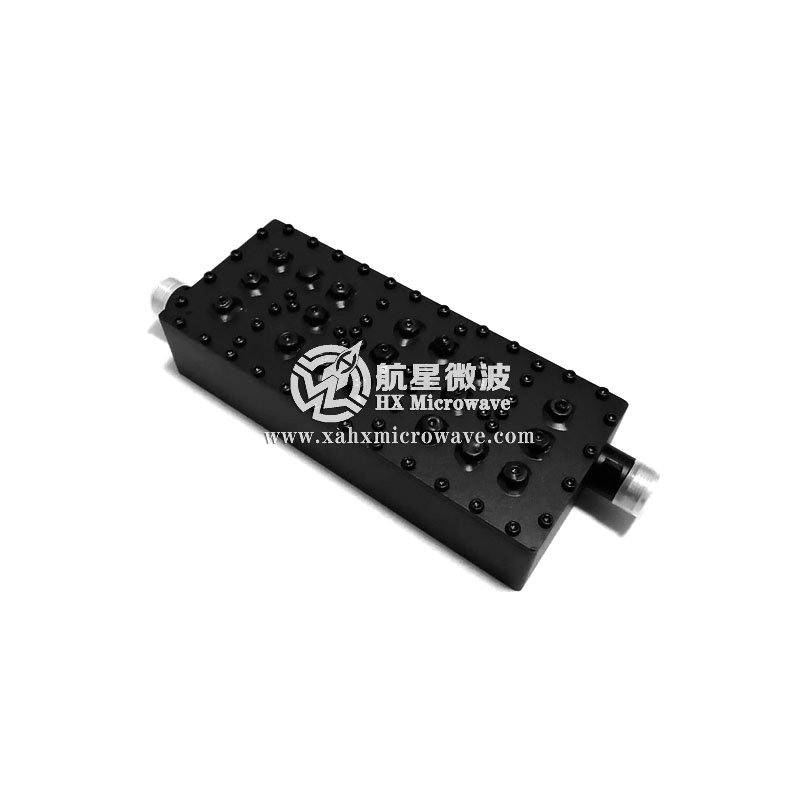

1805-1880MHz Cavity Band Pass Filter

1805-1880MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA310
  • Pass Band Frequency：1805-1880MHz
  • Stop Band Rejection：≥50dB
  • Connectors：N-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 1842.5MHz
● Pass Band Frequency 1805 ~ 1880MHz
● Pass Band Insertion Loss ≤2.0dB
● Pass Band Ripple ≤1.2dB
● Pass Band VSWR ≤1.3:1
● Stop Band Rejection ≥50dB @ DC ~ 1795MHz ≥50dB @ 1890 ~ 4000MHz
● Impedance 50 Ohms
● Power Handling 20W Max.
● Connectors N-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
