  • 2110-2170MHz Cavity Band Pass Filter

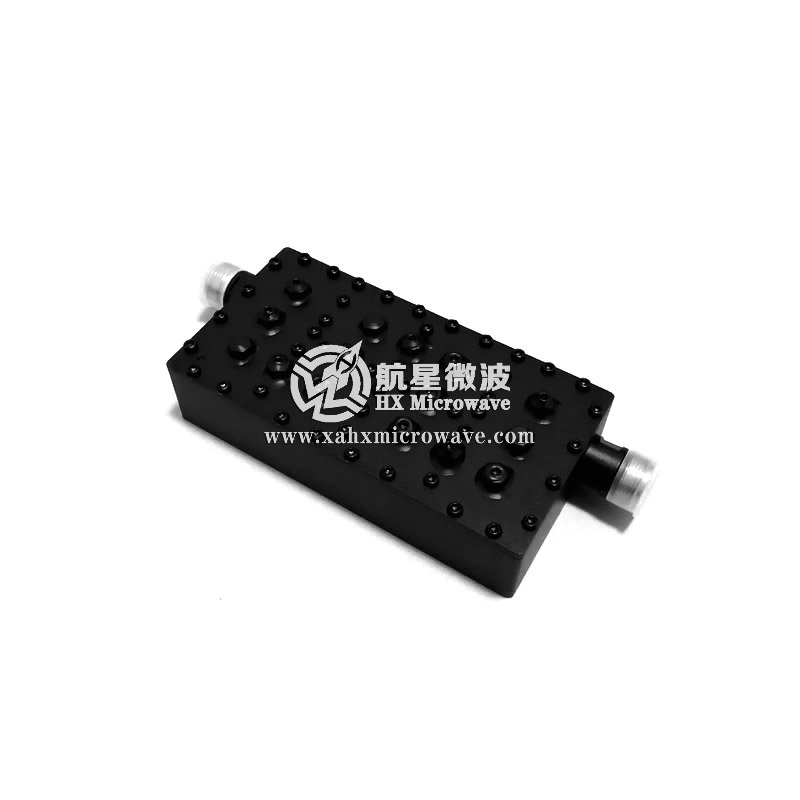

2110-2170MHz Cavity Band Pass Filter

2110-2170MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA311
  • Pass Band Frequency：2110-2170MHz
  • Stop Band Attenuation：≥50dB
  • Connectors：N-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 2140MHz
● Pass Band Frequency 2110 ~ 2170MHz
● Pass Band Insertion Loss ≤1.5dB
● Pass Band Ripple ≤0.8dB
● Pass Band VSWR ≤1.3:1
● Stop Band Rejection ≥50dB @ DC ~ 2090MHz ≥50dB @ 2190 ~ 5000MHz
● Impedance 50 Ohms
● Power Handling 20W Max.
● Connectors N-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
