  • 2483.5-2500MHz Cavity Band Pass Filter

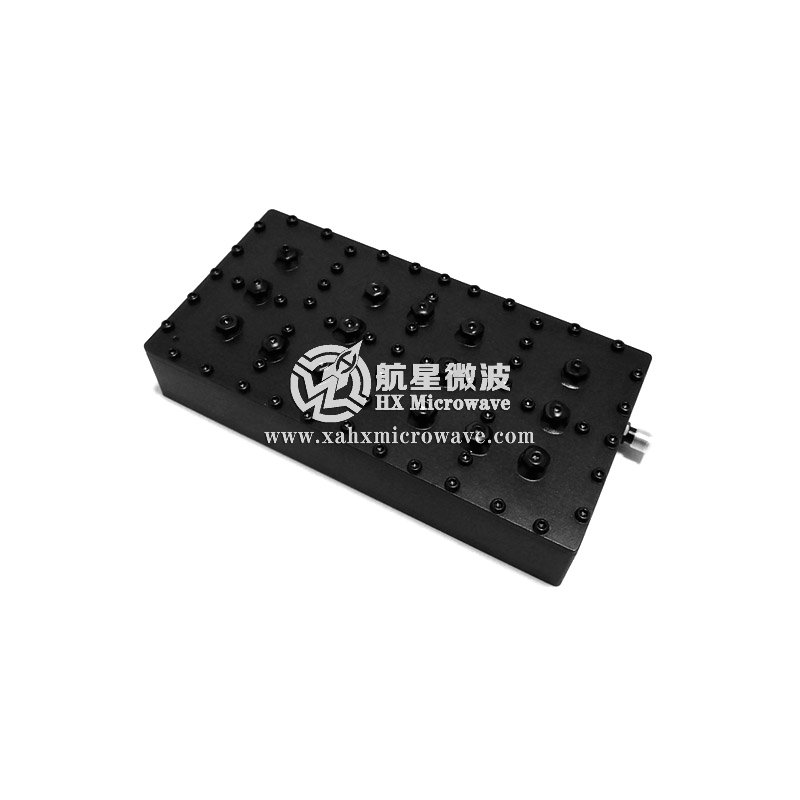

2483.5-2500MHz Cavity Band Pass Filter

2483.5-2500MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA312
  • Pass Band Frequency：2483.5-2500MHz
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 2491.75MHz
● Pass Band Frequency 2483.5 ~ 2500MHz
● Pass Band Insertion Loss ≤2.0dB
● Pass Band Ripple ≤0.6dB
● Pass Band VSWR ≤1.3:1
● Stop Band Rejection ≥40dB @ DC ~ 2476.75MHz ≥40dB @ 2506.75 ~ 5000MHz
● Impedance 50 Ohms
● Power Handling 20W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃

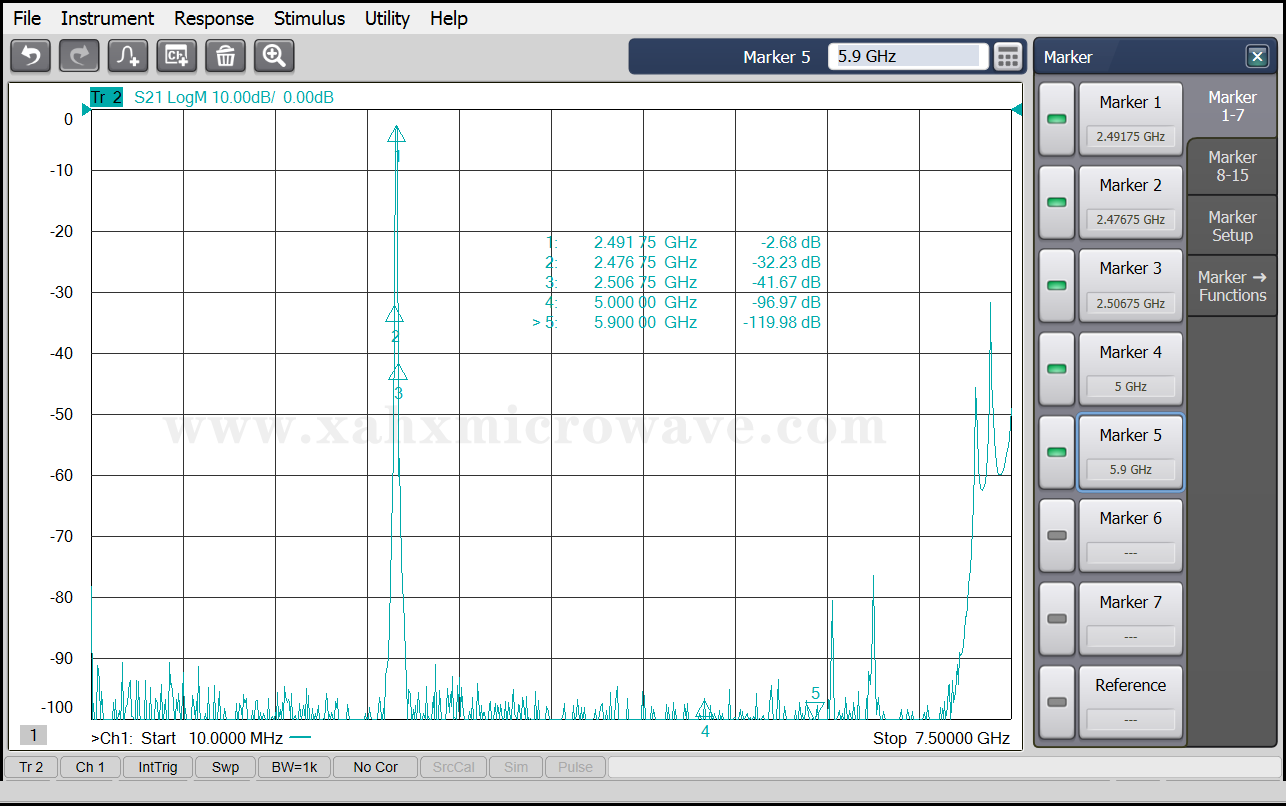

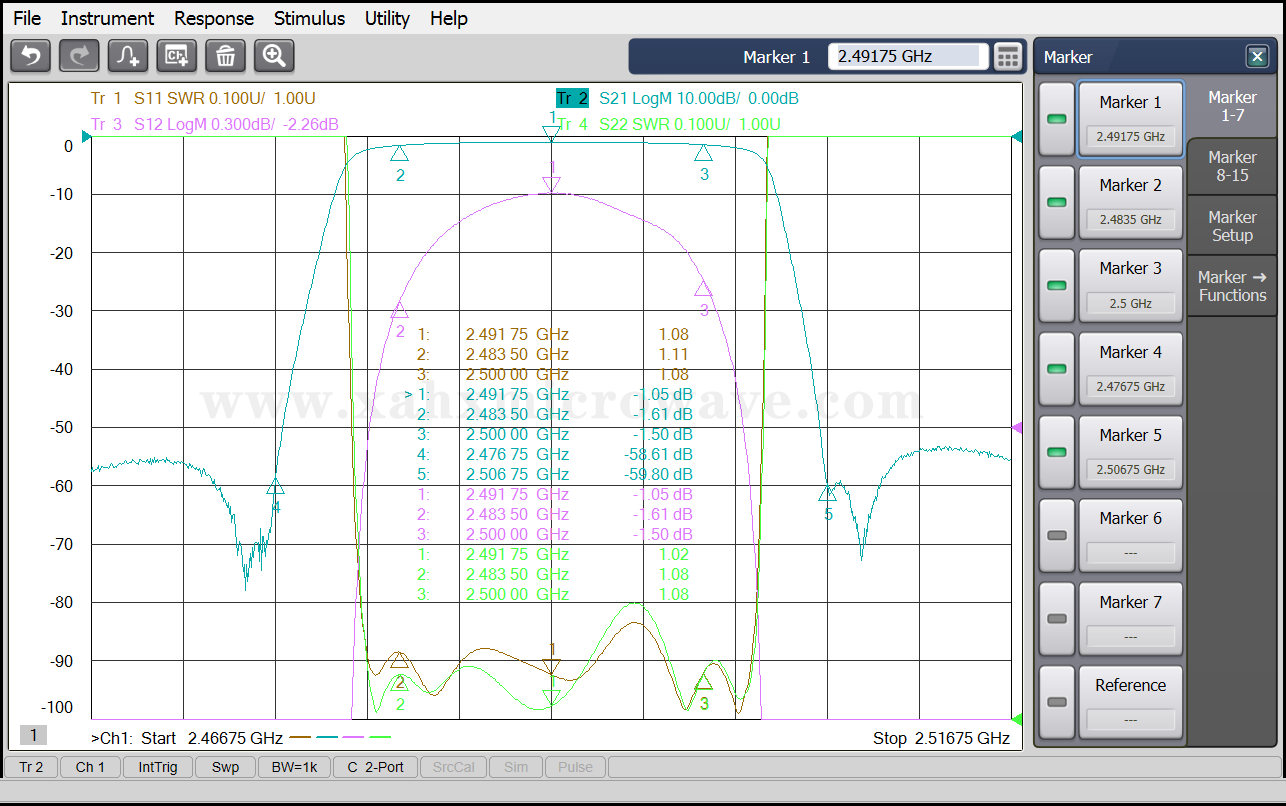

Test Curve
