  • 925-960MHz Cavity Band Pass Filter

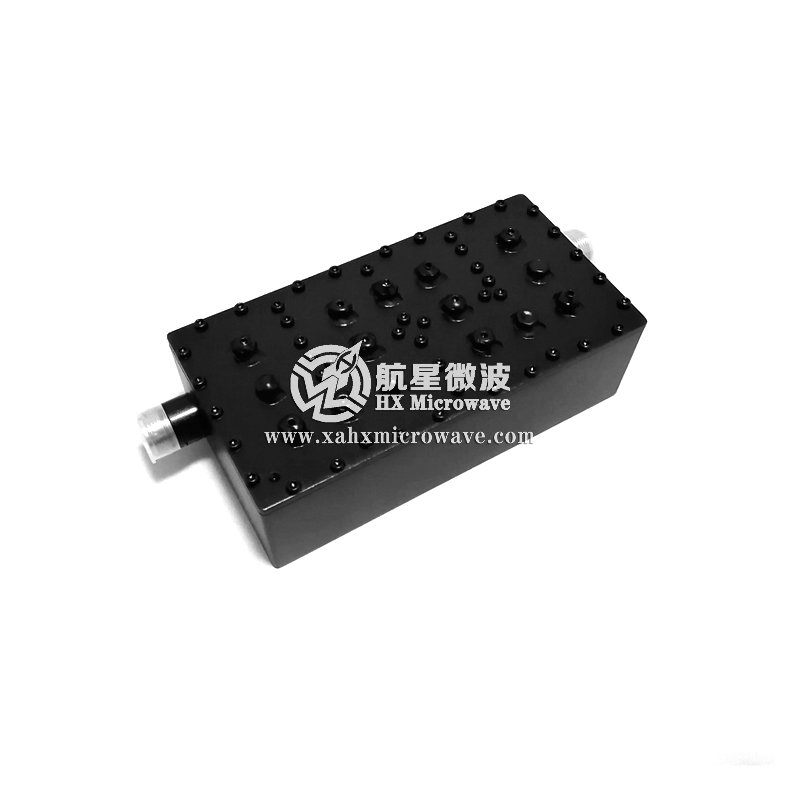

925-960MHz Cavity Band Pass Filter

925-960MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA364X
  • Pass Band Frequency：925-960MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：N-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 942.5MHz
● Pass Band Frequency 925 ~ 960MHz
● Pass Band Insertion Loss ≤1.2dB
● Pass Band Ripple ≤0.6dB
● Pass Band VSWR ≤1.22:1
● Stop Band Attenuation ≥40dB @ DC ~ 905MHz ≥40dB @ 980 ~ 2000MHz
● Impedance 50 Ohms
● Power Handling 100W Max.
● Connectors N-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
