Technical Data Sheet
●	Frequency Range	0.5 ~ 3.0GHz
●	Coupling Factor	30dB±1.0dB
●	Coupling Sensitivity	≤±1.0dB
●	Insertion Loss	≤0.4dB (Excluding Coupling Loss 0.01dB)
●	VSWR	≤1.3:1
●	Directivity	≥16dB
●	Impedance	50 Ohms
●	Power Handling	Incident: 100W Max.  /  Reflected: 100W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black

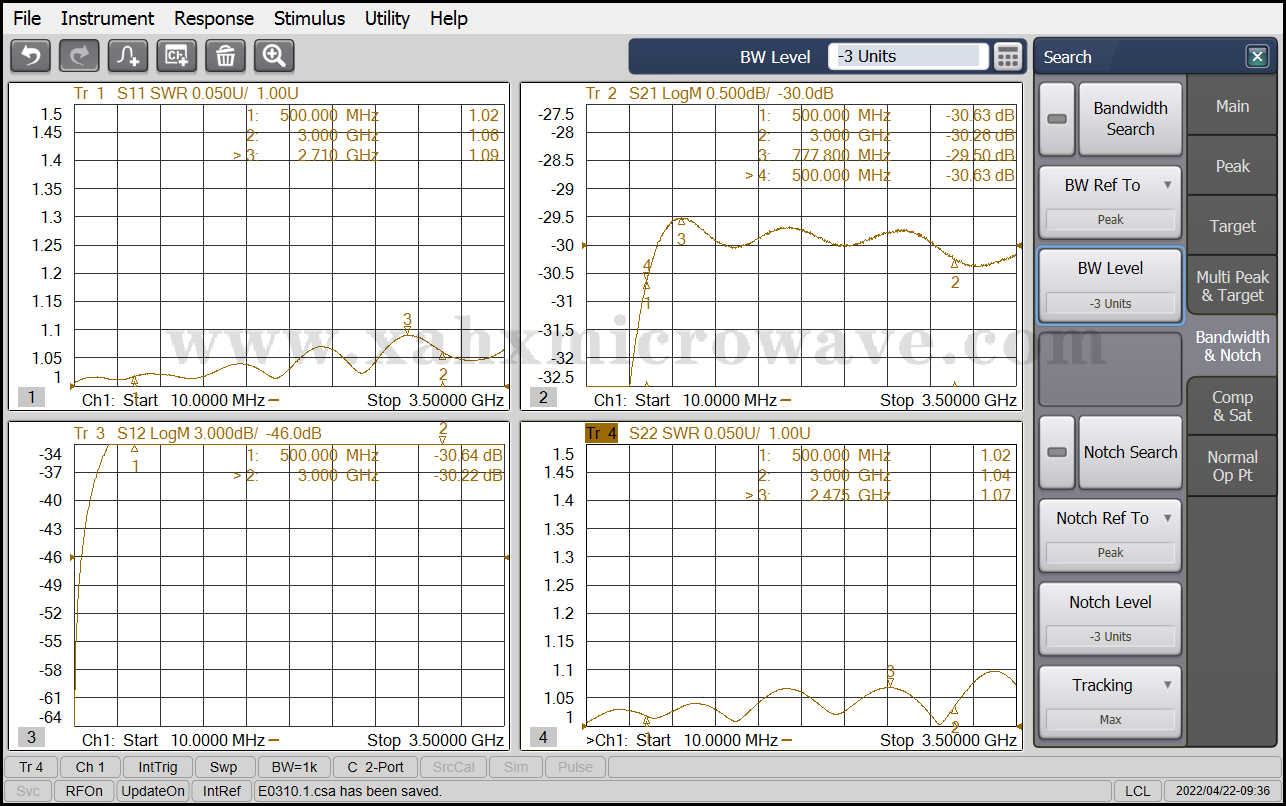

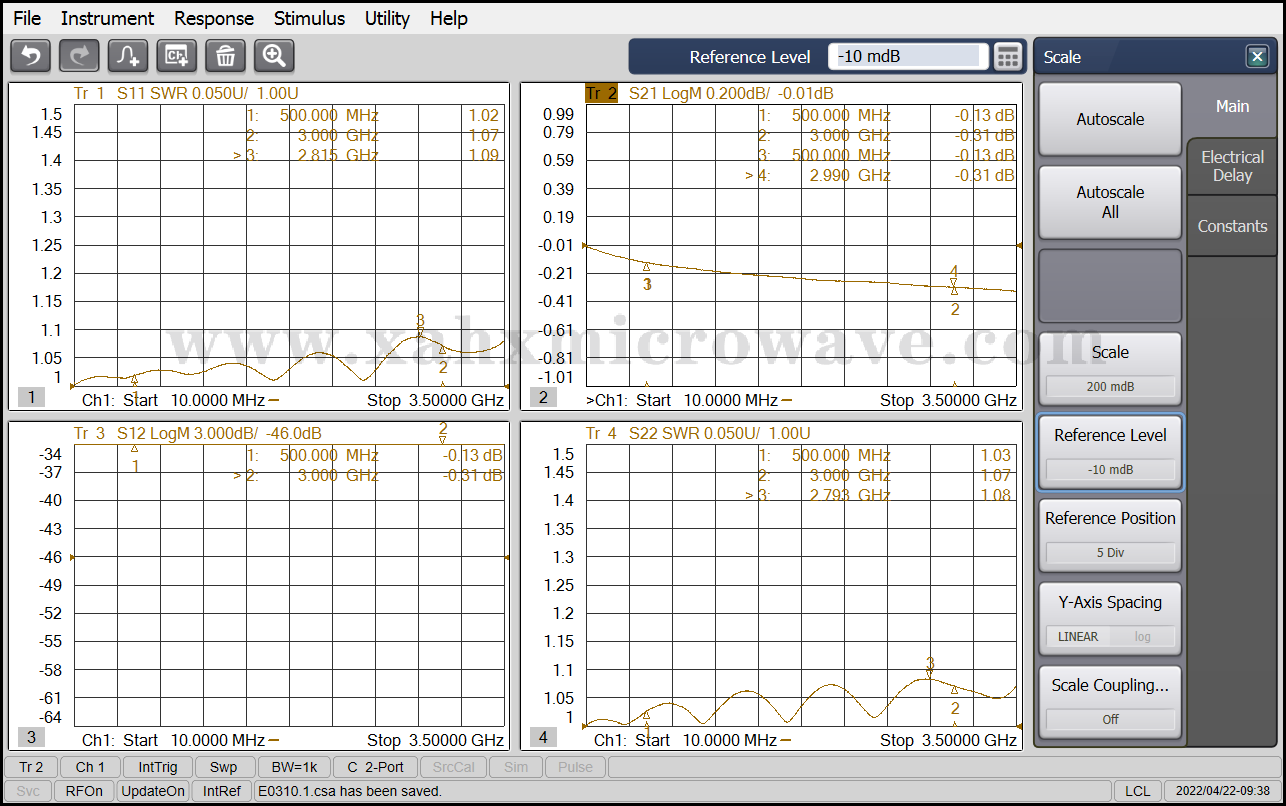

Test Curve
