Band Pass Filter

  • 1300-1700MHz Band Pass Filter

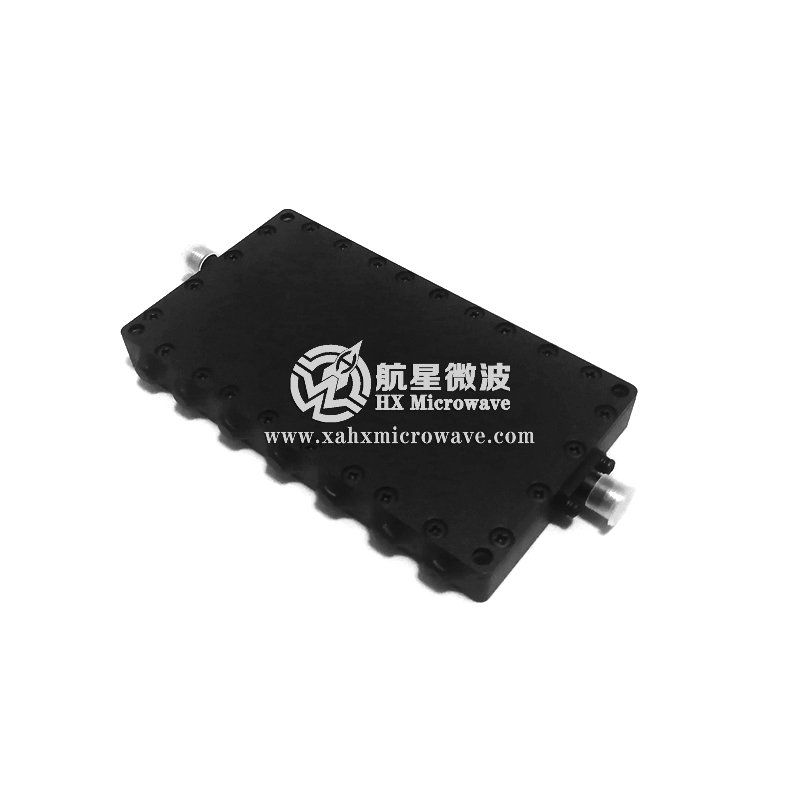

1300-1700MHz Band Pass Filter

1300-1700MHz Band Pass Filter

  • P/N:HXLBQ-DTA378
  • Pass Band Frequency:1300-1700MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Technical Data Sheet
Center Frequency(F0) 1500MHz
Pass Band Frequency 1300 ~ 1700MHz
Pass Band Insertion Loss ≤1.5dB
Pass Band Ripple ≤0.8dB
Pass Band VSWR ≤1.5:1
Stop Band Rejection ≥50dB @ DC ~ 1200MHz ≥50dB @ 1800 ~ 3200MHz
Impedance 50 Ohms
Power 2W Max.
Connectors SMA-Female
Surface Finish Painted Black
Temperature Range -30℃ ~ +70℃

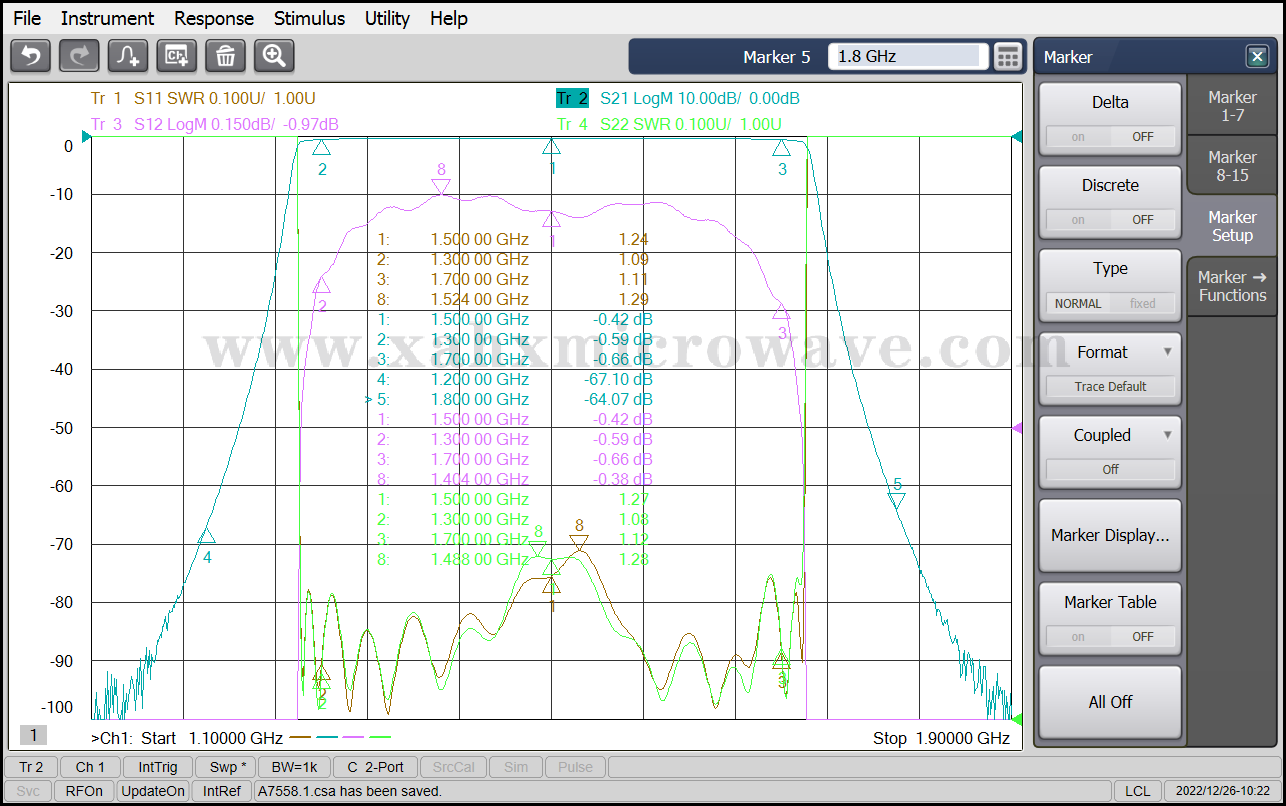

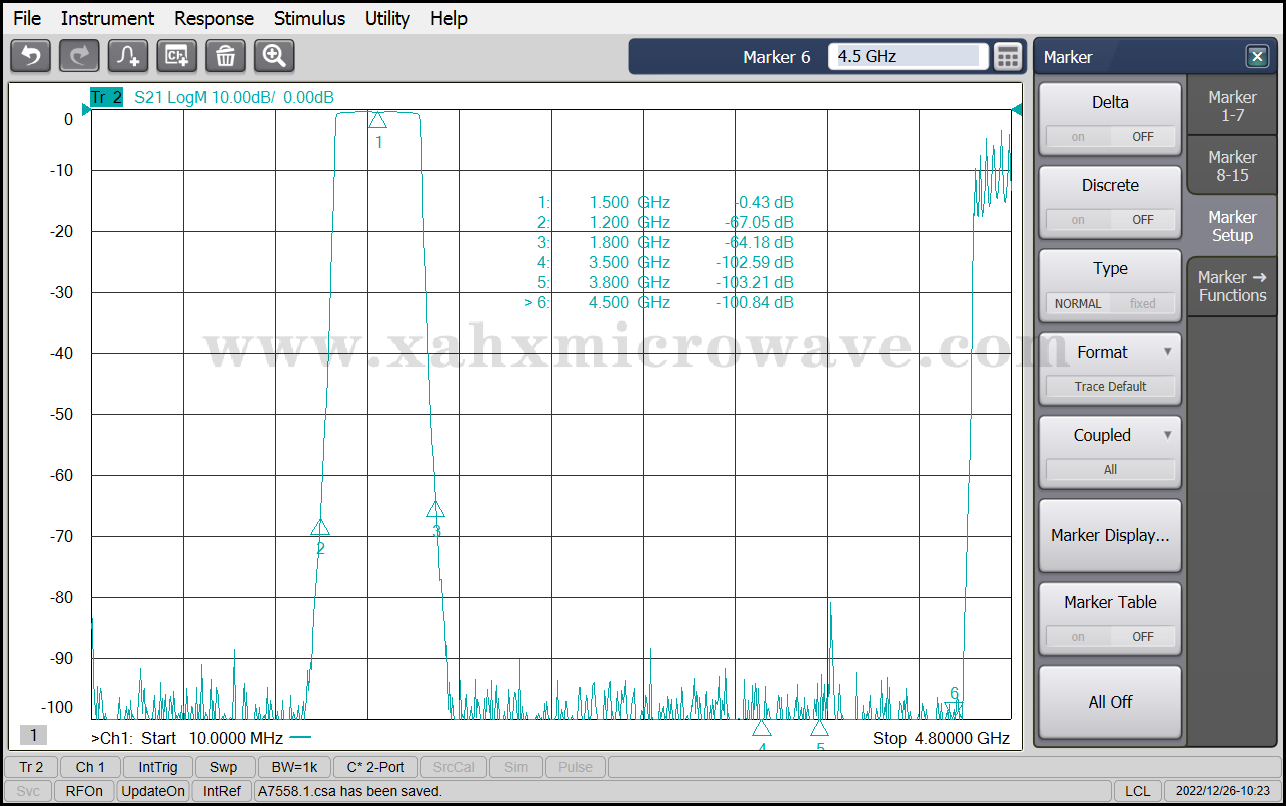

Test Curve
