| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1200MHz | |
| ● | Pass Band Bandwidth | 500MHz (950 ~ 1450MHz) | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.8dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Rejection | ≥35dB @ DC ~ 850MHz | ≥35dB @ 1550 ~ 2500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 2W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

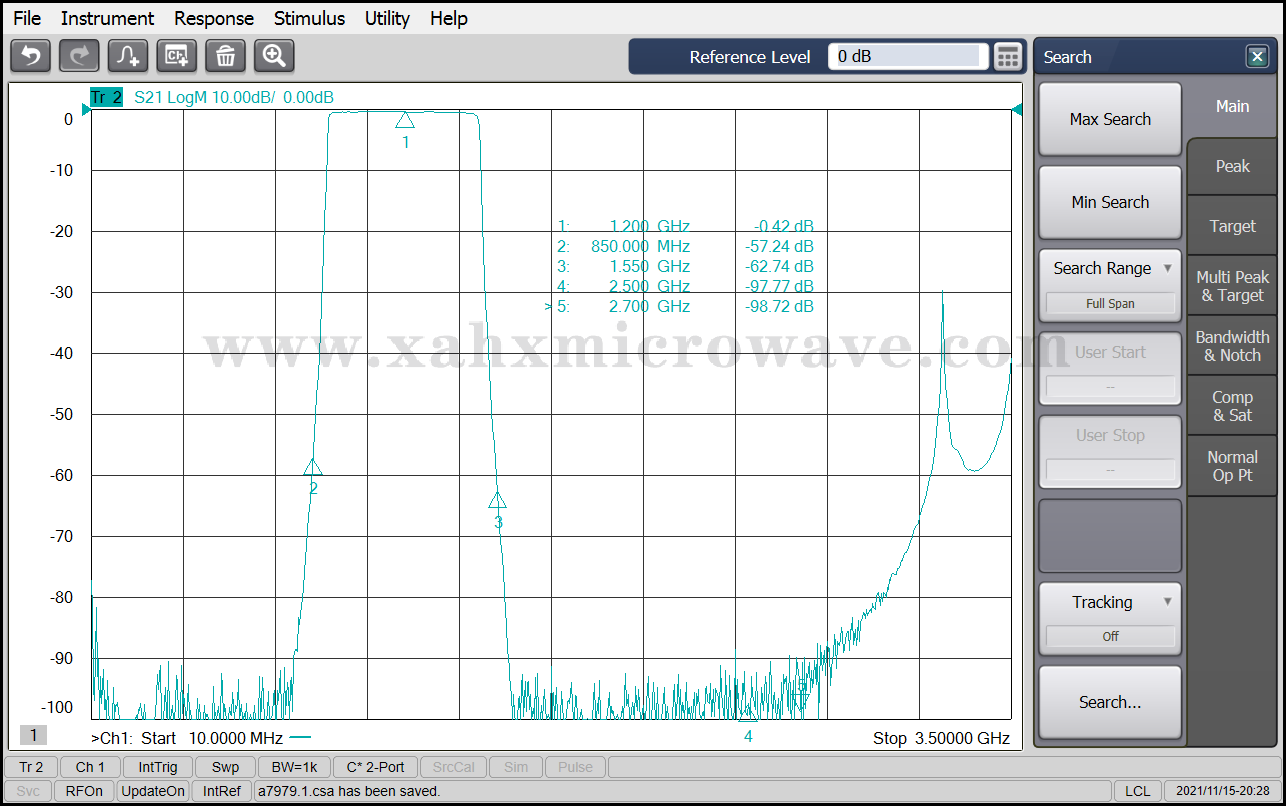

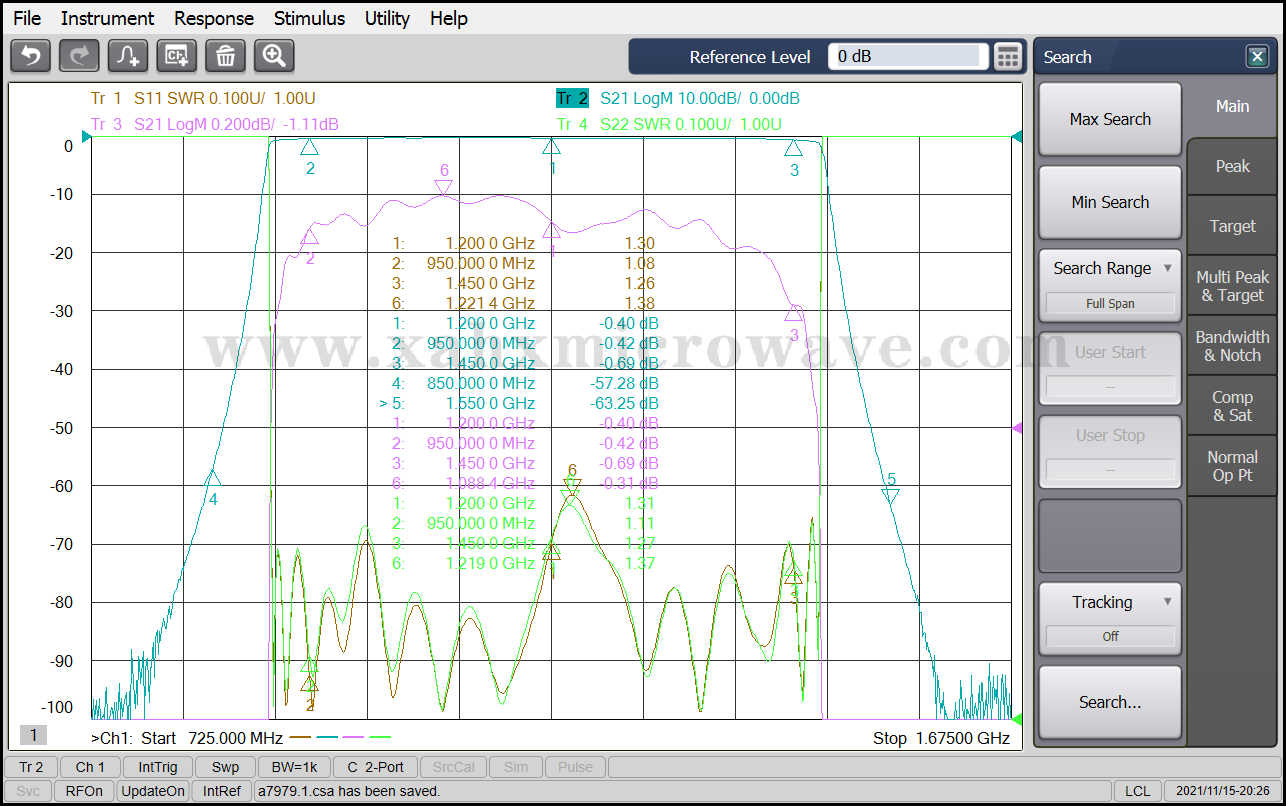

| Test Curve | |||
