Technical Data Sheet
●	Center Frequency(F0)	2750MHz
●	Pass Band Bandwidth	500MHz (2500 ~ 3000MHz)
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band VSWR	≤1.5:1
●	Stop Band Rejection	≥35dB @ DC ~ 2400MHz	≥35dB @ 3100 ~ 5000MHz
●	Impedance	50 Ohms
●	Power Handling	2W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

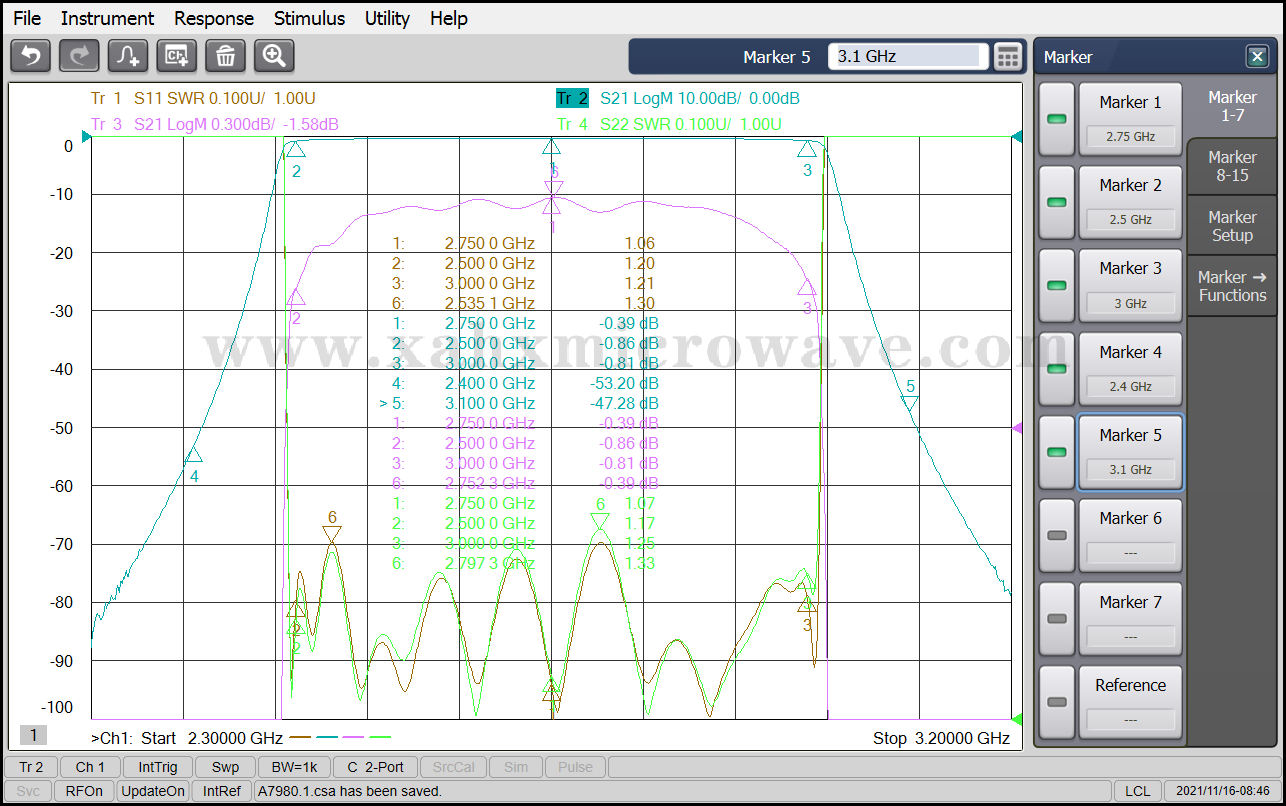

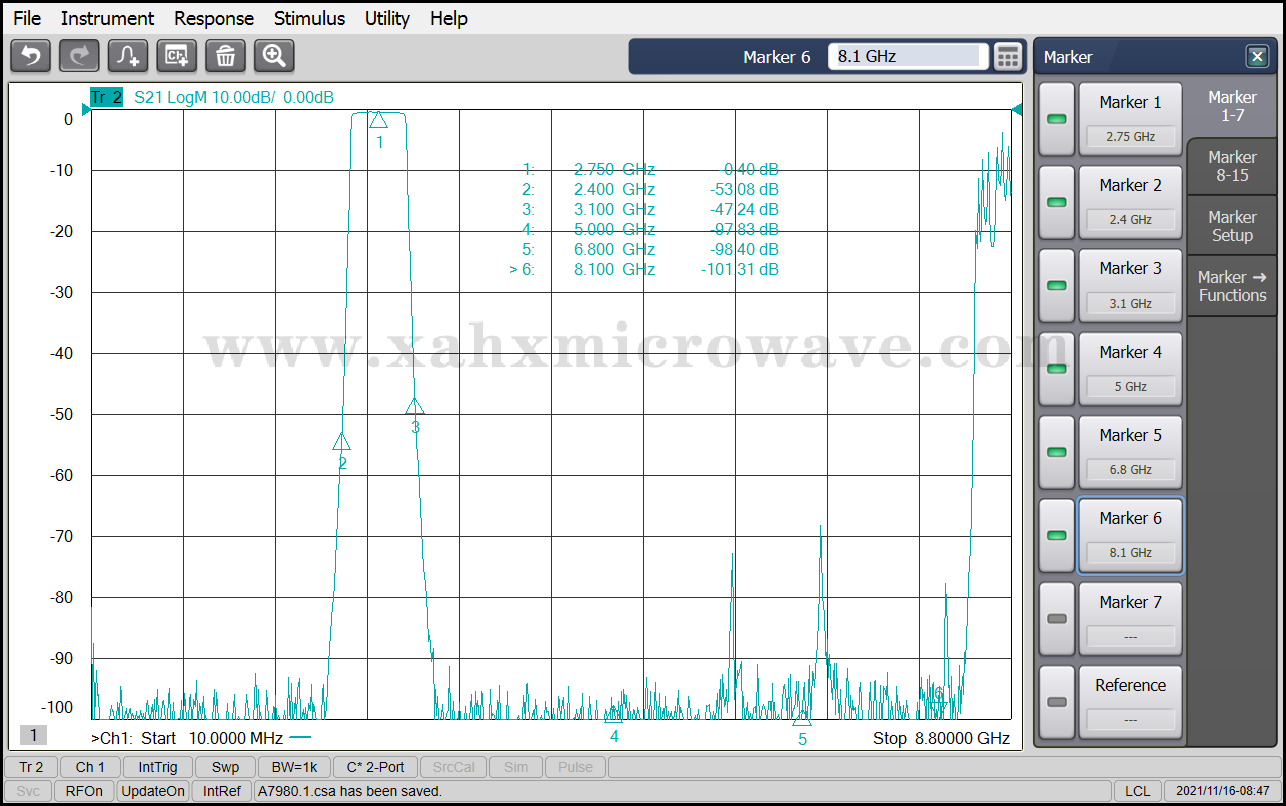

Test Curve
