  • 1-2GHz Interdigital Band Pass Filter

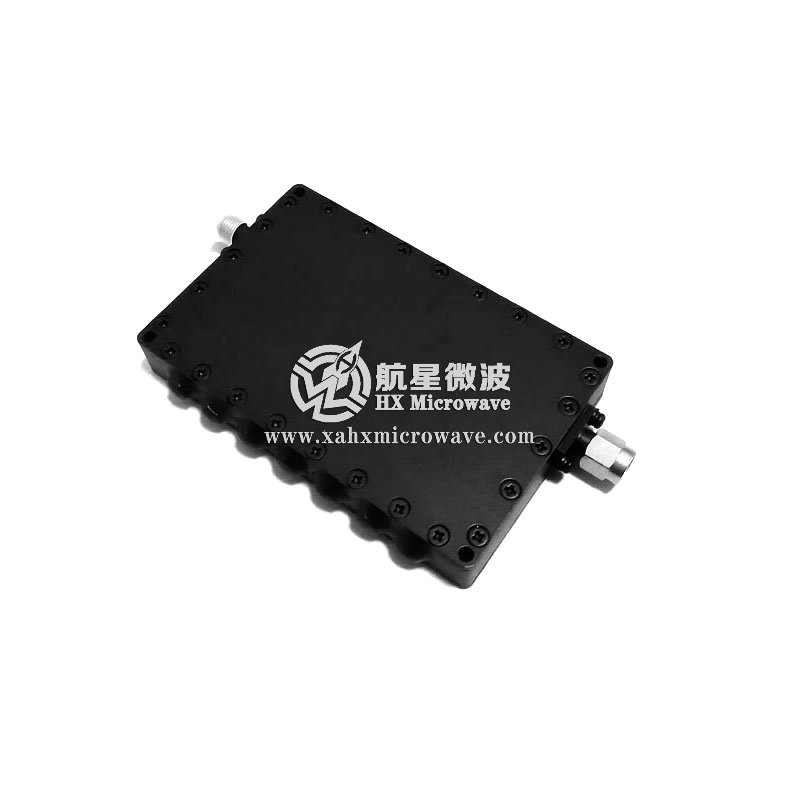

1-2GHz Interdigital Band Pass Filter

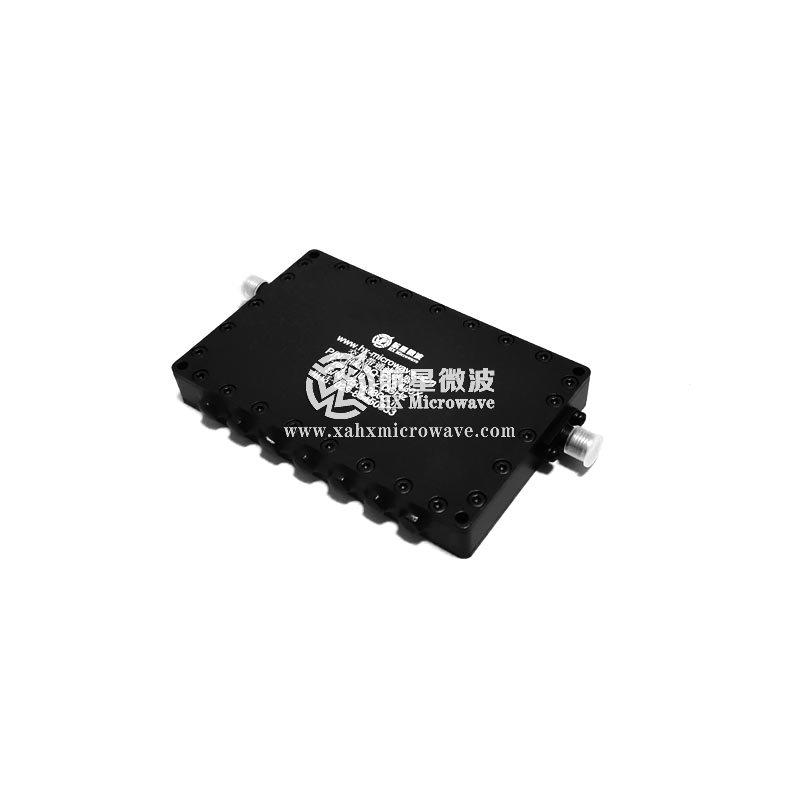

1-2GHz Interdigital Band Pass Filter

  • P/N：HXLBQ-DTA430X
  • Pass Band Frequency:1-2GHz
  • Stop Band Attenuation：≥60dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 1.5GHz
● Pass Band Frequency 1.0 ~ 2.0GHz
● Pass Band Insertion Loss ≤1.0dB
● Pass Band VSWR ≤1.5:1
● Stop Band Rejection ≥60dB @ DC ~ 0.8GHz ≥60dB @ 2.2 ~ 3.4GHz
● Impedance 50 Ohms
● Power Handling 5W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
