Technical Data Sheet
●	Center Frequency(F0)	2300MHz
●	3.0dB Bandwidth	About: 200MHz (2200 ~ 2400MHz)
●	Insertion Loss @ F0	≤0.8dB @ 2300MHz
●	VSWR	≤1.22:1 @ 160MHz Bandwidth (2220 ~ 2380MHz)
●	Stop Band Rejection	≥70dB @ DC ~ 2075MHz	≥70dB @ 2525 ~ 7000MHz
●	Impedance	50 Ohms
●	Power	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃
●	Dimensions	120*22*24mm

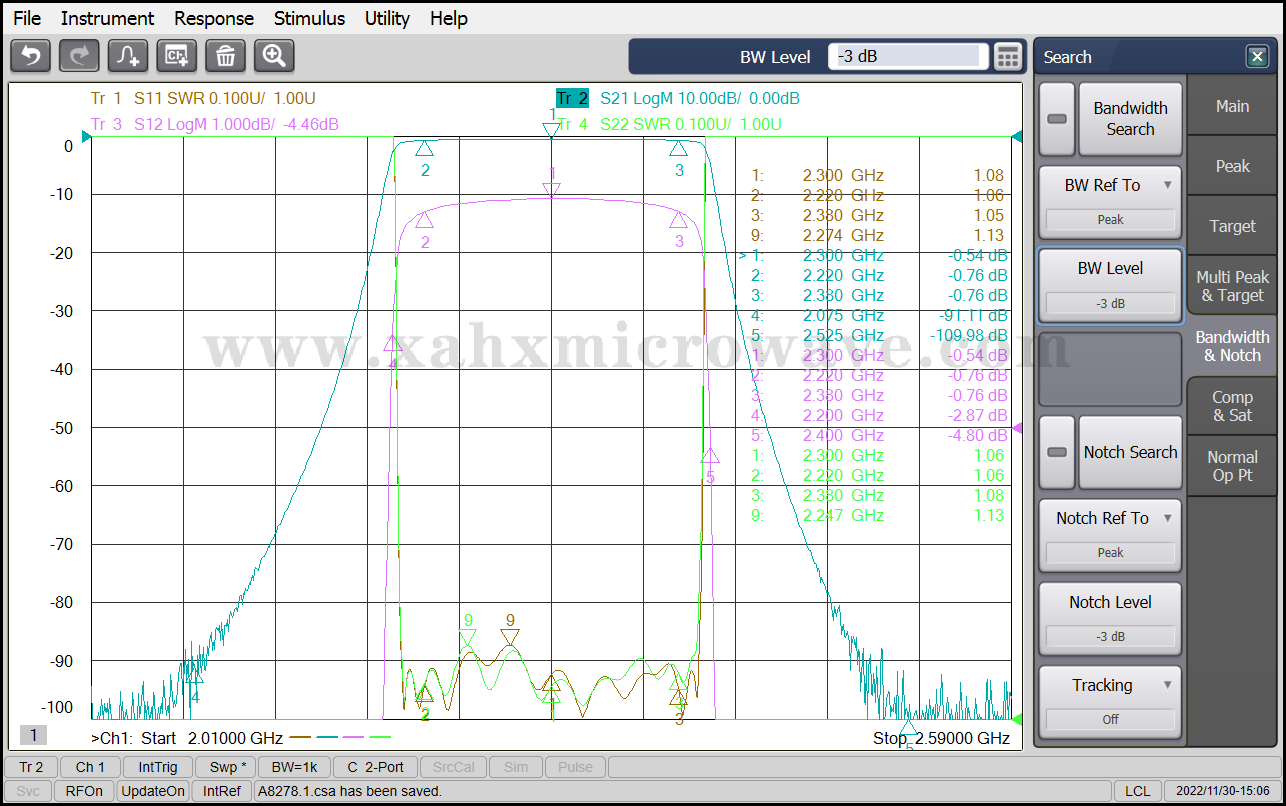

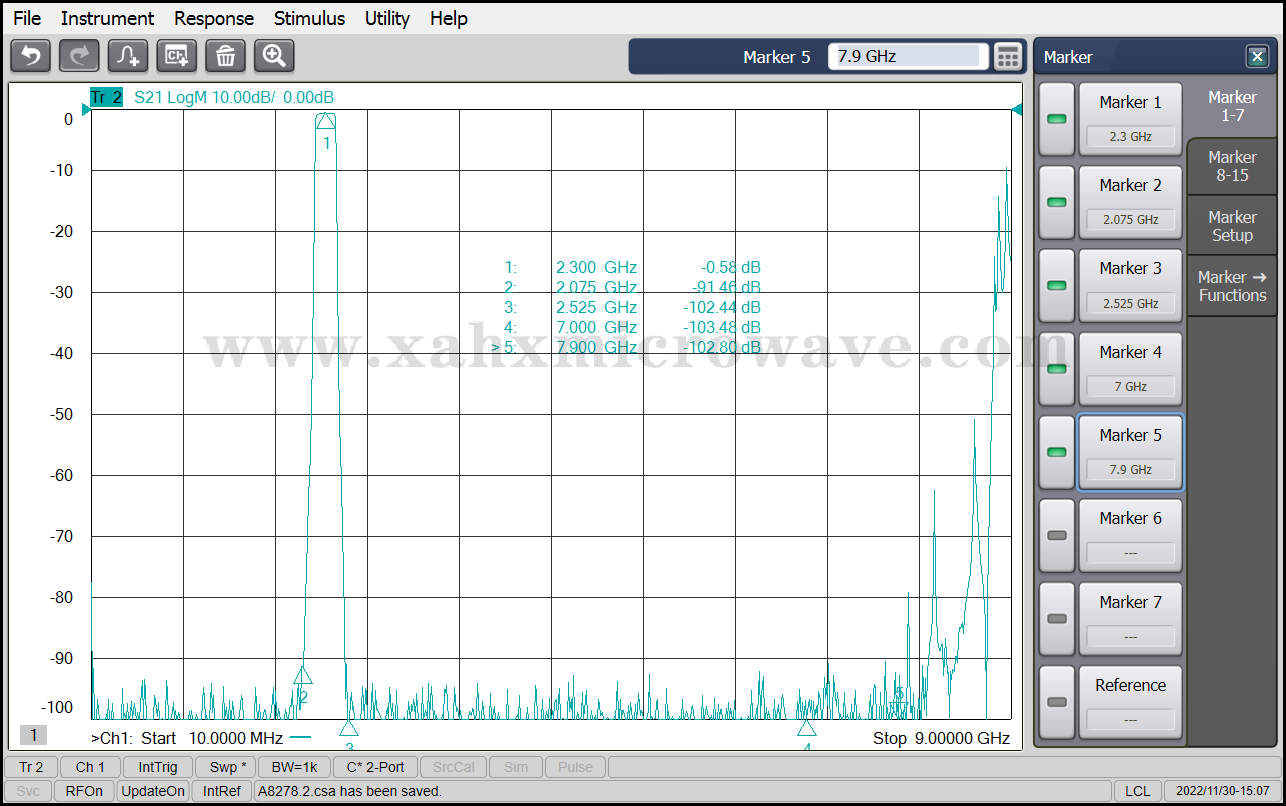

Test Curve
