Technical Data Sheet
●	Center Frequency(F0)	1430MHz
●	3.0dB Bandwidth	10MHz (1425 ~ 1435MHz)
●	Insertion Loss	≤1.5dB @ 1430MHz
		≤1.7dB @ 1428 ~ 1432MHz
●	Return Loss	≥20dB @ 1428 ~ 1432MHz
●	Stop Band Rejection	≥45dB @ DC ~ 1405MHz	≥45dB @ 1455 ~ 6000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	0℃ ~ +50℃

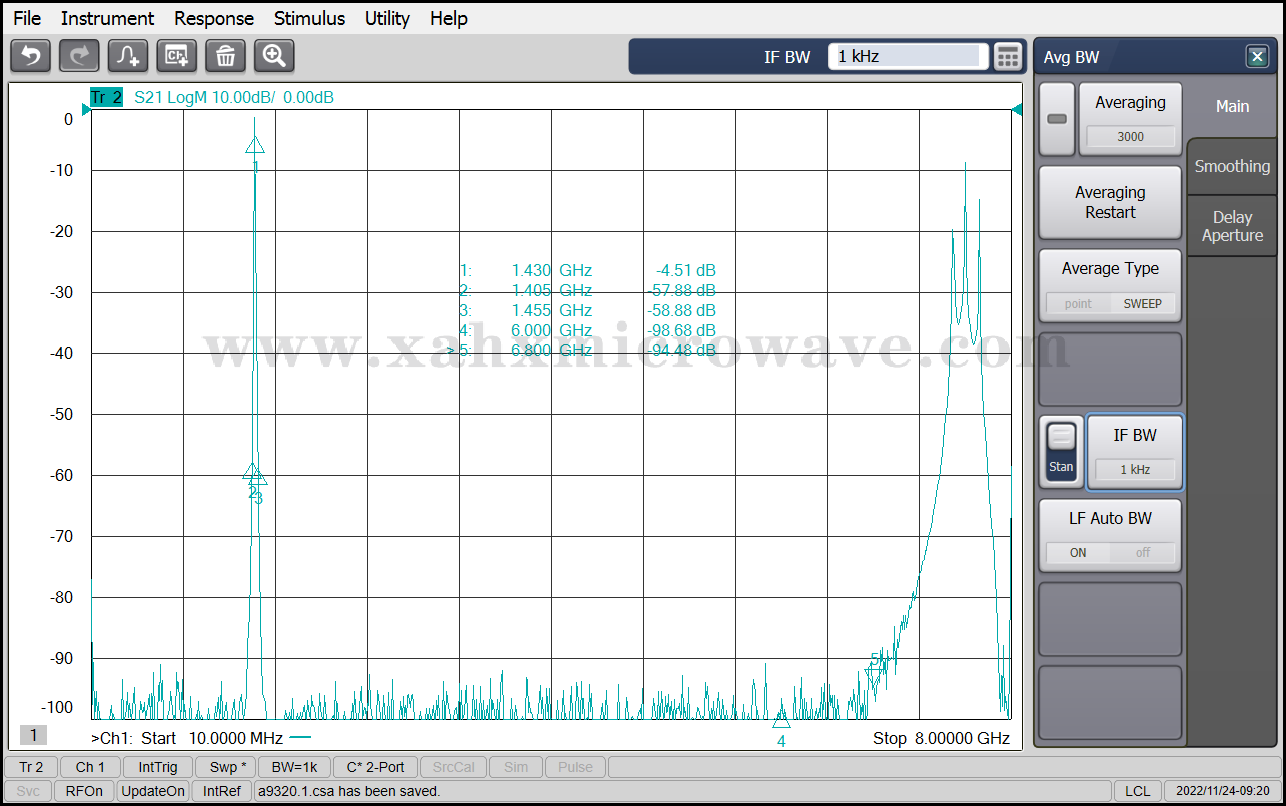

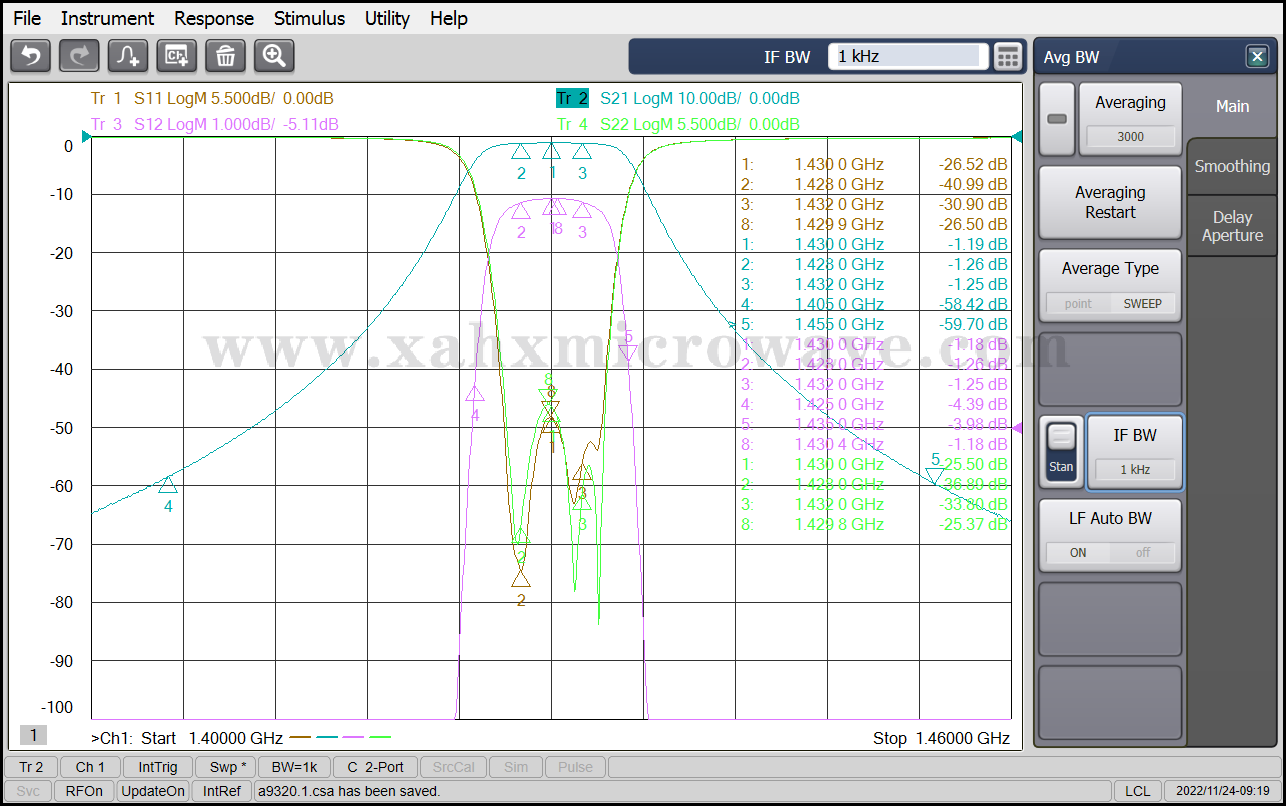

Test Curve
